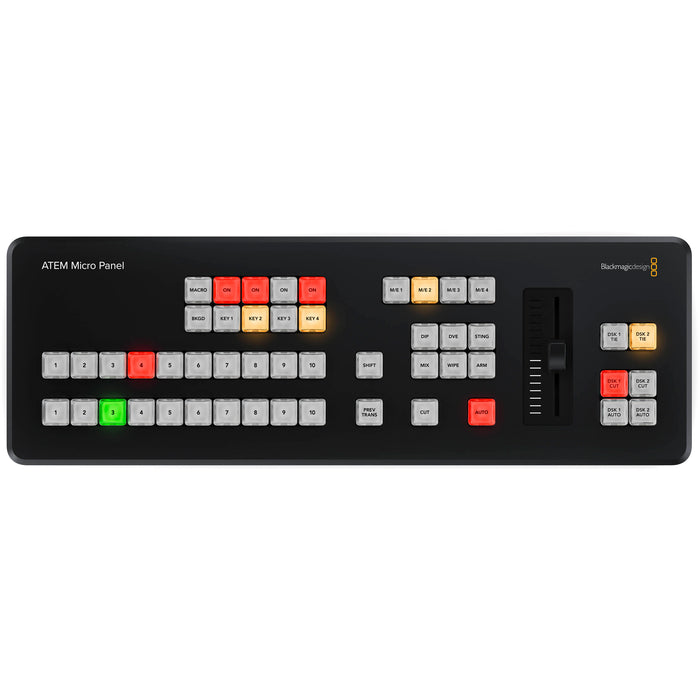

1 M/E Row: Provides a single M/E row for controlling program and preview video sources.

10 Input Buttons: Allows direct switching between sources with 10 cross-point buttons for program and preview.

Shifted Inputs: 20 additional shifted cross-point buttons for extended source selection.

Transition Controls: Includes a transition slider for manual transitions and buttons for DIP, DVE, STINGER, MIX, and WIPE effects.

Key Controls: Dedicated buttons for 4 upstream keyers and 2 downstream keyers to manage graphics and video layers.

Macro Key: 1 macro button for executing pre-programmed functions or automation.

Multi-layer Switching: 4 M/E select buttons for handling multi-layered live productions.

USB-C Connectivity: Connects to ATEM switchers via USB-C, offering flexibility and ease of control.

Bluetooth Connectivity: Built-in Bluetooth 5.1 for wireless communication with ATEM Software Control.

Portable Power: Internal rechargeable battery for portable operation, ideal for on-the-go production environments.

1 M/E Row: Provides a single M/E row for controlling program and preview video sources.

10 Input Buttons: Allows direct switching between sources with 10 cross-point buttons for program and preview.

Shifted Inputs: 20 additional shifted cross-point buttons for extended source selection.

Transition Controls: Includes a transition slider for manual transitions and buttons for DIP, DVE, STINGER, MIX, and WIPE effects.

Key Controls: Dedicated buttons for 4 upstream keyers and 2 downstream keyers to manage graphics and video layers.

Macro Key: 1 macro button for executing pre-programmed functions or automation.

Multi-layer Switching: 4 M/E select buttons for handling multi-layered live productions.

USB-C Connectivity: Connects to ATEM switchers via USB-C, offering flexibility and ease of control.

Bluetooth Connectivity: Built-in Bluetooth 5.1 for wireless communication with ATEM Software Control.

Portable Power: Internal rechargeable battery for portable operation, ideal for on-the-go production environments.

• Mix Effect Row: 1 M/E row for program and preview switching.
• Input Buttons: 10 direct cross-point buttons for program and preview sources.
• Shifted Inputs: 20 additional shifted cross-point buttons for expanded source selection.
• Transition Controls: 1 x transition slider for manual transitions.
• Transition Types: Buttons for DIP, DVE, STINGER, MIX, and WIPE transitions.
• Key Controls: 4 x upstream key buttons and 2 x downstream key buttons.
• Macro Key: 1 x macro button for executing pre-programmed macros.
• M/E Select: 4 x M/E select buttons for multi-layer switching.

Connectivity:

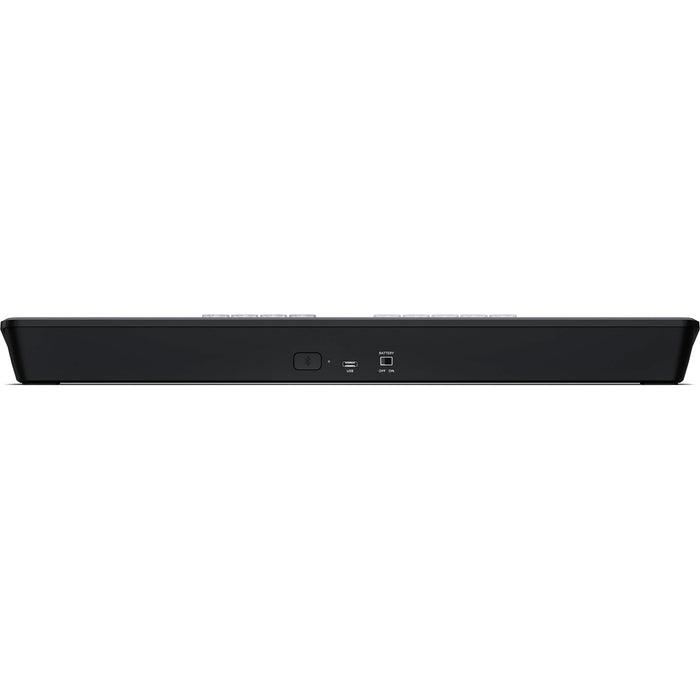

• USB-C Port: 1 x USB-C female input for system connection.
• Bluetooth: Internal Bluetooth 5.1 LE for wireless connection to ATEM Software Control.

Power:

• Battery: Internal rechargeable battery for portable operation.
• Power Switch: Onboard switch to control battery power.

Physical Specifications:

• Dimensions: 16.14 x 5.35 x 1.63 inches (41 x 13.59 x 4.14 cm).
• Weight: 2.31 lb (1.05 kg).
• Operating Conditions: 41 to 104°F (5 to 40°C) with up to 90% humidity.
• Storage Conditions: -4 to 113°F (-20 to 45°C).
