The Blackmagic Design ATEM Mini Extreme ISO is a professional-grade live production switcher featuring eight HDMI inputs, an integrated control panel, and advanced broadcast capabilities. It supports direct live streaming via Ethernet and allows for simultaneous recording of all inputs and the program output. The switcher includes two HDMI outputs, two USB-C ports, a headphone connection, four chroma keyers, six picture-in-picture DVEs, two media players, and a multiview with up to 16 views.

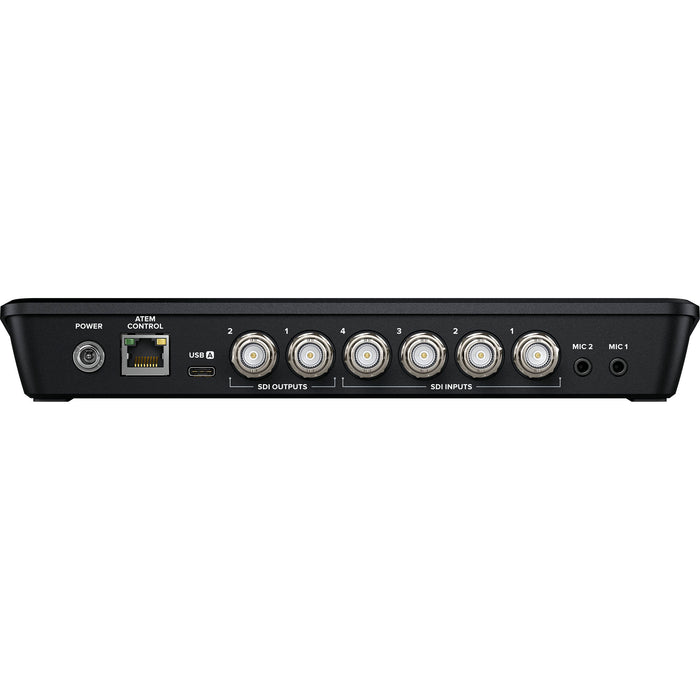

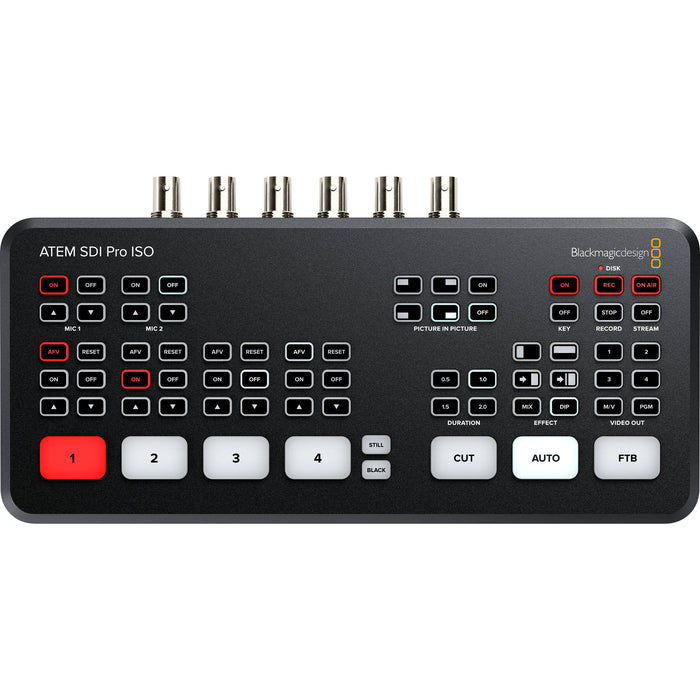

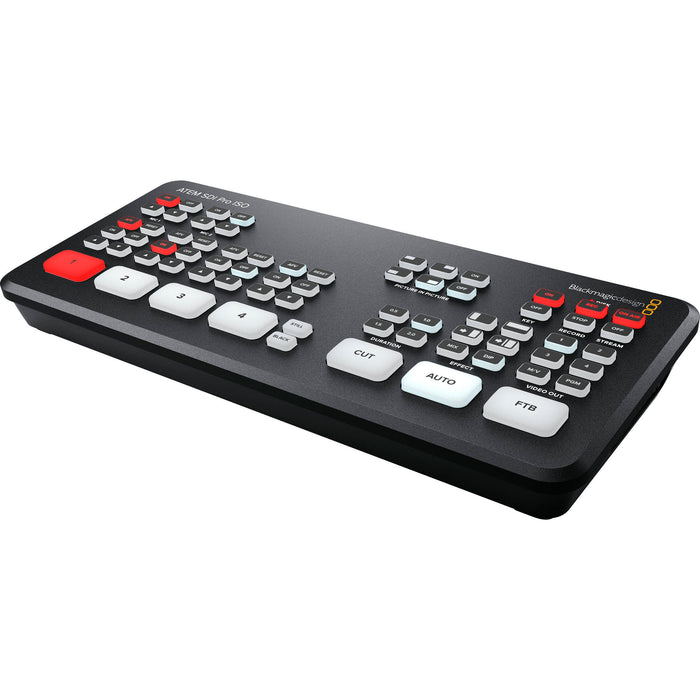

Blackmagic Design ATEM SDI Pro ISO

by Blackmagic Design
Availability:
In stock 3-5 days
$1,185.00 - $1,185.00
$1,185.00
$1,185.00 - $1,185.00
$1,185.00

SKU: SWATEMMXEPBPRISO

The Blackmagic Design ATEM Mini Extreme ISO (model SWATEMMXEPBPRISO) is a professional-grade live production switcher that combines the advanced features of the ATEM Mini Extreme with enhanced recording capabilities. Key features include:

  • Comprehensive ISO Recordingblackmagicdesign.com
  • DaVinci Resolve Project Integrationblackmagicdesign.com

These features make the ATEM Mini Extreme ISO a powerful tool for professionals seeking advanced live production capabilities with robust post-production flexibility.

The Blackmagic Design ATEM Mini Extreme ISO (model SWATEMMXEPBPRISO) is a professional-grade live production switcher that combines the advanced features of the ATEM Mini Extreme with enhanced recording capabilities. Key features include:

  • Comprehensive ISO Recordingblackmagicdesign.com
  • DaVinci Resolve Project Integrationblackmagicdesign.com

These features make the ATEM Mini Extreme ISO a powerful tool for professionals seeking advanced live production capabilities with robust post-production flexibility.

Connections:

  • Total Video Inputs: 8 HDMI Type A, 10-bit HD switchable, each with 2-channel embedded audio.
  • Total Outputs: 4 HDMI outputs.
  • Total Aux Outputs: 2.
  • Total Audio Inputs: 2 x 3.5mm stereo mini jacks.
  • Total Audio Outputs: 1 x 3.5mm stereo mini jack.
  • Video Input Re-Synchronization: Available on all 8 HDMI inputs.
  • Frame Rate and Format Converters: Present on all 8 HDMI inputs.
  • HDMI Program Outputs: 2.
  • Ethernet: Supports 10/100/1000 BaseT for live streaming, software control, software updates, and direct or network panel connection.
  • Computer Interface: 2 x USB Type-C 3.1 Gen 1 ports for external drive recording, webcam output, software control, software updates, and panel connection.

Standards:

  • HD Video Input Standards: 720p50, 720p59.94, 720p60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60; 1080i50, 1080i59.94, 1080i60.
  • HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
  • Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
  • Video Sampling: 4:2:2 YUV.
  • Color Precision: 10-bit.
  • Color Space: Rec 709.

Recording:

  • Direct Recording Video and Audio: USB-C 3.1 Gen 1 expansion port can record directly to external media.
  • Video Recording: Simultaneously records 9 separate H.264 video streams in real-time, capturing clean feeds from all 8 HDMI inputs and the program output.
  • Audio Recording: Records 10 x 2-channel audio inputs as separate 24-bit 48KHz .wav files, including 2 analog 2-channel audio inputs and 8 HDMI 2-channel embedded audio inputs.
  • DaVinci Resolve Project Integration: Automatically saves a DaVinci Resolve project file during recording, allowing for post-production editing.

Audio Mixer:

  • Mixer Configuration: 11-input x 2-channel mixer.
  • Features: Selectable On/Off/Audio-Follow-Video per channel, separate gain control per channel, level and peak metering, and Fairlight audio enhancements, including compressor, gate, limiter, 6 bands of parametric EQ, and master gain control.

Multi-View Monitoring:

  • Multi-View Configuration: Configurable to 16, 13, 10, 7, or 4 up views, including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status, and Audio Meters.

Power Requirements:

  • Power Supply: 1 x External 12V power supply.
  • Power Usage: 36W.

Physical Specifications:

  • Dimensions: 370 mm (Width) x 136.6 mm (Depth) x 39.6 mm (Height).
  • Weight: 1.235 kg.
