8 x 12G-SDI Inputs: Supports multiple video formats in 4K and HD with high-quality SDI input connections.

8 x 12G-SDI Outputs: Multiple outputs for program, preview, and auxiliary feeds, all in 4K resolution.

4K Video Support: Full Ultra HD (UHD) 4K switching and output, ensuring crisp, high-definition visuals for live productions.

Advanced Keying: 4 x upstream keyers for high-quality keying (Chroma, Luma, and Linear keys).

SuperSource Processor: 1 x SuperSource processor for multi-layered compositions and picture-in-picture effects.

2 x Downstream Keyers: For adding graphics or video layers over your live program feed.

Built-in Media Players: 2 media players that allow for storing and triggering video clips, animations, and stills.

Multiview Monitoring: 1 x SDI and 1 x HDMI 2.0 multiview output for monitoring up to 16 sources on a single screen.

Fairlight Audio Mixer: Integrated audio mixer with advanced features, including XLR inputs, MADI support, and real-time audio monitoring.

Direct Streaming Support: Stream live to platforms like YouTube via RTMP using Ethernet or USB-C connection.

Talkback Support: Built-in talkback system for communication between the production team.

Flexible Control Options: Control via ATEM Software Control or optional hardware control panels.

Compact and Rackmountable Design: Suitable for both mobile and studio setups, with space-saving and portable design.

Redundant Power Supply: Dual power inputs for reliability in mission-critical environments.

8 x 12G-SDI Inputs: Supports multiple video formats in 4K and HD with high-quality SDI input connections.

8 x 12G-SDI Outputs: Multiple outputs for program, preview, and auxiliary feeds, all in 4K resolution.

4K Video Support: Full Ultra HD (UHD) 4K switching and output, ensuring crisp, high-definition visuals for live productions.

Advanced Keying: 4 x upstream keyers for high-quality keying (Chroma, Luma, and Linear keys).

SuperSource Processor: 1 x SuperSource processor for multi-layered compositions and picture-in-picture effects.

2 x Downstream Keyers: For adding graphics or video layers over your live program feed.

Built-in Media Players: 2 media players that allow for storing and triggering video clips, animations, and stills.

Multiview Monitoring: 1 x SDI and 1 x HDMI 2.0 multiview output for monitoring up to 16 sources on a single screen.

Fairlight Audio Mixer: Integrated audio mixer with advanced features, including XLR inputs, MADI support, and real-time audio monitoring.

Direct Streaming Support: Stream live to platforms like YouTube via RTMP using Ethernet or USB-C connection.

Talkback Support: Built-in talkback system for communication between the production team.

Flexible Control Options: Control via ATEM Software Control or optional hardware control panels.

Compact and Rackmountable Design: Suitable for both mobile and studio setups, with space-saving and portable design.

Redundant Power Supply: Dual power inputs for reliability in mission-critical environments.

Video Inputs:

• SDI Video Inputs: 8 x 12G-SDI inputs, each supporting 1.5G, 3G, 6G, and 12G SDI rates.
• HDMI Video Outputs: 1 x HDMI 2.0 output.

Audio Inputs:

• Analog Audio Inputs: 2 x XLR balanced analog audio inputs.
• Digital Audio Inputs: 1 x BNC 32-channel MADI digital audio input.
• Additional Audio Inputs: 2 x RCA stereo analog audio inputs, 1 x 5-pin XLR talkback input.

Audio Outputs:

• Analog Audio Outputs: 4 x 1/4-inch jack analog audio outputs.
• Digital Audio Outputs: 1 x BNC 64-channel MADI digital audio output (up to 50 active channels).
• Additional Audio Outputs: 1 x 5-pin XLR talkback output.

Key Features:

• Upstream Keyers: 4 x upstream keyers for keying and compositing.
• Downstream Keyers: 2 x downstream keyers for final keying.
• Advanced Chroma Keyers: 4 x ATEM Advanced Chroma Keyers for high-quality keying.
• SuperSource: 1 x SuperSource processor for multi-layer compositions.
• Linear/Luma Keyers: 7 x linear/luma keyers for various keying effects.
• Transition Keyers: 1 x stinger and 1 x DVE for transitions.
• Pattern Generators: 7 x pattern generators for background effects.
• Color Generators: 2 x color generators for solid color backgrounds.

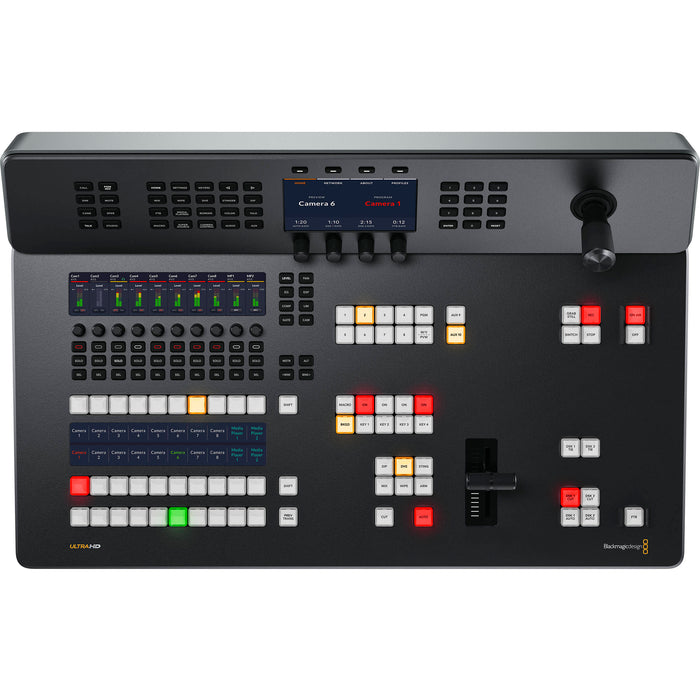

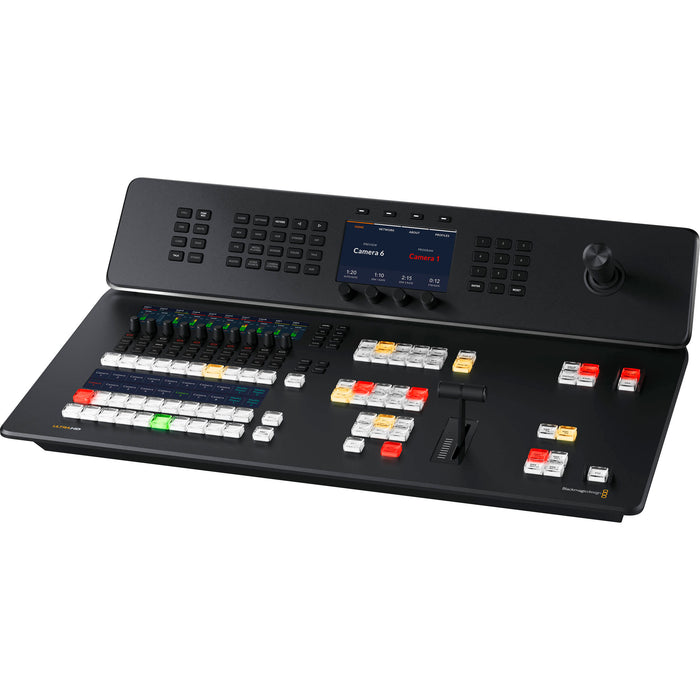

• Control Panel: Integrated control panel with full control of switching and settings.
• Routable Windows: 16 routable windows for flexible source labeling.
• Tally: Red for program and green for preview indication.
• Talkback Support: Yes, with RJ45 for third-party talkback systems.
• Mix Minus Support: Yes.

Streaming and Recording:

• Direct Streaming: Supports direct live streaming using Real-Time Messaging Protocol (RTMP) over Ethernet or a shared internet connection over USB-C.
• Recording: Direct recording of video and audio via USB-C expansion port to external media.
• Video Recording: Program recorded as an H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio.
• Media Format: Supports media formatted in ExFAT (Windows/Mac), APFS, or HFS+ (Mac).

Multiview Monitoring:

• Multiview Outputs: 1 x 12G-SDI and 1 x HDMI 2.0 multiview outputs.
• Multiview Configuration: Configurable to 16, 13, 10, 7, or 4 up views, including monitoring of Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed with optional labels and audio meters.
• Multiview Video Standard: UHD 4K at 60 fps.
• Display Minimum Resolution: 1366 x 768.

Media Player:

• Media Players: 2 x media players.
• Channels: Fill and key for each media player.
• Media Pool Still Image Capacity: 20.
• Media Pool Still Image Formats: PNG, TGA, BMP, GIF, JPEG, and TIFF.
• Media Pool Clip Capacity: 2 x up to 2160p60.
• Media Player Clip Length in 720 HD: 400 frames.
• Media Player Clip Length in 1080 HD: 200 frames.
• Media Pool Video File Format: TGA sequence.
• Media Pool Audio File Formats: WAV, MP3, and AIFF.

Software:

• Control Panel Included: ATEM Software Control Panel included free for macOS 12.0 Monterey, macOS 13.0 Ventura or later, and Windows 10 and 11.
• Software Updates: Using USB or Ethernet connection directly connected to macOS or Windows computers. Includes ATEM Setup Utility.

Operating Systems:

• macOS: 12.0 Monterey, 13.0 Ventura or later.
• Windows: 10 and 11.

Power Requirements:

• Power Supply: 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4-pin XLR 12V DC In for external power supply or battery use.
• Power Usage: 100 W max.

Physical Specifications:

• Physical Installation: Desktop or in-desk mount.
• Operating Temperature: 0° to 40° C (32° to 104° F).
• Storage Temperature: -20°
