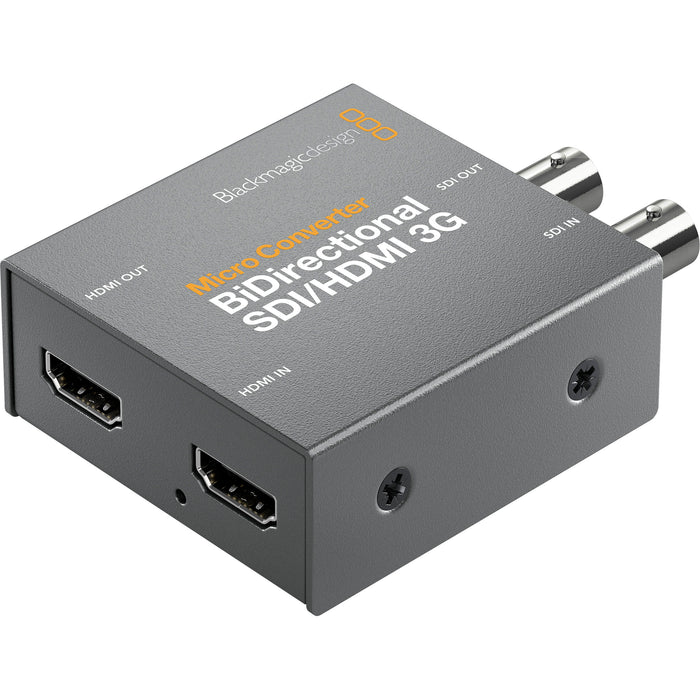

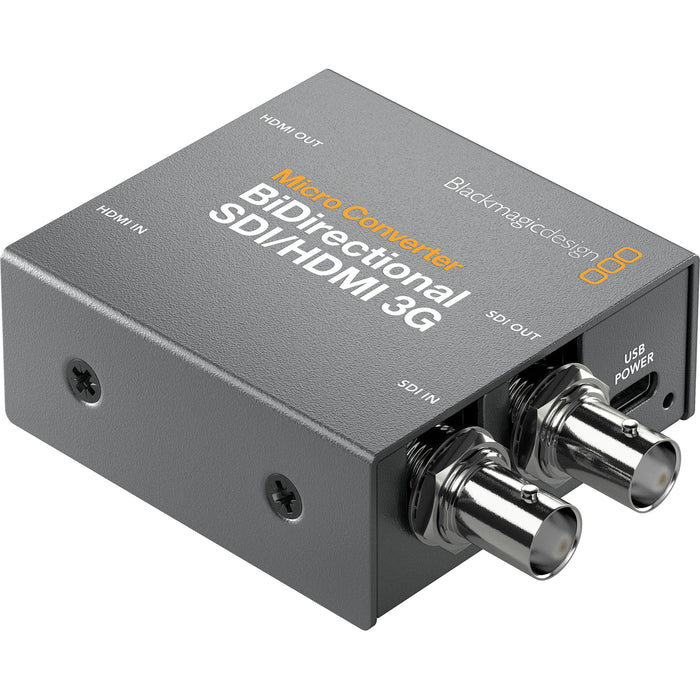

The Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G (CONVBDC/SDI/HDMI03G) is a compact and versatile device designed for professional video signal conversion. Below are its detailed specifications:

Connections:

• SDI Video Inputs: 1 x SD, HD, or 3G-SDI.
• SDI Video Outputs: Automatically matches the HDMI video input.
• HDMI Video Inputs: 1 x HDMI Type A.
• HDMI Video Outputs: 1 x HDMI Type A.
• Multi-Rate Support: Auto-detection of SD or HD.
• Reclocking: Yes.
• USB Interface: 1 x USB Type-C for updates, configurations, and power.

Standards:

• SDI Video Standards:
• SDI Compliance: SMPTE 259M, 292M, 296M, 424M, 425M.
• SDI Video Rates: Automatically switches between SD and HD. User-selectable for Level A or B via setup utility.
• SDI Color Precision: 4:2:2.
• SDI Color Space: YUV.
• HDMI Video Standards:
• HDMI Color Precision: 4:2:2.
• HDMI Color Space: YUV.

Camera Control:

• Supports bidirectional signal conversion for Blackmagic Camera Control and Tally.

Software:

• Control: Mac and Windows software via USB.
• Internal Software Upgrade: Via USB.

Settings Control:

• Via software utility.

Power Requirements:

• Power Consumption: 2.5 W.
• Operational Voltage Range: 4.4 to 5.25V DC.

Environmental Specifications:

• Operating Temperature: 0° to 40° C (32° to 104° F).
• Storage Temperature: -20° to 60° C (-4° to 140° F).
• Relative Humidity: 0% to 90% non-condensing.

Dimensions and Weight:

• Dimensions: Approximately 2.3 x 1.8 x 0.9 inches (5.8 x 4.6 x 2.3 cm).
• Weight: Approximately 4.5 oz (128 g).

These specifications ensure that the Micro Converter BiDirectional SDI/HDMI 3G provides reliable and high-quality signal conversion for various professional video applications.
