Blackmagic Design Streaming Decoder 4K
Availability:
In stock 3-5 days
Original price
$1,423.00
-
Original price
$1,423.00
Original price
$1,423.00
$1,423.00
-
$1,423.00
Current price
$1,423.00
| /
The Blackmagic Design Streaming Decoder 4K is a broadcast-grade IP video receiver engineered to convert live H.264 or H.265 streams into high-quality SDI and HDMI outputs. Designed for professional live production, remote workflows and point-to-point camera links, this unit accepts Ultra HD feeds and enables full remote functionality including tally, talkback and camera control via a 12G-SDI reference input. It supports live streaming protocols like RTMP and SRT and offers USB-C tethering for 4G/5G backup, making it a versatile tool for modern live broadcast environments.
The Key Features of the Blackmagic Design Streaming Decoder 4K:
- Decodes H.264 and H.265 IP streams into SDI and HDMI outputs
- Supports Ultra HD/4Kp60 and large range of HD formats
- 12G-SDI reference input for tally, camera control and talkback return
- USB-C port for phone tethering to 4G/5G networks for streaming backup
- 10/100/1000 BASE-T Ethernet for IP ingest, configuration and updates

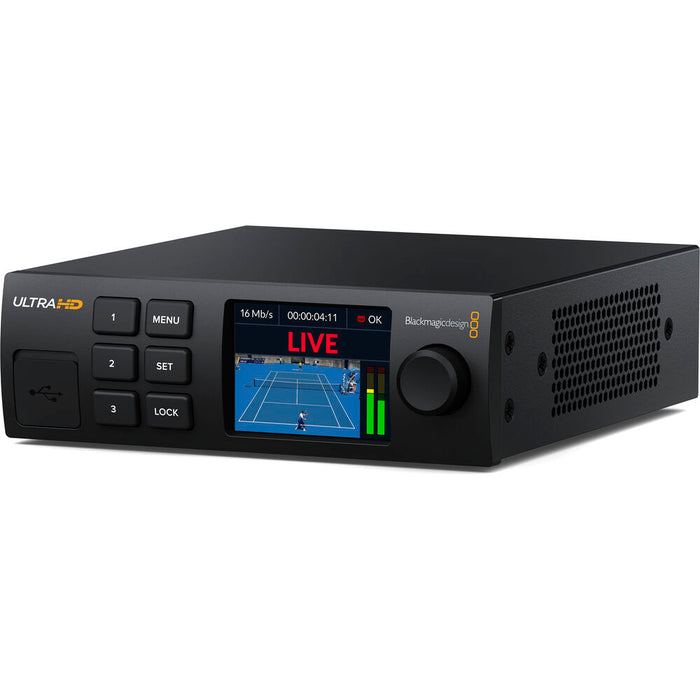

- Built-in 2.2″ colour LCD with front-panel controls (buttons + spin knob)
- Supports wide-colour spaces (Rec. 709 & Rec. 2020) and high-quality embedded audio channels
- Compact 1U rack-mount form factor, suitable for mobile racks and fixed installations
The Detailed Specifications for the Blackmagic Design Streaming Decoder 4K:
- IP Video Decode: H.264 / H.265 up to 4096×2160 (4K) at 23.98 p, 24 p, 25 p, 29.97 p, 30 p, 50 p, 59.94 p, 60 p
- Transport Protocols: RTMP and SRT
- SDI Reference Input: 1 x 12G-SDI (supports 1.5G, 3G, 6G, 12G) – carries tally, talkback, camera control
- SDI Video Outputs: 1 x 12G-SDI Video Out; 1 x 12G-SDI Reference Out (loop-through)
- HDMI Video Output: 1 x HDMI 2.0 capable of 4Kp60
- USB-C Webcam Output: 1 x up to 2160p60 via USB-C
- Ethernet: 10/100/1000 BASE-T for streaming, device config and firmware updates
- SDI Audio Inputs: 16 channels embedded on 12G-SDI Ref In
- SDI Audio Outputs: 16 channels embedded on 12G-SDI Ref Out, 2 channels embedded on 12G-SDI Out
- HDMI Audio Outputs: 8 channels embedded on HDMI Monitor Out
- Video Input Standards (example): HD 720p/1080p, Ultra HD/4K up to 2160p60; DCI 4K formats 4Kp23.98–4Kp60
- Colour Spaces: Rec. 709 and Rec. 2020 supported
- Control Interfaces: Front panel (6 buttons + spin knob + LCD display), USB-C, Ethernet REST API
- Physical Installation: 1 U rack-mount shelf width (one-third rack width), compact size approx. 6.9" × 5.5" × 1.75" (17.5 × 14 × 4.45 cm) and weight ~1.66 lb (753 g)
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage Temperature: -20 °C to 45 °C (-4 °F to 113 °F); Relative Humidity: 0%-90% non-condensing
- Power: Internal 100-240 V AC supply or optional 12 V DC input; typical power consumption ~25 W
