Conversion Capabilities: Performs 1,089 different conversions between SD, HD, and Ultra HD formats, including up, down, and cross conversions.

SDI and HDMI Connectivity: Equipped with 12G-SDI, 6G-SDI, and HDMI 2.0a inputs and outputs for flexible signal routing.

Audio Support: Handles up to 16 channels of embedded SDI audio and 8 channels via HDMI; supports Dolby AC-3 pass-through in all conversions.

Analog Audio: Includes XLR connectors for balanced analog audio and RCA connectors for unbalanced analog audio.

Optical Fiber Connectivity: Optional SMPTE optical fiber module for long-distance video and audio transmission.

High-Quality Processing: Utilizes 10-bit image processing with advanced de-interlacing and optical scaling algorithms for superior video quality.

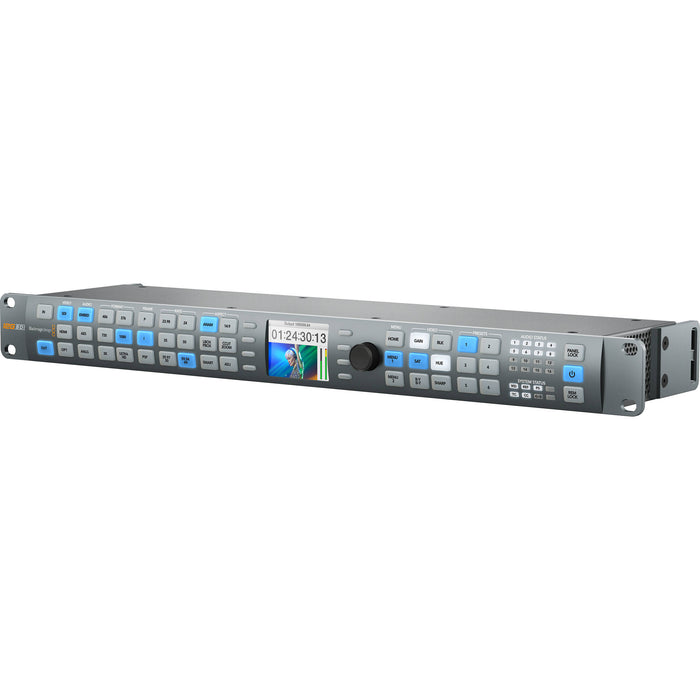

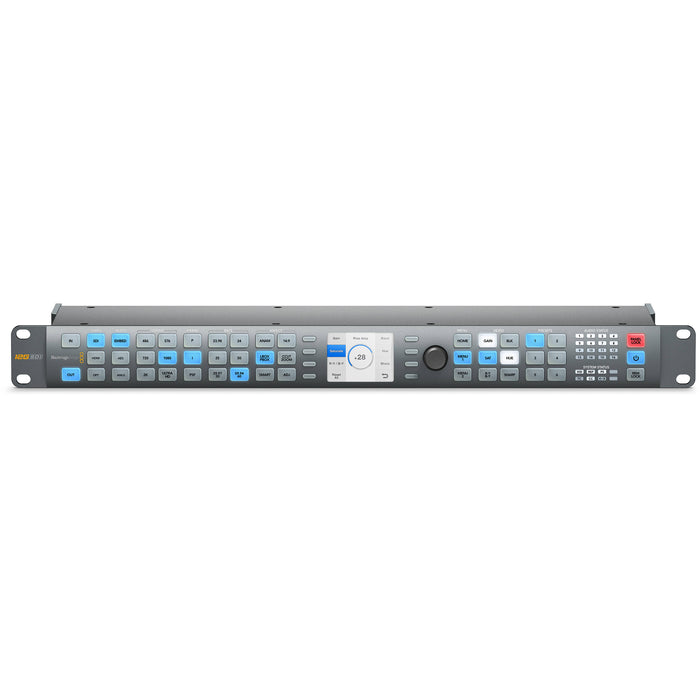

Control Interface: Features an illuminated control panel with an LCD screen for easy operation and menu navigation.

Versatile Sync & Reference Inputs: Supports Blackburst and TriSync for accurate synchronization in various broadcast environments.

Remote Control Options: Includes USB and Gigabit Ethernet ports for software updates and remote control.

Compact and Durable: Rack-mountable design suitable for both studio and live broadcast applications.

Conversion Capabilities: Performs 1,089 different conversions between SD, HD, and Ultra HD formats, including up, down, and cross conversions.

SDI and HDMI Connectivity: Equipped with 12G-SDI, 6G-SDI, and HDMI 2.0a inputs and outputs for flexible signal routing.

Audio Support: Handles up to 16 channels of embedded SDI audio and 8 channels via HDMI; supports Dolby AC-3 pass-through in all conversions.

Analog Audio: Includes XLR connectors for balanced analog audio and RCA connectors for unbalanced analog audio.

Optical Fiber Connectivity: Optional SMPTE optical fiber module for long-distance video and audio transmission.

High-Quality Processing: Utilizes 10-bit image processing with advanced de-interlacing and optical scaling algorithms for superior video quality.

Control Interface: Features an illuminated control panel with an LCD screen for easy operation and menu navigation.

Versatile Sync & Reference Inputs: Supports Blackburst and TriSync for accurate synchronization in various broadcast environments.

Remote Control Options: Includes USB and Gigabit Ethernet ports for software updates and remote control.

Compact and Durable: Rack-mountable design suitable for both studio and live broadcast applications.

SDI Video Input:

1 x 12G-SDI, 10-bit (SD, HD, 3G, 6G, and 12G switchable)

1 x 6G-SDI, 10-bit (SD, HD, 3G, and 6G switchable); usable as dual link input for 4:2:2 3G or 6G

SDI Video Output:

1 x 12G-SDI, 10-bit (SD, HD, 3G, 6G, and 12G switchable)

1 x 6G-SDI, 10-bit (SD, HD, 3G, and 6G switchable); usable as dual link output for 4:2:2 3G or 6G

HDMI Video Input/Output:

1 x HDMI 2.0a type A connector (YUV or RGB, auto-switching)

1 x HDMI 2.0a type A connector (Active Input loop)

1 x HDMI 2.0a type A connector (YUV or RGB, user-selectable)

SDI Audio Input/Output:

16 channels of embedded SDI audio

HDMI Audio Input/Output:

8 channels in SD, HD, 3G HD, 2K, and Ultra HD

Analog Audio Input:

2 x XLR - 2 channels professional balanced analog audio (shared with AES/EBU inputs)

2 x RCA - stereo unbalanced analog audio on RCA connectors for consumer equipment

AES/EBU Digital Audio Input:

2 x XLR - 2 pairs (4 channels) professional 110Ω balanced digital audio (shared with analog inputs)

Optical Fiber Connection (optional):

1 x SMPTE optical fiber SFP socket

Sync Input:

Blackburst in SD or TriSync HD

Reference Input:

1 x BNC - Black Burst in SD or Tri-level sync in HD

Reference Output:

1 x BNC - Internal reference generator providing blackburst or tri-level sync output at the current output frame rate

Computer Interface:

1 x USB type C port for software updates

1 x RJ45 Gigabit Ethernet for remote control and configuration

Processor Interface:

Illuminated pushbuttons, status LEDs, and LCD with easy-to-use on-screen menus

Supported Operating Systems:

Mac OS X 10.7 Lion or later

Windows 7 and Windows 8

Dimensions:

19.0 x 1.75 x 4.6 inches (48.3 x 4.5 x 11.7 cm)

Weight:

3.20 lb (1.45 kg)
