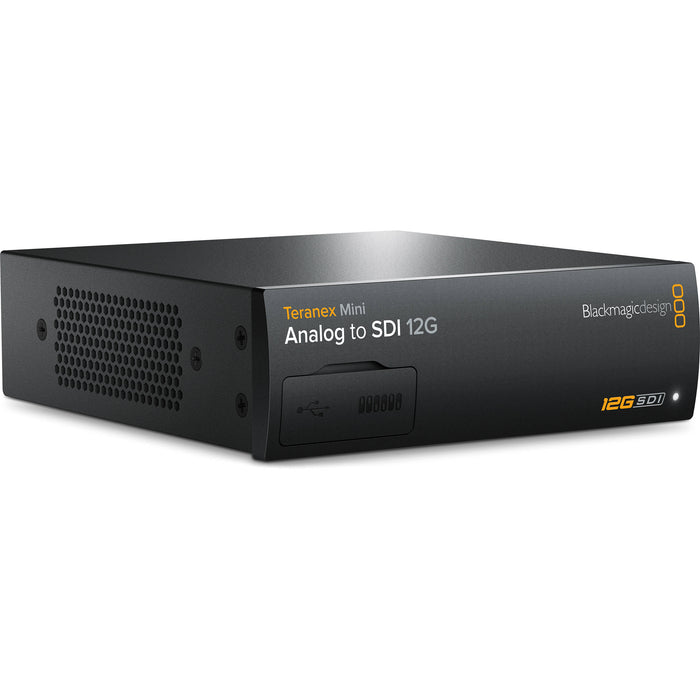

The Blackmagic Design Teranex Mini Analog to SDI 12G Converter (model CONVNTRM/BB/ANSDI) offers the following features:

• 12G-SDI Supportblackmagicdesign.com
• Analog Video Inputsblackmagicdesign.com
• Dual 12G-SDI Outputsbhphotovideo.com
• XLR Audio Inputsbhphotovideo.com
• Ethernet Control and PoEbhphotovideo.com
• Intelligent Thermal Designblackmagicdesign.com
• Optional Smart Front Panelblackmagicdesign.com
• Built-in Power Supplyblackmagicdesign.com

These features make the Teranex Mini Analog to SDI 12G Converter a versatile and reliable solution for professional video conversion needs.

The Blackmagic Design Teranex Mini Analog to SDI 12G Converter (model CONVNTRM/BB/ANSDI) offers the following features:

• 12G-SDI Supportblackmagicdesign.com
• Analog Video Inputsblackmagicdesign.com
• Dual 12G-SDI Outputsbhphotovideo.com
• XLR Audio Inputsbhphotovideo.com
• Ethernet Control and PoEbhphotovideo.com
• Intelligent Thermal Designblackmagicdesign.com
• Optional Smart Front Panelblackmagicdesign.com
• Built-in Power Supplyblackmagicdesign.com

These features make the Teranex Mini Analog to SDI 12G Converter a versatile and reliable solution for professional video conversion needs.

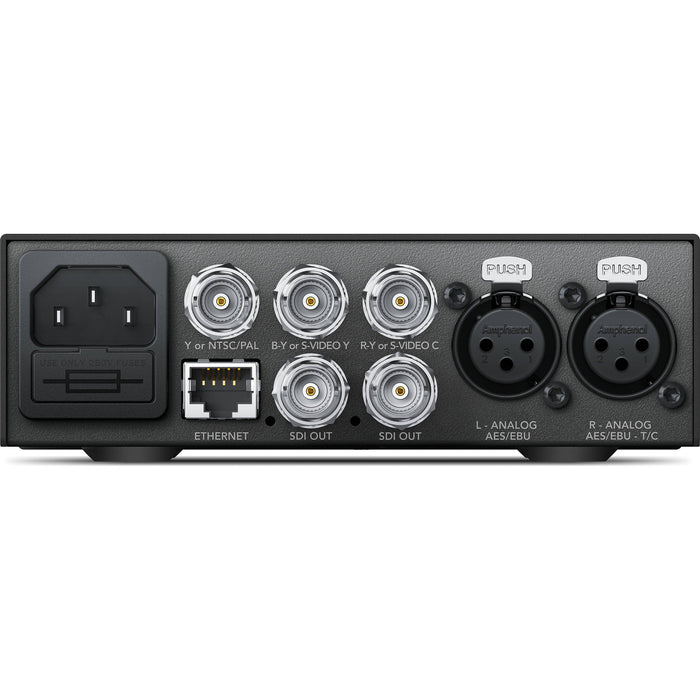

Connections:

• Analog Video Inputs: Component, S-Video, and composite.
• SDI Video Outputs: 2 x 12G-SDI outputs, supporting SD, HD, and Ultra HD formats up to 2160p60.
• Analog Audio Inputs: 2 channels of professional balanced analog audio via XLR connectors; the right XLR can be configured for timecode input.
• Digital Audio Inputs: 4 channels of professional 110Ω balanced digital audio via XLR connectors; the right XLR can be configured for timecode input.
• Embedded Audio Support: 16 channels.
• Multi-Rate Support: Automatic switching between SD, HD, and Ultra HD formats.
• Updates and Configuration: Accessible via USB or Ethernet.
• Reclocking: Supported.

Supported Video Standards:

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL.
• HD Video Standards: 720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.

SDI Compliance:

• SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, and SMPTE 2082-10.

SDI Video Rates:

• Auto-switching between standard definition SDI, high definition 3G-SDI, 6G-SDI, and 12G-SDI.

SDI Video Sampling:

• 4:2:2.

SDI Audio Sampling:

• Television standard sample rate of 48 kHz and 24-bit.

SDI Color Precision:

• YUV 4:2:2 and RGB 4:4:4 in HD and 4K.

SDI Color Space:

• REC 601, REC 709.

Software:

• Software Control: Mac™ and Windows™ software upgrade via USB and Ethernet.
• Internal Software Upgrade: Via included updater application.

Operating Systems:

• Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
• Windows 10, 64-bit.

Settings Control:

• Basic Settings Control: Mini switches, USB, and Ethernet via free software utility.
• Optional Front Panel Control: Front-mounted Smart Panel with LCD, rotary knob, and six settings buttons.

Power Requirements:

• Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC power cable required. 100 - 240V AC input.
• Power Over Ethernet: Can be powered via 48V DC using PoE+ (Power over Ethernet).
• Power Consumption: 16 Watts.
• Operational Voltage Range: 100 - 240V AC.

Physical Specifications:

• Dimensions: 5.5 x 1.8 x 6.7 inches (14 x 4.6 x 17 cm) including connectors.
• Weight: 1.5 lbs (0.7 kg).

Environmental Specifications:

• Operating Temperature: 0° to 40°C (32° to 104°F).
• Storage Temperature: -20° to 60°C (-4° to 140°F).
• Relative Humidity: 0% to 90% non-condensing.

What's Included:

• Teranex Mini Analog to SDI 12G.
• Welcome wallet with QR code for software download.

Warranty:

• 3-Year Limited Manufacturer’s Warranty.
