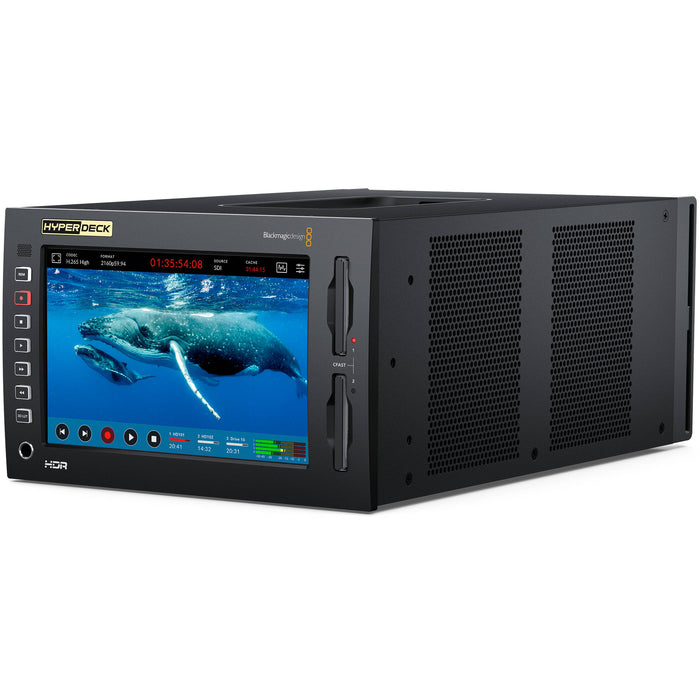

Key Features:

• Recording and Playback: Supports H.265 and ProRes files in SD, HD, and Ultra HD up to 2160p60.
• Media Storage: 2 x CFast 2.0 card slots and USB Type-C 3.1 Gen 2 port for external recording.
• Connectivity: 12G-SDI and HDMI 2.0 inputs/outputs, plus analog connections.
• Control Interface: 7-inch capacitive touchscreen LCD and physical deck controls with search dial.
• Audio: 16 channels embedded audio via SDI, 8 channels via HDMI, 4 x 3-pin XLR audio inputs/outputs.
• Power Supply: 100-240V AC internal power, 4-pin XLR 12V DC input for external power.
• Design: Compact 3RU, 5.5 lbs (2.5 kg), 1/2 rack width.
• Environmental: Operating Temp: 0° to 40° C; Storage Temp: -20° to 60° C; Humidity: 0% to 90%.

Key Features:

• Recording and Playback: Supports H.265 and ProRes files in SD, HD, and Ultra HD up to 2160p60.
• Media Storage: 2 x CFast 2.0 card slots and USB Type-C 3.1 Gen 2 port for external recording.
• Connectivity: 12G-SDI and HDMI 2.0 inputs/outputs, plus analog connections.
• Control Interface: 7-inch capacitive touchscreen LCD and physical deck controls with search dial.
• Audio: 16 channels embedded audio via SDI, 8 channels via HDMI, 4 x 3-pin XLR audio inputs/outputs.
• Power Supply: 100-240V AC internal power, 4-pin XLR 12V DC input for external power.
• Design: Compact 3RU, 5.5 lbs (2.5 kg), 1/2 rack width.
• Environmental: Operating Temp: 0° to 40° C; Storage Temp: -20° to 60° C; Humidity: 0% to 90%.

Key Specifications:

Video Inputs and Outputs:

• 1 x 12G-SDI input and 1 x 12G-SDI output
• 1 x HDMI 2.0 input and 1 x HDMI 2.0 output
• Supports SD, HD, and Ultra HD up to 2160p60

Audio:

• 16 channels of embedded audio via SDI
• 8 channels of embedded audio via HDMI
• 4 x 3-pin XLR analog audio inputs and 4 x 3-pin XLR outputs
• Supports 24-bit, 48 kHz audio

Media Storage:

• 2 x CFast 2.0 card slots
• 1 x USB Type-C 3.1 Gen 2 port for external recording
• Supports ExFAT and HFS+ file systems

Supported Codecs:

• ProRes 422 HQ, 422, 422 LT, 422 Proxy
• DNxHD 220x, 145, 45
• H.264 High, Medium, Low

Control:

• 7-inch capacitive touchscreen LCD
• Physical deck controls with search dial
• RS-422 remote via 9-pin D-sub
• 10G Ethernet for FTP file transfers

Power Requirements:

• 100-240V AC internal power supply
• 4-pin XLR 12V DC input for external power
• Power usage: 100W max

Physical Dimensions:

• 3RU (5.25 inches) height, 1/2 rack width
• Weight: 5.5 lbs (2.5 kg)

Environmental Specifications:

• Operating Temp: 0° to 40° C (32° to 104° F)
• Storage Temp: -20° to 60° C (-4° to 140° F)
• Humidity: 0% to 90% non-condensing
