Key Features:

• Recording and Playback: Supports H.265 and ProRes files in SD, HD, Ultra HD, and 8K up to 4320p60.
• Media Storage: 2 x CFast 2.0 card slots and 1 x USB Type-C 3.1 Gen 2 port for external recording.
• Connectivity: Quad 12G-SDI I/O, HDMI 2.0 I/O, and analog connections for archiving.
• Control Interface: 7-inch capacitive touchscreen LCD and physical deck controls with search dial.
• Audio: 64 channels embedded audio via SDI, 8 channels via HDMI, 4 x 3-pin XLR analog audio inputs/outputs.
• Power Supply: Internal 100-240V AC power, 4-pin XLR 12V DC input for external power/battery.
• Design: 3RU (5.25") height, 1/2 rack width, weight: 5.5 lbs (2.5 kg).
• Environmental: Operating Temp: 0° to 40° C, Storage Temp: -20° to 60° C, Humidity: 0% to 90% non-condensing.

Key Features:

Recording and Playback: Supports H.265 and ProRes files in SD, HD, Ultra HD, and 8K up to 4320p60.

Media Storage: 2 x CFast 2.0 card slots and 1 x USB Type-C 3.1 Gen 2 port for external recording.

Connectivity: Quad 12G-SDI I/O, HDMI 2.0 I/O, and analog connections for archiving.

Control Interface: 7-inch capacitive touchscreen LCD and physical deck controls with search dial.

Audio: 64 channels embedded audio via SDI, 8 channels via HDMI, 4 x 3-pin XLR analog audio inputs/outputs.

Power Supply: Internal 100-240V AC power, 4-pin XLR 12V DC input for external power/battery.

Design: 3RU (5.25") height, 1/2 rack width, weight: 5.5 lbs (2.5 kg).

Environmental: Operating Temp: 0° to 40° C, Storage Temp: -20° to 60° C, Humidity: 0% to 90% non-condensing.

Key Specifications:

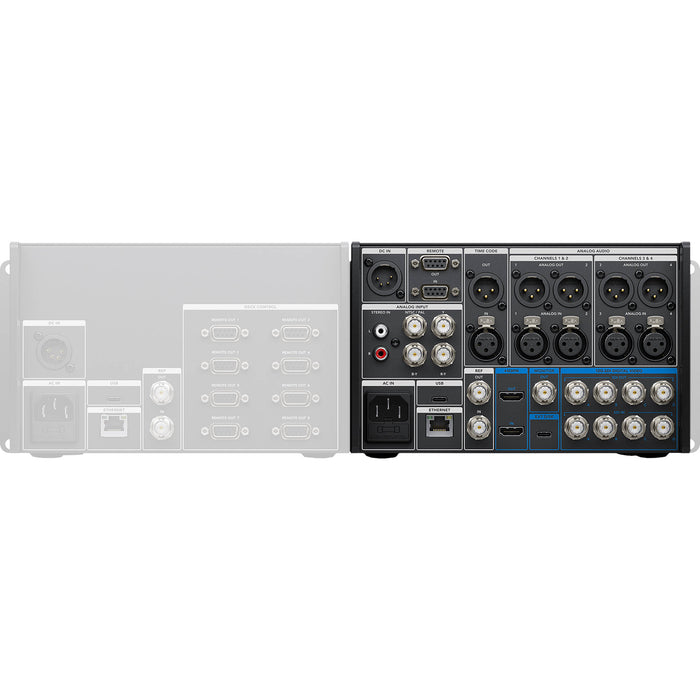

Video Inputs and Outputs:

• 4 x 12G-SDI inputs and 5 x 12G-SDI outputs (12G-SDI A, B, C, D, and 3G-SDI Monitor Out)
• 1 x HDMI 2.0 input and 1 x HDMI 2.0 output
• 1 x Component YUV analog input (3 BNC connectors)
• 1 x Composite NTSC/PAL analog input (1 BNC connector)
• Supports SD, HD, Ultra HD, and 8K video standards up to 4320p60

Audio:

• 64 channels of embedded audio via SDI
• 8 channels of embedded audio via HDMI
• 4 x 3-pin XLR analog audio inputs and 4 x 3-pin XLR analog audio outputs
• Supports 24-bit, 48 kHz audio sampling

Media Storage:

• 2 x CFast 2.0 card slots for recording
• 1 x USB Type-C 3.1 Gen 2 port for external disk recording
• Supports ExFAT and HFS+ file systems

Supported Codecs:

• ProRes 422 HQ, 422, 422 LT, 422 Proxy
• DNxHD 220x, 145, 45
• H.265 High, Medium, Low

Control:

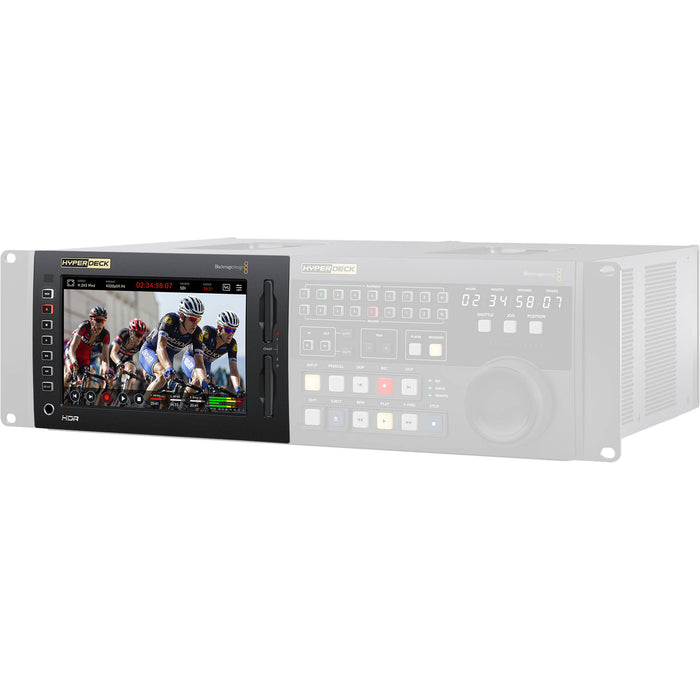

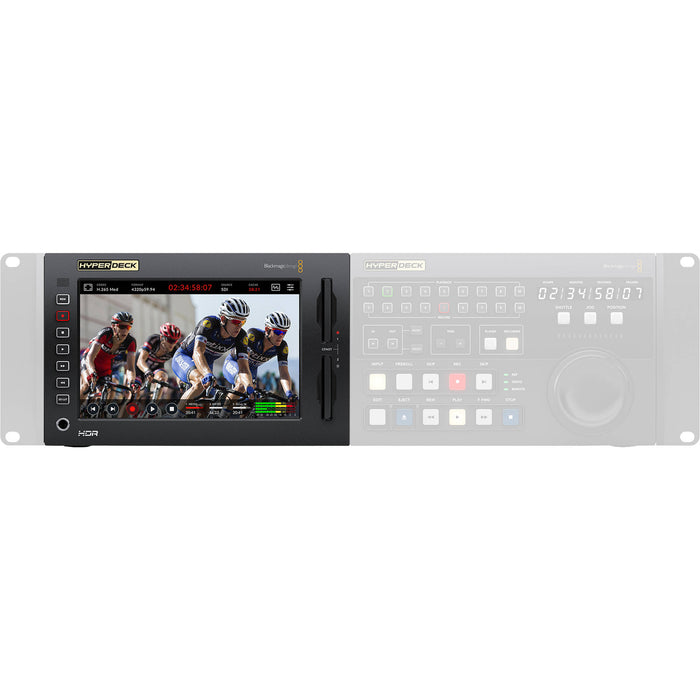

• Built-in 7-inch capacitive touchscreen LCD for monitoring and control
• Physical deck controls with a large search dial
• RS-422 remote control via 9-pin D-sub
• 10G Ethernet for FTP file transfers

Power Requirements:

• Internal 100-240V AC power supply
• 4-pin XLR 12V DC input for external power or battery use
• Power usage: 100W max

Physical Dimensions:

• Dimensions: 3RU (5.25 inches) height, 1/2 rack width
• Weight: 5.5 lbs (2.5 kg)

Environmental Specifications:

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing
