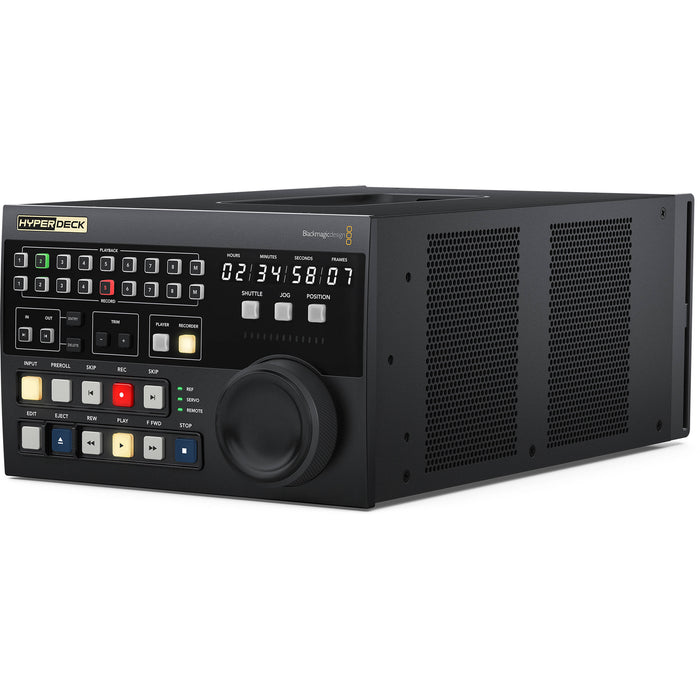

Blackmagic HyperDeck Extreme Control with 8 RS-422 ports, Tri-Sync reference input, 1Gb Ethernet, 4-pin XLR power, and 3RU rack compatibility.

Blackmagic HyperDeck Extreme Control

by Blackmagic Design
Availability:
In stock 3-5 days
$1,935.00 - $1,935.00
$1,935.00
$1,935.00 - $1,935.00
$1,935.00

SKU: HYPERD/RSTEXCTR

Key Features:

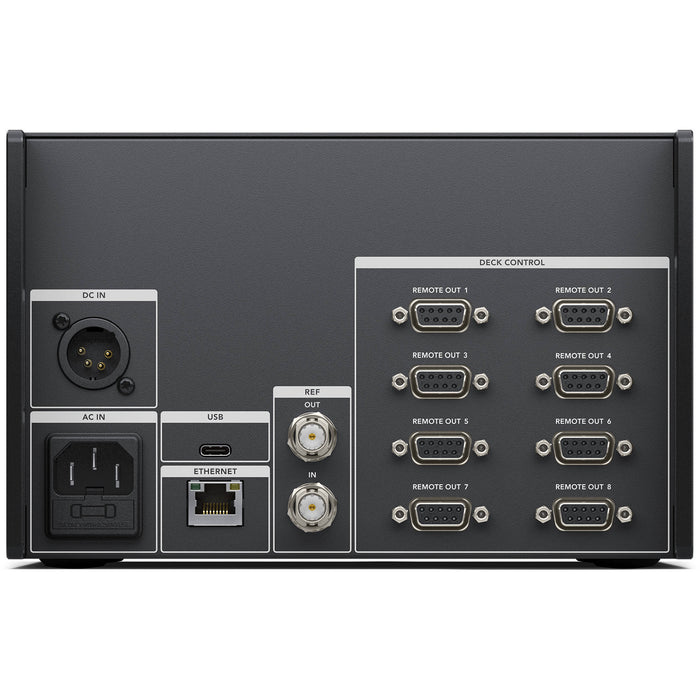

  • Deck Control Outputs: 8 x RS-422 ports for controlling up to 8 decks.
  • Reference Input: Tri-Sync or Black Burst input for synchronization.
  • Reference Output: Passes through the reference input signal.
  • Ethernet: 1Gb/s Ethernet connection for network communication.
  • Power Supply: Internal 100-240V AC power supply, 4-pin XLR 12V DC input for external power or battery.
  • Operating Temperature: 0° to 40° C (32° to 104° F).
  • Storage Temperature: -20° to 60° C (-4° to 140° F).
  • Relative Humidity: 0% to 90% non-condensing.
  • Rack Compatibility: 3RU, half rack width.
  • Dimensions: 8.3 x 5.1 x 13.8 inches (21 x 13 x 35 cm).
  • Weight: 3.5 lbs (1.6 kg).

Key Features:

  • Deck Control Outputs: 8 x RS-422 ports for controlling up to 8 decks.
  • Reference Input: Tri-Sync or Black Burst input for synchronization.
  • Reference Output: Passes through the reference input signal.
  • Ethernet: 1Gb/s Ethernet connection for network communication.
  • Power Supply: Internal 100-240V AC power supply, 4-pin XLR 12V DC input for external power or battery.
  • Operating Temperature: 0° to 40° C (32° to 104° F).
  • Storage Temperature: -20° to 60° C (-4° to 140° F).
  • Relative Humidity: 0% to 90% non-condensing.
  • Rack Compatibility: 3RU, half rack width.
  • Dimensions: 8.3 x 5.1 x 13.8 inches (21 x 13 x 35 cm).
  • Weight: 3.5 lbs (1.6 kg).

Key Specifications:

Deck Control Outputs:

  • 8 x RS-422 ports for controlling up to 8 separate decks.

Reference Input:

  • Tri-Sync or Black Burst input for synchronization.

Reference Output:

  • Passes through the reference input signal.

Ethernet:

  • 1Gb/s Ethernet connection for network communication.

Power Supply:

  • Internal 100-240V AC power supply.
  • 4-pin XLR 12V DC input for external power or battery use.

Operating Temperature:

  • 0° to 40° C (32° to 104° F).

Storage Temperature:

  • -20° to 60° C (-4° to 140° F).

Relative Humidity:

  • 0% to 90% non-condensing.

Rack Compatibility:

  • 3 RU, half rack width.

Dimensions:

  • 8.3 x 5.1 x 13.8 inches (21 x 13 x 35 cm).

Weight:

  • 3.5 lbs (1.6 kg).
