Key Features:

• Recording and Playback: Supports H.264, ProRes, and DNxHD files for versatile production needs.
• Media Storage: Uses SD cards, UHS-II cards, and USB-C disks for flexible storage.
• Connectivity: HDMI input/output for easy connection to cameras, switchers, and monitors.

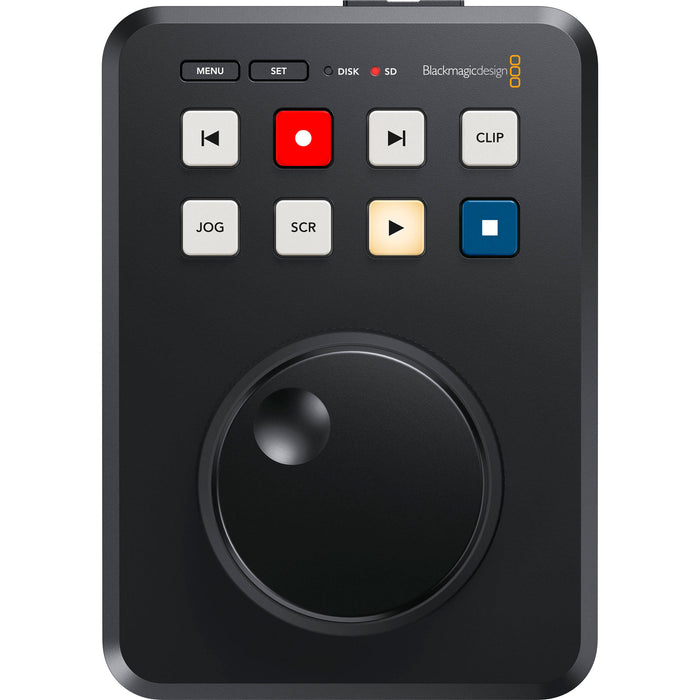

• Control Interface: Large search dial and broadcast deck controls for easy operation.
• Teleprompter Functionality: Built-in teleprompter for script display directly from the device.
• Network File Transfers: FTP support for remote file uploads and media management.
• Power Supply: 12V DC power input with included power supply.
• Design: Compact and portable, fits in road cases or backpacks for on-the-go production.

Key Features:

• Recording and Playback: Supports H.264, ProRes, and DNxHD files for versatile production needs.
• Media Storage: Uses SD cards, UHS-II cards, and USB-C disks for flexible storage.
• Connectivity: HDMI input/output for easy connection to cameras, switchers, and monitors.
• Control Interface: Large search dial and broadcast deck controls for easy operation.
• Teleprompter Functionality: Built-in teleprompter for script display directly from the device.
• Network File Transfers: FTP support for remote file uploads and media management.
• Power Supply: 12V DC power input with included power supply.
• Design: Compact and portable, fits in road cases or backpacks for on-the-go production.

Key Specifications:

Video Inputs and Outputs:

• 1 x HDMI input
• 1 x HDMI output
• Supports SD/HD video standards (525i59.94 NTSC, 625i50 PAL, 720p, 1080i/p, 2Kp DCI).

Audio:

• 8 channels of embedded audio via HDMI
• 24-bit, 48 kHz audio sampling

Media Storage:

• 1 x SD card slot
• 1 x USB Type-C 3.0 port
• Compatible with UHS-I/UHS-II SD cards
• Supports ExFAT and HFS+ file systems

Supported Codecs:

• ProRes HQ, 422, LT, Proxy (up to 1080p60)
• DNxHD 220x, 145, 45 (720p/1080p HD, up to 60fps)
• H.264 High, Medium, Low (up to 1080p60)

Control:

• Built-in control panel with 10 buttons and search dial
• External control via HDMI start/stop, timecode, and Ethernet protocol
• Supports remote FTP file upload

Software:

• Blackmagic OS
• HyperDeck Setup for software upgrades

Operating Systems:

• Mac 11.1 Big Sur, Mac 12.0 Monterey or later
• Windows 10 and 11

Display:

• 2.2-inch LCD for video/audio/timecode monitoring
• LED indicator lights

Power Requirements:

• 12V DC input (locking 5.5mm barrel)
• Power usage: 20W max

Physical Dimensions:

• 8.0 x 5.5 x 1.5 inches (203 x 140 x 38 mm)
• Weight: 1.1 lbs (0.5 kg)

Environmental Specifications:

• Operating Temp: 0° to 40° C (32° to 104° F)
• Storage Temp: -20° to 60° C (-4° to 140° F)
• Humidity: 0% to 90% non-condensing
