Key Features:

• Recording and Playback: Supports H.264, ProRes, and DNxHD files in SD, HD, and Ultra HD up to 2160p30.
• Media Storage: Dual SD card slots (UHS-I/UHS-II) and USB Type-C 3.1 Gen 2 for external disk recording.
• Connectivity: 6G-SDI I/O, HDMI 2.0 I/O, 3G-SDI monitoring output with overlays.
• Control Interface: Front-panel buttons, metal search dial, jog, shuttle, RS-422 remote control.
• Audio: 16 channels via SDI, 8 channels via HDMI.
• Power Supply: Dual internal 100-240V AC, 4-pin XLR 12V DC input for external power.
• Design: Compact 1RU (1.75") height, 1/2 rack width, 2.2 lbs (1 kg).
• Environmental: Operating Temp: 0° to 40° C, Storage Temp: -20° to 60° C, Humidity: 0% to 90% non-condensing.

Key Features:

• Recording and Playback: Supports H.264, ProRes, and DNxHD files in SD, HD, and Ultra HD up to 2160p30.
• Media Storage: Dual SD card slots (UHS-I/UHS-II) and USB Type-C 3.1 Gen 2 for external disk recording.
• Connectivity: 6G-SDI I/O, HDMI 2.0 I/O, 3G-SDI monitoring output with overlays.
• Control Interface: Front-panel buttons, metal search dial, jog, shuttle, RS-422 remote control.
• Audio: 16 channels via SDI, 8 channels via HDMI.
• Power Supply: Dual internal 100-240V AC, 4-pin XLR 12V DC input for external power.
• Design: Compact 1RU (1.75") height, 1/2 rack width, 2.2 lbs (1 kg).
• Environmental: Operating Temp: 0° to 40° C, Storage Temp: -20° to 60° C, Humidity: 0% to 90% non-condensing.

Video Inputs:

• 1 x 3G-SDI input

Video Outputs:

• 1 x 3G-SDI output
• 1 x HDMI Type A output
• 1 x USB Type-C output (supports webcam functionality or external recording of SD, HD, and 2K formats)

Audio:

• Embedded audio support: 16 channels via SDI input
• Embedded audio output: 16 channels via SDI output
• Embedded audio output: 8 channels via HDMI output

Media:

• 2 x SD card slots (compatible with UHS-I and UHS-II cards)
• Media format: ExFAT (Windows/Mac) or HFS+ (Mac)

Supported Codecs:

• ProRes: HQ QuickTime, 422 QuickTime, LT QuickTime, Proxy QuickTime (up to 1080p60)
• DNxHD: 220x, 220x MXF, 145, 145 MXF, 45, 45 MXF (up to 60 fps for 720p and 1080p HD formats)
• H.264: SDI 4:2:2 10-bit, High 4:2:0 8-bit, Medium 4:2:0 8-bit, Low 4:2:0 8-bit (all formats up to 1080p60)

Control:

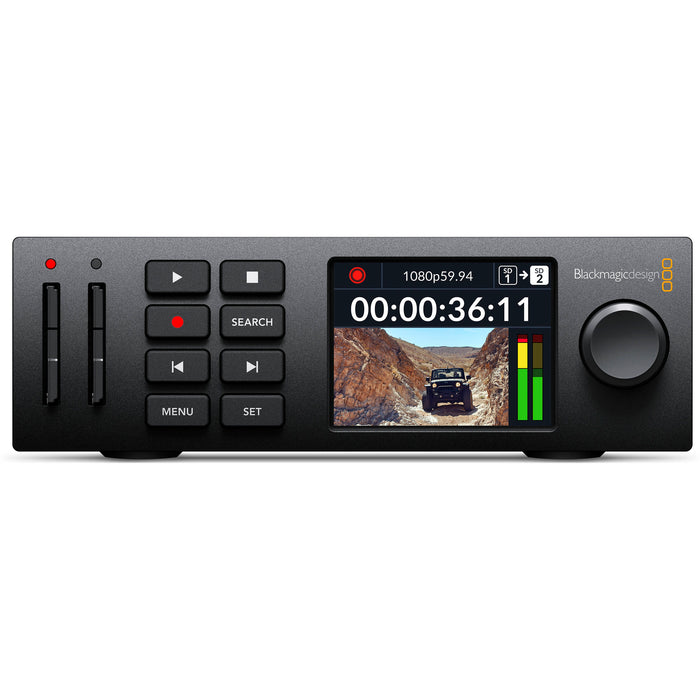

• Built-in control panel with 8 buttons for transport and device control
• Search dial with 2.2-inch color display
• External control via RS-422 deck control port (DB9 female)
• Ethernet (RJ45) for remote operation
• USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam output, software configuration, and updates

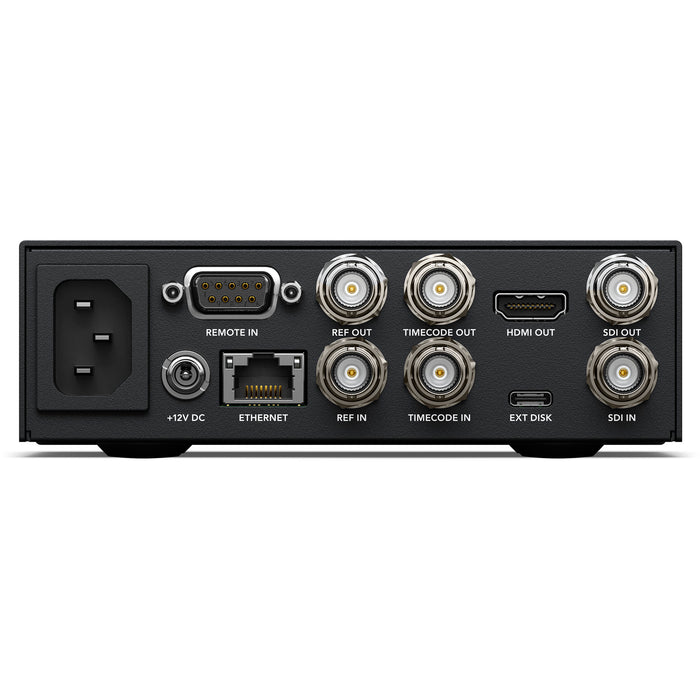

Timecode and Reference:

• Timecode input: 1 x BNC
• Timecode output: 1 x BNC
• Reference input: 1 x BNC (Tri-Sync or Black Burst)
• Reference output: 1 x BNC

Display:

• Built-in 2.2-inch LCD for video, audio, and timecode monitoring, as well as menu settings

Power:

• Power supply: 100 - 240V AC, 50/60Hz
• DC input: 12V DC via locking 5.5mm barrel connector
• Power usage: 50W max

Physical:

• Rack height: 1 RU
• Dimensions: 6.96 x 5.51 x 1.74 inches (17.68 x 14 x 4.42 cm)
• Weight: 1.8 lb (0.82 kg)

Operating Conditions:

• Operating temperature: 41 to 122°F (5 to 50°C)
• Storage temperature: -4 to 113°F (-20 to 45°C)
• Relative humidity: 0 to 90% non-condensing
