Key Features:

• Recording and Playback: Supports ProRes and DNxHD files in SD, HD, and Ultra HD up to 2160p30.
• Media Storage: Dual SD card slots (UHS-I/UHS-II) and USB Type-C 3.0 for external recording.
• Connectivity: 6G-SDI I/O, HDMI 2.0 I/O, and 3G-SDI monitoring output.

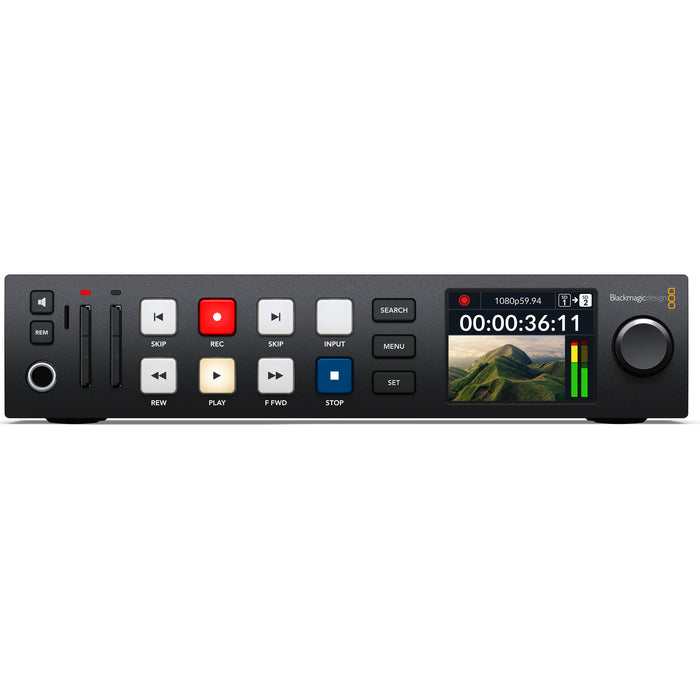

• Control Interface: Front-panel buttons, jog/shuttle wheel, RS-422 remote input/output.
• Audio: 16 channels via SDI, 8 channels via HDMI.
• Power Supply: 100-240V AC power supply, 4-pin XLR 12V DC input for external power.
• Design: 1RU (1.75") height, 1/2 rack width, 2.2 lbs (1 kg).
• Environmental: Operating Temp: 0° to 40° C, Storage Temp: -20° to 60° C, Humidity: 0% to 90% non-condensing.

Key Features:

• Recording and Playback: Supports ProRes and DNxHD files in SD, HD, and Ultra HD up to 2160p30.
• Media Storage: Dual SD card slots (UHS-I/UHS-II) and USB Type-C 3.0 for external recording.
• Connectivity: 6G-SDI I/O, HDMI 2.0 I/O, and 3G-SDI monitoring output.
• Control Interface: Front-panel buttons, jog/shuttle wheel, RS-422 remote input/output.
• Audio: 16 channels via SDI, 8 channels via HDMI.
• Power Supply: 100-240V AC power supply, 4-pin XLR 12V DC input for external power.
• Design: 1RU (1.75") height, 1/2 rack width, 2.2 lbs (1 kg).
• Environmental: Operating Temp: 0° to 40° C, Storage Temp: -20° to 60° C, Humidity: 0% to 90% non-condensing.

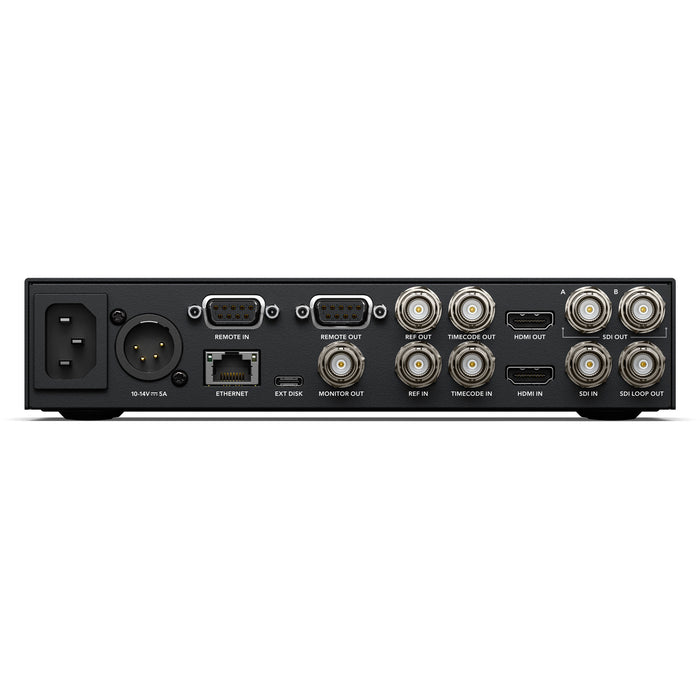

Key Specifications:

Video Inputs:

• 1 x 6G-SDI input
• 1 x HDMI 2.0 input

Video Outputs:

• 2 x 6G-SDI outputs
• 1 x HDMI 2.0 output
• 1 x 3G-SDI monitor output
• 1 x 6G-SDI loop-through output

Audio:

• 16 channels of embedded audio via SDI
• 8 channels of embedded audio via HDMI
• 1 x 6.35 mm headphone jack for audio monitoring

Timecode and Reference:

• 1 x BNC timecode input
• 1 x BNC timecode output
• 1 x BNC reference input (Tri-Sync or Black Burst)
• 1 x BNC reference output

Control:

• 1 x RS-422 remote control input
• 1 x RS-422 remote control output
• 1 x USB Type-C 3.0 port for external drive recording, webcam output, software configuration, and updates

Networking:

• 1 x 1Gb/s Ethernet port

Display:

• Built-in 2.2-inch LCD for video, audio, and timecode monitoring, and menu settings

Power Requirements:

• Internal 100-240V AC power supply
• 4-pin XLR 12V DC input for external power supply or battery use
• Power usage: 100W max

Physical Dimensions:

• Dimensions: 1RU (1.75 inches) height, 1/2 rack width
• Weight: 2.2 lbs (1 kg)

Environmental Specifications:

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing
