16 x 6G-SDI Inputs

Accepts up to 16 independent 6G-SDI video inputs, supporting SD, HD, Ultra HD, and 4K video formats.

Multi-View Output Options

Provides multiple outputs, including 16 x 6G-SDI loop outputs, 2 x 6G-SDI multi-view outputs, 2 x HD-SDI multi-view outputs, and 1 x HDMI output for flexible monitoring.

Customizable Overlays

Allows you to add customizable overlays for labels, audio meters, and tally indicators for detailed video monitoring.

Multiple Viewing Layouts

Supports various grid configurations, including 2x2, 3x3, and 4x4 layouts, enabling efficient monitoring of up to 16 sources.

Automatic Signal Detection

Automatically detects incoming video signals and adjusts accordingly for a hassle-free setup.

Signal Re-clocking

Re-clocks all SDI outputs for improved signal integrity, even over long cable runs.

Software Control via Ethernet

Control the multiviewer remotely via Ethernet, with support for Videohub router protocol for centralized management.

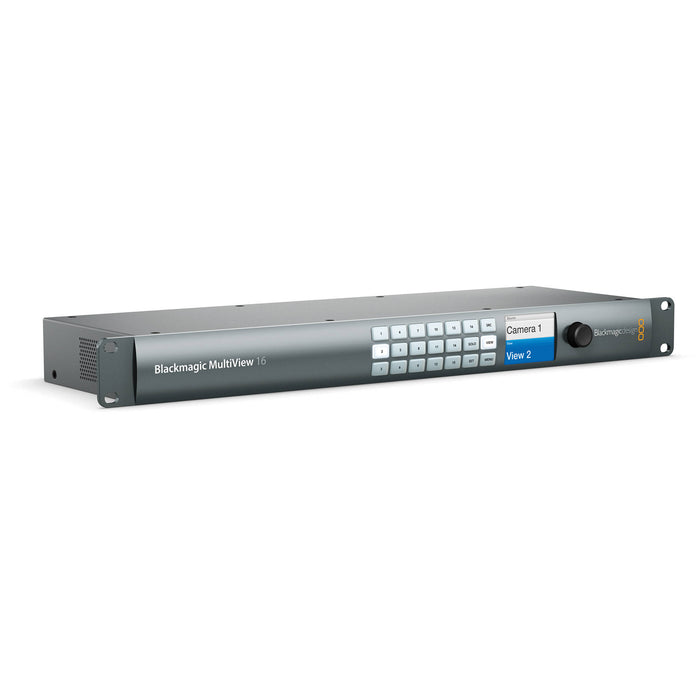

Built-in LCD for Settings

Features a built-in 1.5-inch LCD for easy menu navigation and setup adjustments.

Rack-Mountable Design

Designed as a 1RU rackmount unit, suitable for easy integration into professional broadcast setups.

PoE+ Support

Supports Power over Ethernet (PoE+) for flexible and convenient power options.

16 x 6G-SDI Inputs

Accepts up to 16 independent 6G-SDI video inputs, supporting SD, HD, Ultra HD, and 4K video formats.

Multi-View Output Options

Provides multiple outputs, including 16 x 6G-SDI loop outputs, 2 x 6G-SDI multi-view outputs, 2 x HD-SDI multi-view outputs, and 1 x HDMI output for flexible monitoring.

Customizable Overlays

Allows you to add customizable overlays for labels, audio meters, and tally indicators for detailed video monitoring.

Multiple Viewing Layouts

Supports various grid configurations, including 2x2, 3x3, and 4x4 layouts, enabling efficient monitoring of up to 16 sources.

Automatic Signal Detection

Automatically detects incoming video signals and adjusts accordingly for a hassle-free setup.

Signal Re-clocking

Re-clocks all SDI outputs for improved signal integrity, even over long cable runs.

Software Control via Ethernet

Control the multiviewer remotely via Ethernet, with support for Videohub router protocol for centralized management.

Built-in LCD for Settings

Features a built-in 1.5-inch LCD for easy menu navigation and setup adjustments.

Rack-Mountable Design

Designed as a 1RU rackmount unit, suitable for easy integration into professional broadcast setups.

PoE+ Support

Supports Power over Ethernet (PoE+) for flexible and convenient power options.

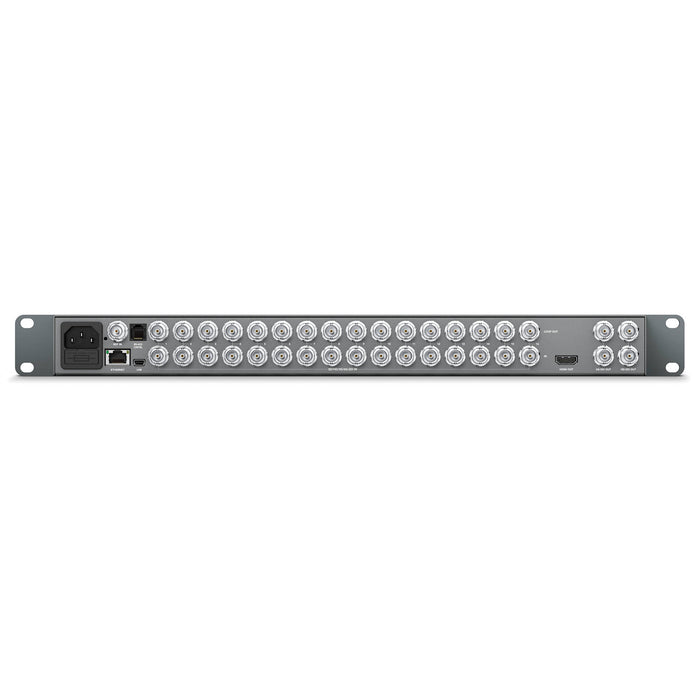

Key Specifications:

Inputs:

• 16 x 6G-SDI inputs with full re-synchronization, supporting SD, HD, and Ultra HD formats.

Outputs:

• 16 x 6G-SDI loop outputs for each input.
• 2 x 6G-SDI multi-view outputs.
• 2 x HD-SDI multi-view outputs.
• 1 x HDMI Type A multi-view output.

Supported Video Formats:

• SD: 525i59.94 NTSC, 625i50 PAL.
• HD: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60.
• 2K: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p.
• Ultra HD: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
• 4K: 2160p24.

Features:

• Automatic signal detection and re-clocking on all SDI outputs.
• Customizable overlays, including labels, audio meters, and tally indicators.
• Supports 2x2, 3x3, and 4x4 multi-view grid configurations.
• Built-in 1.5-inch LCD for menu settings.
• Software control via Ethernet; supports Videohub router protocol.

Power Requirements:

• Built-in 90 to 240 VAC power supply.
• Power consumption: 45W.

Physical Dimensions:

• 1 RU machined aluminum chassis.
• Dimensions: 19.0 x 6.0 x 1.7 inches (482.6 x 152.4 x 43.2 mm).
• Weight: 5.07 lbs (2.3 kg).
