4 x 6G-SDI Inputs

Accepts up to four 6G-SDI video inputs, supporting SD, HD, Ultra HD, and 4K video formats.

Multi-view Output Options

Offers both 6G-SDI and HDMI Type A multi-view outputs, allowing for flexible display connections.

Customizable Overlays

Allows you to add labels, audio meters, and other overlays for professional video monitoring.

Tally Support

Supports tally indications with optional Teranex Mini Smart Panel for clear on-air or preview status.

Re-clocking on All Outputs

Automatic re-clocking on SDI outputs ensures reliable signal integrity, even over long cable runs.

Automatic Signal Detection

Detects incoming video signals automatically for a hassle-free setup.

PoE+ Support

Can be powered via Power over Ethernet (PoE+), offering more flexible installation options.

Videohub Router Protocol

Integrates with Blackmagic's Videohub routers for easy remote control of video routing and switching.

Rack Mountable

Fits neatly into a 1 RU space, designed for easy integration into broadcast racks.

Energy Efficient

Low power consumption of just 16W ensures efficient operation with minimal energy use.

4 x 6G-SDI Inputs

Accepts up to four 6G-SDI video inputs, supporting SD, HD, Ultra HD, and 4K video formats.

Multi-view Output Options

Offers both 6G-SDI and HDMI Type A multi-view outputs, allowing for flexible display connections.

Customizable Overlays

Allows you to add labels, audio meters, and other overlays for professional video monitoring.

Tally Support

Supports tally indications with optional Teranex Mini Smart Panel for clear on-air or preview status.

Re-clocking on All Outputs

Automatic re-clocking on SDI outputs ensures reliable signal integrity, even over long cable runs.

Automatic Signal Detection

Detects incoming video signals automatically for a hassle-free setup.

PoE+ Support

Can be powered via Power over Ethernet (PoE+), offering more flexible installation options.

Videohub Router Protocol

Integrates with Blackmagic's Videohub routers for easy remote control of video routing and switching.

Rack Mountable

Fits neatly into a 1 RU space, designed for easy integration into broadcast racks.

Energy Efficient

Low power consumption of just 16W ensures efficient operation with minimal energy use.

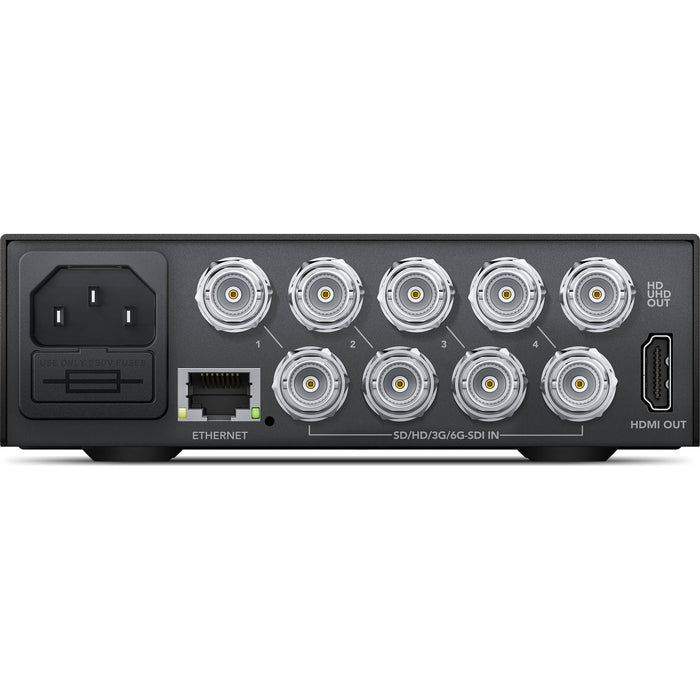

Inputs:

• 4 x 6G-SDI inputs with full re-synchronization, supporting SD, HD, and Ultra HD formats.

Outputs:

• 1 x 6G-SDI multi-view output.
• 1 x HDMI Type A multi-view output.
• 4 x 6G-SDI loop outputs for each input.

Supported Video Formats:

• SD: 525i59.94 NTSC, 625i50 PAL.
• HD: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60.
• 2K: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p.
• Ultra HD: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
• 4K: 2160p24.

Features:

• Automatic signal detection and re-clocking on all SDI outputs.
• Customizable overlays, including labels and audio meters.
• Tally support with optional Teranex Mini Smart Panel.
• Software control via Ethernet; supports Videohub router protocol.

Power Requirements:

• Built-in 90 to 240 VAC power supply.
• Power consumption: 16W.
• Supports 48V DC PoE+ for flexible power options.

Physical Dimensions:

• 1 RU machined aluminum chassis.
• Dimensions: 6.7 x 5.5 x 1.8 inches (17.0 x 14.0 x 4.5 cm).
• Weight: 1.28 lbs (0.58 kg).
