Key Features:

• Multiple Input Support: Accepts four SD/HD/3G-SDI inputs, allowing for diverse video source monitoring.
• Dual Output Options: Provides both SDI and HDMI outputs, offering flexibility in connecting to various display devices.
• Automatic Signal Detection: Automatically detects and adjusts to the input signal format, ensuring seamless operation across different video standards.
• SDI Re-Clocking: Includes SDI re-clocking on the output, maintaining signal integrity over longer cable runs.
• Customizable Overlays: Each view can display custom labels, audio meters, and other overlays, enhancing monitoring capabilities.
• Compact Design: Features a compact form factor, suitable for both desktop and rack-mounted installations.
• Power Supply: Operates on a 12V universal power supply, compatible with international socket adapters.

Key Features:

• Multiple Input Support: Accepts four SD/HD/3G-SDI inputs, allowing for diverse video source monitoring.
• Dual Output Options: Provides both SDI and HDMI outputs, offering flexibility in connecting to various display devices.
• Automatic Signal Detection: Automatically detects and adjusts to the input signal format, ensuring seamless operation across different video standards.
• SDI Re-Clocking: Includes SDI re-clocking on the output, maintaining signal integrity over longer cable runs.
• Customizable Overlays: Each view can display custom labels, audio meters, and other overlays, enhancing monitoring capabilities.
• Compact Design: Features a compact form factor, suitable for both desktop and rack-mounted installations.
• Power Supply: Operates on a 12V universal power supply, compatible with international socket adapters.

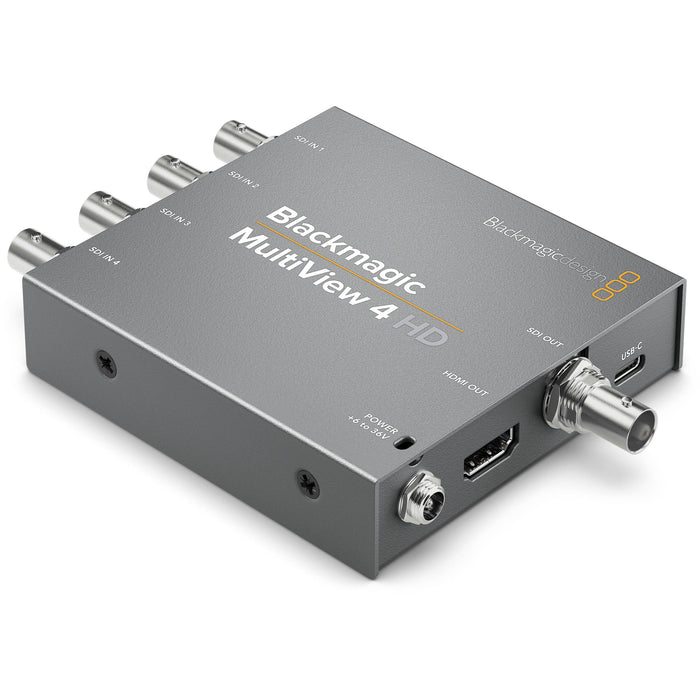

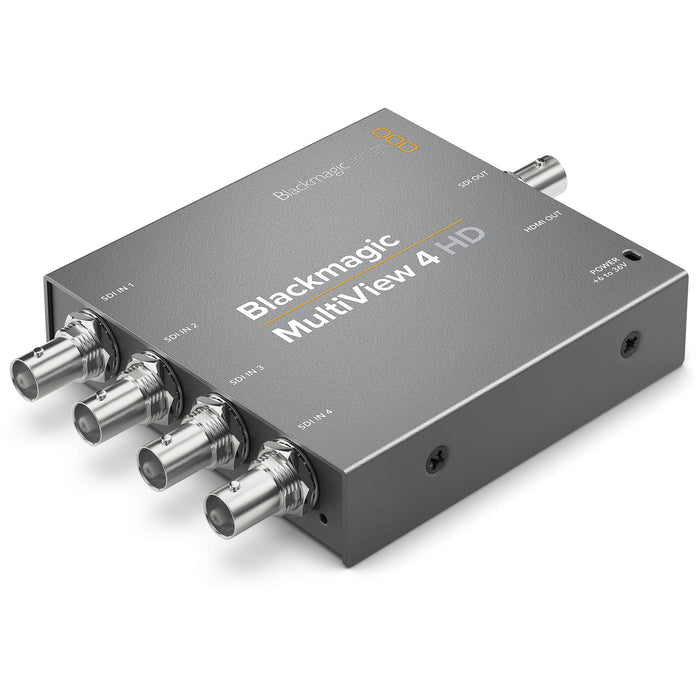

Inputs:

• 4 x BNC connectors for SD/HD/3G-SDI signals.

Outputs:

• 1 x BNC connector for SDI output.
• 1 x HDMI Type A connector for HDMI output.

Video Formats Supported:

• SD: 525i59.94 NTSC, 625i50 PAL.
• HD: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60.
• 2K: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p.

Features:

• Automatic signal detection.
• SDI re-clocking on output.
• Monitor EDID support.

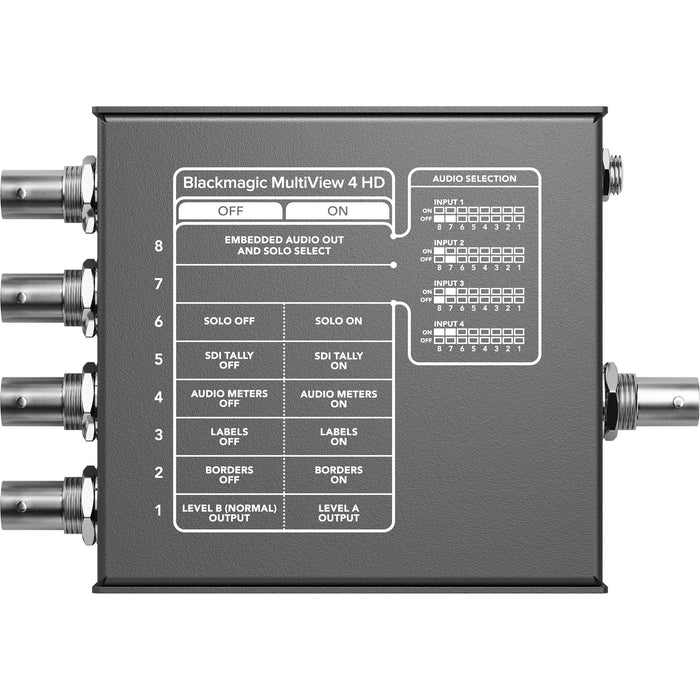

• Customizable overlays, including labels and audio meters.

Power Requirements:

• 12V DC power supply included.
• Power consumption: 5.5W.

Physical Dimensions:

• Dimensions: 123 x 79.5 x 29.5 mm (4.8 x 3.1 x 1.2 inches).
• Weight: 0.24 kg (8.53 oz).
