Ultra HD 4K Resolution

Supports high-resolution 3840 x 2160 display for ultra-clear video.

12G-SDI Support

Features dual 12G-SDI inputs for seamless high-definition video transmission.

Built-in 3D LUT Support

Includes 3D LUT (Look-Up Table) support for accurate color calibration and monitoring.

Tally Support

Illuminated tally border to indicate on-air or preview status.

Focus Peaking

Focus peaking feature to assist in achieving precise focus for high-quality video production.

Framing Guides

Built-in safe area and title safe markers for more accurate framing during live broadcasts.

Multiple Video Formats

Supports a wide range of video formats including SD, HD, Ultra HD, and 4K for versatile video production workflows.

Rack Mountable

6RU (Rack Unit) form factor, allowing for easy integration into professional broadcast racks.

Versatile Power Options

Offers both internal AC power supply (100-240V) and external 12V DC input for flexibility in various setups.

Remote Control

Supports remote control via USB or Ethernet for easier operation in production environments.

Vibrant and Clear Display

High contrast ratio and color accuracy make it ideal for critical video monitoring.

Compact and Lightweight

Despite its large display size, the monitor is relatively lightweight and compact for professional use.

Ultra HD 4K Resolution

Supports high-resolution 3840 x 2160 display for ultra-clear video.

12G-SDI Support

Features dual 12G-SDI inputs for seamless high-definition video transmission.

Built-in 3D LUT Support

Includes 3D LUT (Look-Up Table) support for accurate color calibration and monitoring.

Tally Support

Illuminated tally border to indicate on-air or preview status.

Focus Peaking

Focus peaking feature to assist in achieving precise focus for high-quality video production.

Framing Guides

Built-in safe area and title safe markers for more accurate framing during live broadcasts.

Multiple Video Formats

Supports a wide range of video formats including SD, HD, Ultra HD, and 4K for versatile video production workflows.

Rack Mountable

6RU (Rack Unit) form factor, allowing for easy integration into professional broadcast racks.

Versatile Power Options

Offers both internal AC power supply (100-240V) and external 12V DC input for flexibility in various setups.

Remote Control

Supports remote control via USB or Ethernet for easier operation in production environments.

Vibrant and Clear Display

High contrast ratio and color accuracy make it ideal for critical video monitoring.

Compact and Lightweight

Despite its large display size, the monitor is relatively lightweight and compact for professional use.

Display:

• Size: 15.6-inch TFT Active Matrix LCD
• Resolution: 3840 x 2160 pixels (Ultra HD)
• Aspect Ratio: 16:9
• Contrast Ratio: 1000:1
• Color Depth: 16.7 million colors
• Pixel Density: 282 ppi

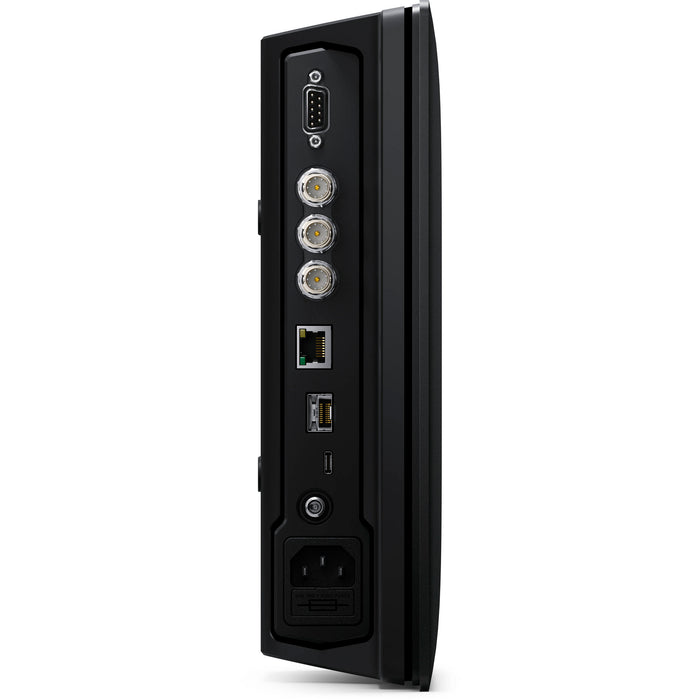

Video Inputs:

• 12G-SDI Inputs: 2 x BNC connectors
• SMPTE 2110 IP Video Input: 1 x RJ45 connector

Video Outputs:

• 12G-SDI Loop Output: 1 x BNC connector

Supported Video Formats:

• SD Formats: 525i59.94 NTSC, 625i50 PAL
• HD Formats: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 2K DCI Formats: 2Kp23.98, 2Kp24, 2Kp25, 2Kp29.97, 2Kp30, 2Kp47.95, 2Kp48, 2Kp50, 2Kp59.94, 2Kp60, 2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30
• Ultra HD Formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K DCI Formats: 4Kp23.98, 4Kp24, 4Kp25, 4Kp29.97, 4Kp30, 4Kp47.95, 4Kp48, 4Kp50, 4Kp59.94, 4Kp60

Audio:

• Embedded Audio: 16 channels via SDI

Power:

• Power Supply: Internal 100-240V AC, 50/60Hz
• Power Inputs: 1 x IEC C14 socket for AC power, 1 x 5.5mm barrel +12V DC In for external power supply or battery use
• Power Consumption: 24W

Physical Specifications:

• Rack Mountable: 6 rack units
• Dimensions: 48.21 x 26.59 x 6.96 cm (18.98 x 10.47 x 2.75 inches)
• Weight: 3.60 kg (7.94 lbs)

Environmental Specifications:

• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: -20° to 60°C (-4° to 140°F)
• Relative Humidity: 0% to 90% non-condensing

Additional Features:

• 3D LUT Support: For color accurate monitoring
• Focus Peaking: Assists in achieving precise focus
• Framing Guides: Includes safe area and safe title markers
• Tally Support: Illuminated colored border indicating on-air or preview status
• Remote Control: Via USB or Ethernet
