Key Features:

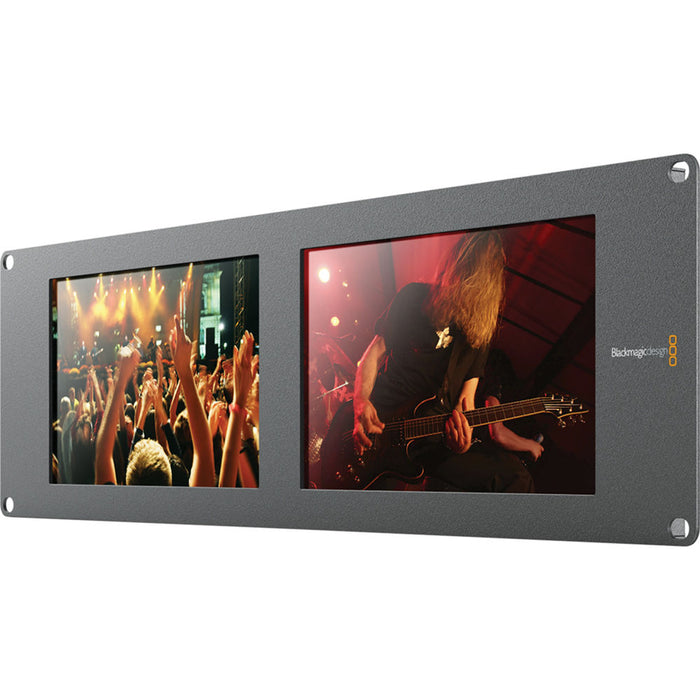

• Dual 8" LCD Monitors: Each monitor offers an 800 x 480 resolution, providing clear and detailed video display.
• Auto-Switching SDI Inputs: Automatically detects and switches between SD, HD, and 3G-SDI video formats, ensuring compatibility with various video sources.
• Integrated Tally Support:B&H Photo Video

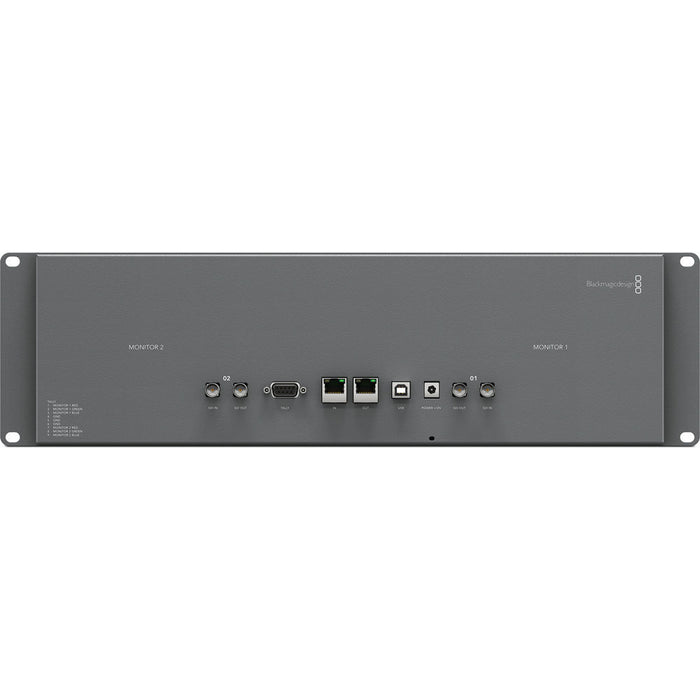

• Loop-Through SDI Outputs: Includes loop-through SDI outputs for both inputs, allowing for signal distribution to additional devices without signal degradation.
• Remote Configuration: Supports remote adjustments via Ethernet, enabling centralized control and configuration of multiple units.
• Firmware Upgradable: Allows for firmware updates via USB, ensuring the monitor remains compatible with future video standards and features.
• Ultra-Thin Design: With a depth of less than 1 inch, the SmartView Duo is ideal for space-constrained environments and portable setups.
• Rack-Mountable: Designed to fit into a 3RU rack space, facilitating easy integration into existing broadcast and production racks.

Key Features:

• Dual 8" LCD Monitors: Each monitor offers an 800 x 480 resolution, providing clear and detailed video display.
• Auto-Switching SDI Inputs: Automatically detects and switches between SD, HD, and 3G-SDI video formats, ensuring compatibility with various video sources.
• Integrated Tally Support:B&H Photo Video
• Loop-Through SDI Outputs: Includes loop-through SDI outputs for both inputs, allowing for signal distribution to additional devices without signal degradation.
• Remote Configuration: Supports remote adjustments via Ethernet, enabling centralized control and configuration of multiple units.
• Firmware Upgradable: Allows for firmware updates via USB, ensuring the monitor remains compatible with future video standards and features.
• Ultra-Thin Design: With a depth of less than 1 inch, the SmartView Duo is ideal for space-constrained environments and portable setups.
• Rack-Mountable: Designed to fit into a 3RU rack space, facilitating easy integration into existing broadcast and production racks.

Key Specifications:

Inputs:

• 16 x 6G-SDI inputs with full re-synchronization, supporting SD, HD, and Ultra HD formats.

Outputs:

• 16 x 6G-SDI loop outputs for each input.
• 2 x 6G-SDI multi-view outputs.
• 2 x HD-SDI multi-view outputs.
• 1 x HDMI Type A multi-view output.

Supported Video Formats:

• SD: 525i59.94 NTSC, 625i50 PAL.
• HD: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60.
• 2K: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p.
• Ultra HD: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
• 4K: 2160p24.

Features:

• Automatic signal detection and re-clocking on all SDI outputs.
• Customizable overlays, including labels, audio meters, and tally indicators.
• Supports 2x2, 3x3, and 4x4 multi-view grid configurations.
• Built-in 1.5-inch LCD for menu settings.
• Software control via Ethernet; supports Videohub router protocol.

Power Requirements:

• Built-in 90 to 240 VAC power supply.
• Power consumption: 45W.

Physical Dimensions:

• 1 RU machined aluminum chassis.
• Dimensions: 19.0 x 6.0 x 1.7 inches (482.6 x 152.4 x 43.2 mm).
• Weight: 5.07 lbs (2.3 kg).

For more detailed information, you can refer to the official Blackmagic Design MultiView 16 product page.
