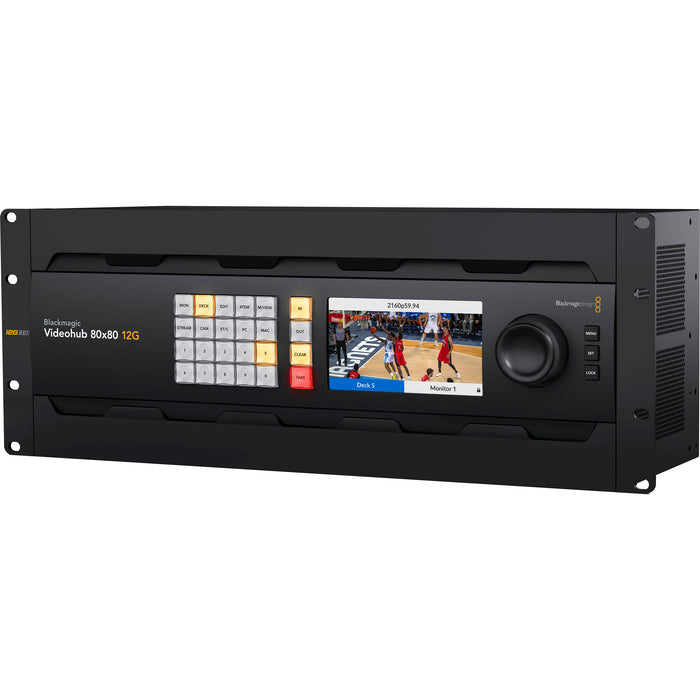

80 x 12G-SDI inputs and 80 x 12G-SDI outputs for flexible video routing

Zero-latency video routing supporting SD, HD, and Ultra HD video formats

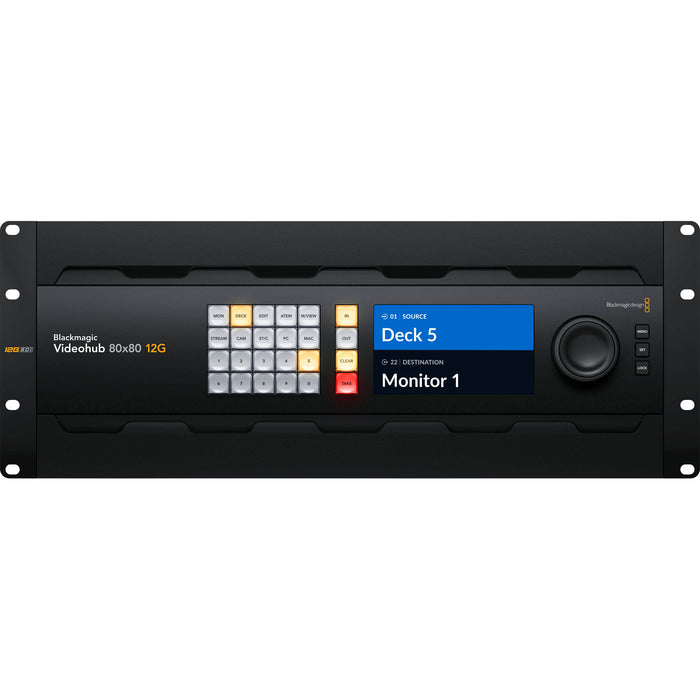

2.2-inch color LCD display for routing labels and live video monitoring

Machined metal spin knob for intuitive navigation

SDI re-clocking available on all 12G-SDI inputs for signal integrity

Ethernet control for remote operation and integration

Redundant power and reference connections for increased reliability

Compatible with Videohub Master Control Pro and Videohub Smart Control Pro

Software control for Mac, Windows, and iPad

Free SDK for integration into broadcast automation systems

80 x 12G-SDI inputs and 80 x 12G-SDI outputs for flexible video routing

Zero-latency video routing supporting SD, HD, and Ultra HD video formats

2.2-inch color LCD display for routing labels and live video monitoring

Machined metal spin knob for intuitive navigation

SDI re-clocking available on all 12G-SDI inputs for signal integrity

Ethernet control for remote operation and integration

Redundant power and reference connections for increased reliability

Compatible with Videohub Master Control Pro and Videohub Smart Control Pro

Software control for Mac, Windows, and iPad

Free SDK for integration into broadcast automation systems

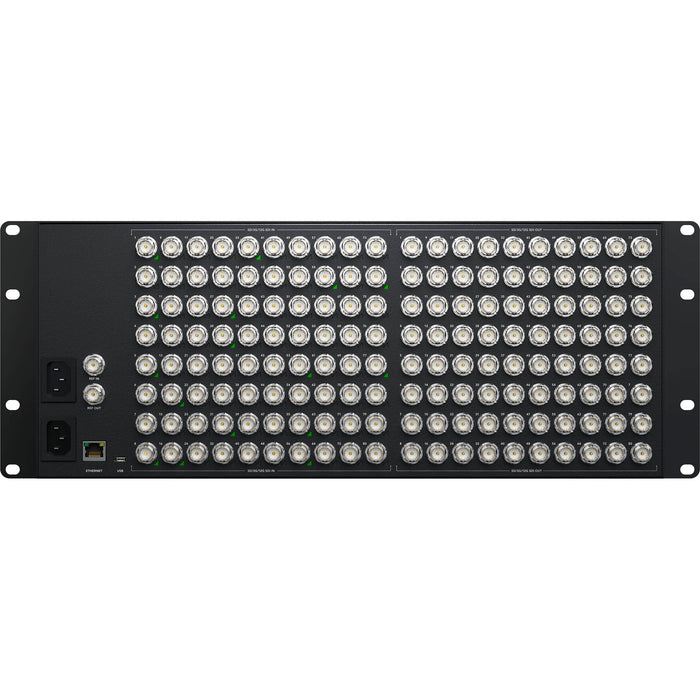

Video Inputs:

• 80 x 12G-SDI inputs

Video Outputs:

• 80 x 12G-SDI outputs

Supported Video Standards:

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60; 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI; 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI

SDI Rates:

• DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G

SDI Reclocking:

• On all SDI outputs

Reference Inputs:

• Tri-Sync or Black Burst

Reference Outputs:

• Reference terminating loop output

Ethernet:

• Supports 10/100/1000 BASE-T

Computer Interface:

• USB-C

Power Supply:

• Internal 100 - 240V AC

Physical Installation:

• 4 rack units height

Environmental Specifications:

• Operating temperature: 0° to 40°C (32° to 104°F)
• Storage temperature: -20° to 60°C (-4° to 140°F)
• Relative humidity: 0% to 90% non-condensing
