Key Features:

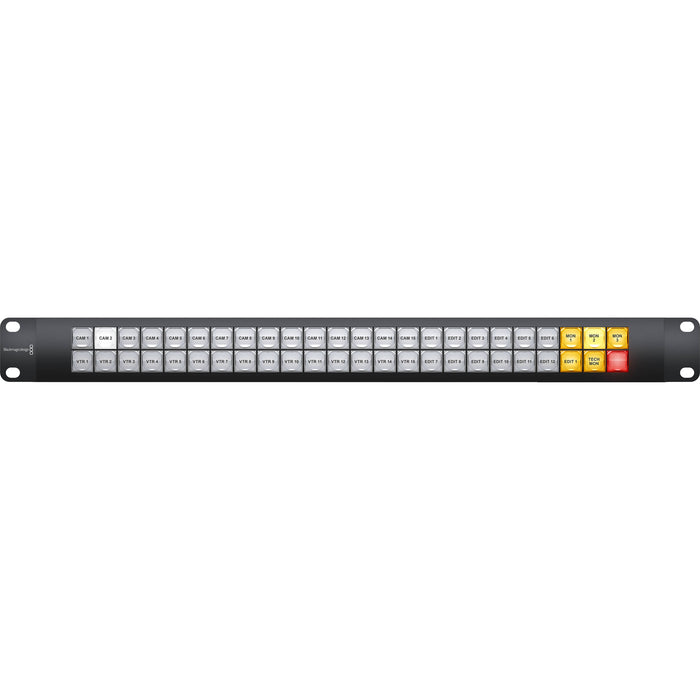

• Programmable Buttons: Equipped with 48 assignable buttons, the control panel allows for quick selection of sources and destinations, streamlining the routing process.
• Macro Capability: Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands, enhancing operational efficiency.
• Ethernet Connectivity: Supports Ethernet connections for remote control, facilitating integration into networked environments.
• USB Type-C Port: Includes a USB Type-C port for configuration and firmware updates, ensuring the control panel remains up-to-date with the latest features and improvements.
• Power Options: Offers Power over Ethernet (PoE) for simplified power management, with an alternative IEC power connection available if needed.
• Rackmount Design: Housed in a 1 RU frame, the control panel is suitable for integration into standard broadcast racks, conserving valuable space.

Key Features:

• Programmable Buttons: Equipped with 48 assignable buttons, the control panel allows for quick selection of sources and destinations, streamlining the routing process.
• Macro Capability: Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands, enhancing operational efficiency.
• Ethernet Connectivity: Supports Ethernet connections for remote control, facilitating integration into networked environments.
• USB Type-C Port: Includes a USB Type-C port for configuration and firmware updates, ensuring the control panel remains up-to-date with the latest features and improvements.
• Power Options: Offers Power over Ethernet (PoE) for simplified power management, with an alternative IEC power connection available if needed.
• Rackmount Design: Housed in a 1 RU frame, the control panel is suitable for integration into standard broadcast racks, conserving valuable space.

Hardware Control:

• 48 programmable buttons for routing sources and destinations.
• 10 assignable macro buttons for executing multiple commands simultaneously.
• Push buttons and a large spin knob with an electronic clutch for intuitive navigation.
• LCD information screen for displaying routing labels and video standards.

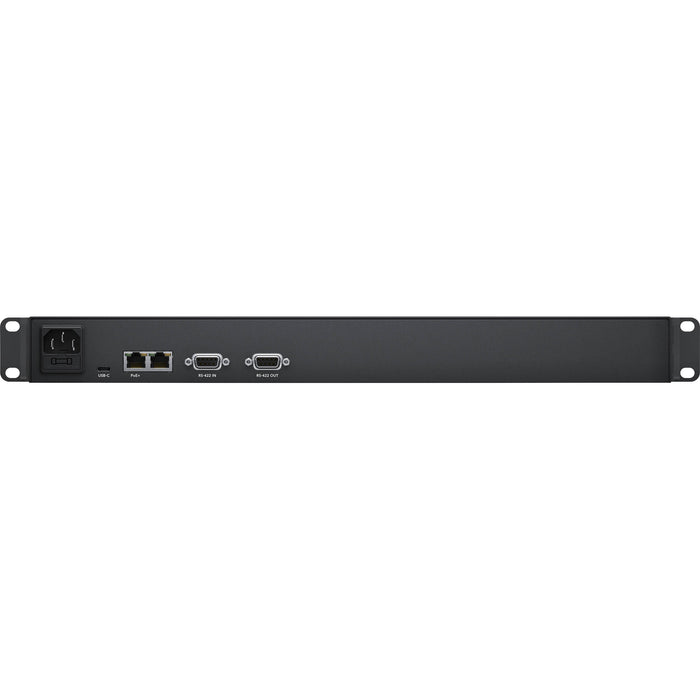

Connections:

• Ethernet: 1 x RJ45 Ethernet input with Power over Ethernet (PoE) support; 1 x RJ45 Ethernet output.
• RS-422: 2 x RS-422 ports (In and Out) for future implementation.
• Computer Interface: 1 x USB Type-C port for configuration and software updates.

Power:

• Power supply: 100 - 240V AC.
• Power over Ethernet (PoE) supported on Ethernet input; no PoE on Ethernet output.
• IEC power cable required for AC power connection.

Physical:

• Rackmount design: 1 rack unit (1RU) size.
• Dimensions: 19 x 1.7 x 4.4 inches (48.3 x 4.3 x 11.2 cm).
• Weight: 2.2 lb (1 kg).

Operating Conditions:

• Operating temperature: 32 to 104°F (0 to 40°C).
• Storage temperature: -4 to 113°F (-20 to 45°C).
• Relative humidity: 0% to 90% non-condensing.

Software Compatibility:

• Mac: macOS 10.13, 10.14, or later.
• Windows: Windows 10 (64-bit) and Windows 11.
