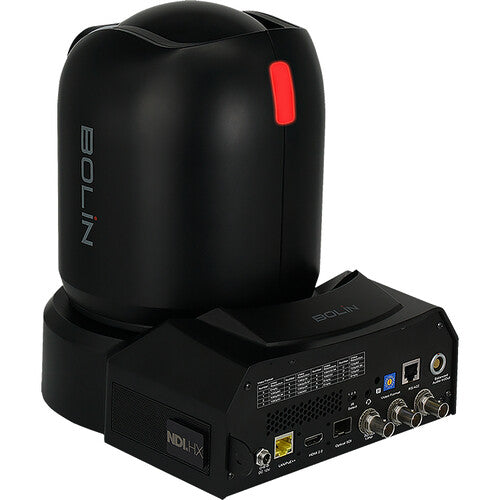

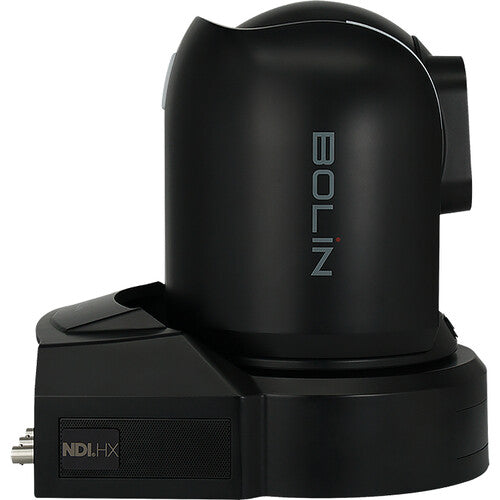

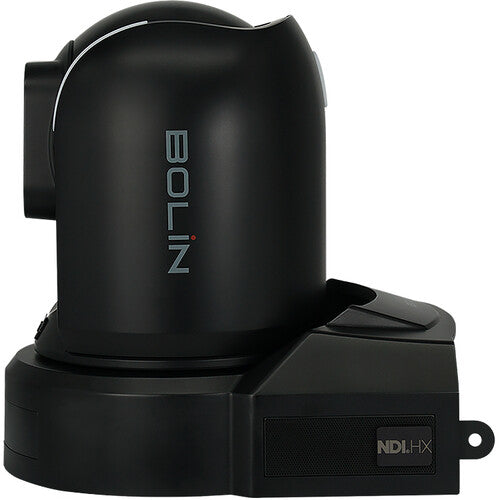

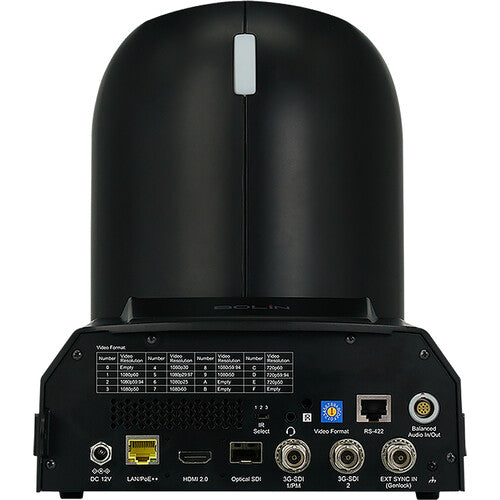

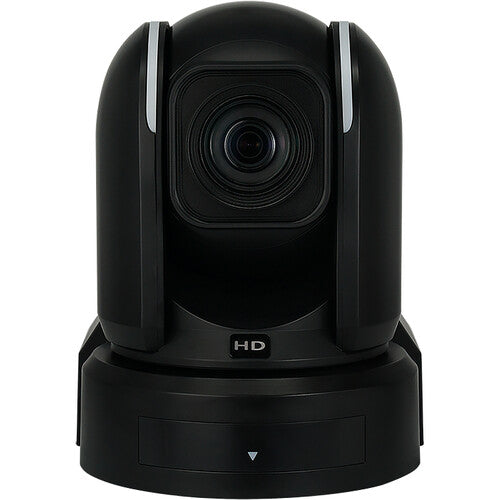

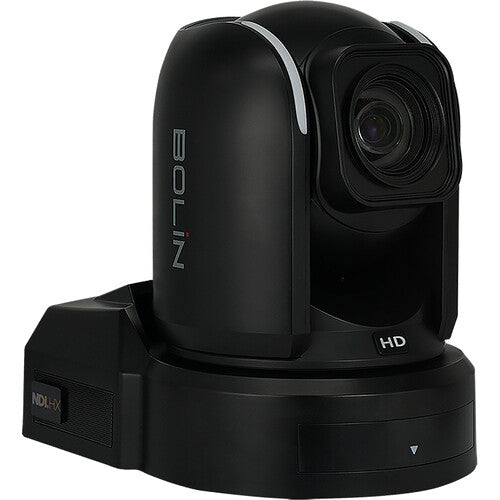

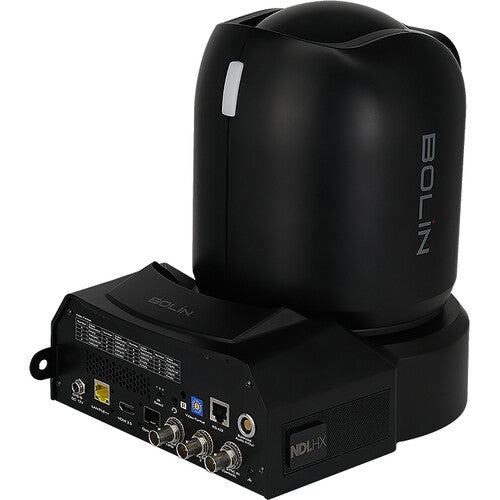

Bolin Technology R9-230NX NDI HX3 FHD PTZ Camera with 30X Zoom - Black
Original price
$4,395.00
-
Original price
$4,395.00
Original price
$4,395.00
$4,395.00
-
$4,395.00
Current price
$4,395.00
| /
The Bolin R9-230NX NDI HX3 Full HD PTZ Camera sets a new standard for high-performance video production and live streaming. Engineered with a robust 1/2.8-inch progressive CMOS sensor, the R9-230NX delivers brilliant 1080p full HD video with exceptional clarity and vibrant color reproduction. Featuring 30x optical zoom, advanced NDI HX3 streaming technology, and multiple video outputs including IP, HDMI, and 3G-SDI, this camera ensures unmatched flexibility for a variety of professional applications. Designed for seamless installation, it supports PoE+ for single-cable convenience and offers whisper-quiet, precise PTZ movement, making it perfect for broadcast studios, live events, corporate meetings, education, and houses of worship.
The Key Features of the Bolin R9-230NX NDI HX3 Full HD PTZ Camera:
- Full HD 1080p60 resolution with 1/2.8-inch CMOS sensor
- 30x optical zoom for exceptional close-up clarity
- NDI HX3 support for high-efficiency IP streaming
- Multiple outputs: IP, HDMI, and 3G-SDI for flexible workflow integration
- PoE+ support for streamlined installation with single cable
- Low latency and low bandwidth optimized for live productions
- Advanced auto-focus and image processing for sharp, detailed video
- Quiet, high-precision PTZ mechanism with wide pan and tilt range
- Web UI control, NDI tools, VISCA over IP, and RS-232/RS-422 serial control compatibility
- Ideal for broadcast, corporate, education, live events, and worship environments
The Detailed Specifications for the Bolin R9-230NX NDI HX3 Full HD PTZ Camera:
- Image Sensor: 1/2.8" Progressive CMOS, 2.13 Megapixels
- Resolution: Full HD 1920x1080p at 60fps
- Zoom: 30x Optical, 12x Digital
- NDI Support: NDI HX3 (High-efficiency IP streaming)
- Outputs: IP (RTSP/RTMP/SRT/NDI), HDMI, 3G-SDI
- Pan Range: ±170°, Tilt Range: -30° to +90°
- Pan Speed: 0.1°–100°/sec, Tilt Speed: 0.1°–80°/sec
- Audio: Stereo Line-in via 3.5mm input, embedded audio on IP and HDMI
- Network Protocols: RTSP, RTMP, SRT, NDI HX3, ONVIF
- Power: PoE+ (IEEE802.3at) or 12V DC input
- Control Interfaces: VISCA over IP, VISCA RS-232/RS-422, Web UI
- Dimensions (W x H x D): 176mm x 191mm x 191mm (approx.)
- Weight: Approx. 3.5 kg (7.7 lbs)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Mounting Options: Desktop, tripod, ceiling mount (mount kit sold separately)
