Bolin Technology D20S Dante AV Ultra 4K Transceiver with HDMI 2.0 Input/Output and 12G-SDI Output
Original price
$1,495.00
-
Original price
$1,495.00
Original price
$1,495.00
$1,495.00
-
$1,495.00
Current price
$1,495.00
| /

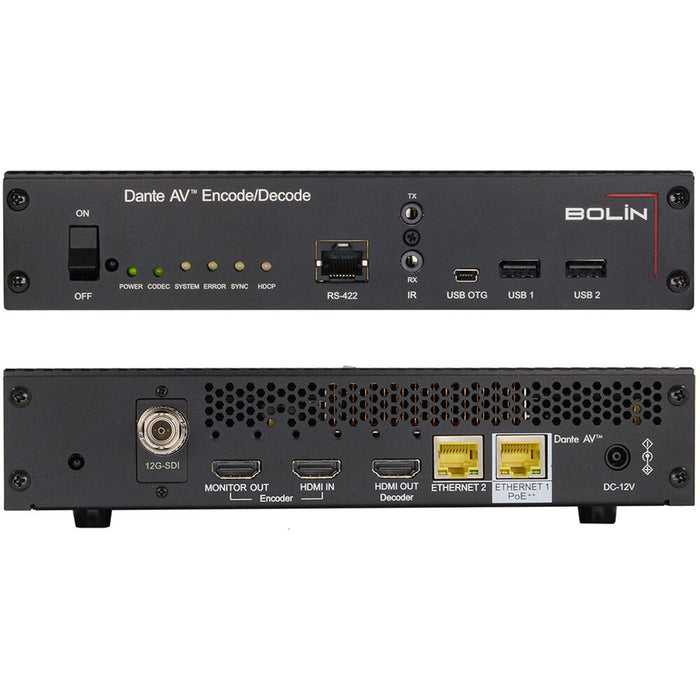

The Bolin D20S Dante AV Ultra 4K Transceiver is a high-performance, network-based AV solution designed to support the Dante AV Ultra protocol for uncompromised, visually lossless 4K60 video transmission over standard IP networks. Featuring HDMI 2.0 input/output and a professional-grade 12G-SDI output, this compact transceiver provides flexibility for integrators and broadcasters needing seamless AV routing, signal extension, and format conversion. With ultra-low latency and precise timing, the D20S is ideal for broadcast, live event production, higher education, and corporate AV environments.
The Key Features of the Bolin D20S Dante AV Ultra 4K Transceiver:
- Supports Dante AV Ultra protocol for lossless 4K60 4:4:4 video over IP
- HDMI 2.0 input and output for full 4K connectivity
- 12G-SDI output for professional broadcast workflows
- Selectable encoder or decoder mode for transceiver flexibility
- Low-latency video transmission (<1 frame)
- Embedded audio and control over a single network cable
- Compatible with Dante Controller for intuitive device management
- Compact, fanless metal housing for silent operation
- PoE+ support for simplified power and installation
- Ideal for AV over IP installations, live events, and studios
The Detailed Specifications for the Bolin D20S Dante AV Ultra 4K Transceiver:
- Video Resolution Support: Up to 4K60p (4:4:4, 10-bit HDR)
- Input Interfaces: 1x HDMI 2.0 (Type A)
- Output Interfaces: 1x HDMI 2.0 (loop), 1x 12G-SDI (BNC)
- Network Interface: 1x RJ45 Gigabit Ethernet (Dante AV Ultra)
- Audio Support: 8-channel embedded audio over Dante
- Latency: Sub-frame latency (<1 frame)
- Operating Modes: Selectable Encoder / Decoder
- Control: Via Dante Controller, web UI
- Power: PoE+ (IEEE 802.3at), or 12V DC input
- Chassis: Metal enclosure, fanless design
- Dimensions: Approx. 180mm x 120mm x 35mm
- Weight: Approx. 1.2 kg
- Mounting: Surface and rack mounting options available
