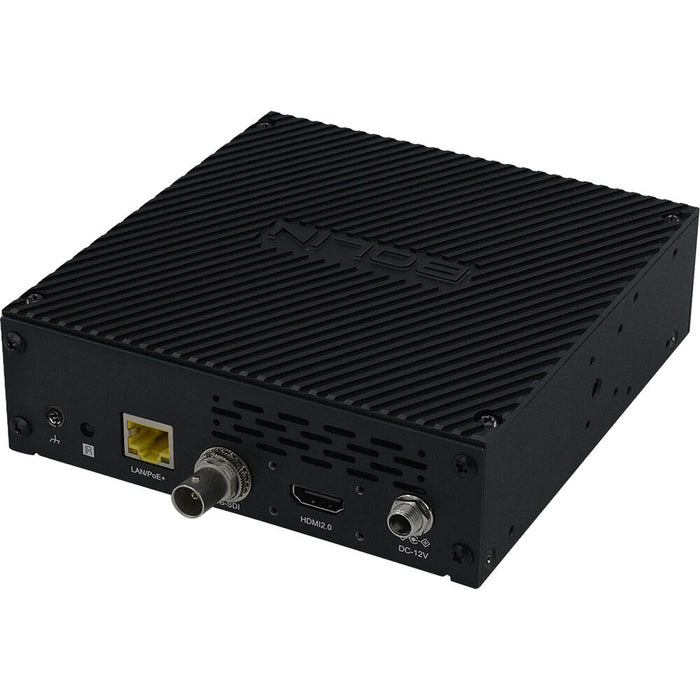

The Bolin EG40DH is a professional-grade decoder designed to seamlessly convert Dante AV-H video streams into high-quality 12G-SDI or HDMI 2.0 output. Tailored for integrators, broadcasters, and AV professionals, this unit delivers ultra-low latency decoding of up to 4Kp60 resolution over a single Gigabit Ethernet connection. With native support for Dante Controller and Dante Domain Manager, the EG40DH allows plug-and-play operation within existing Dante AV networks. Its compact form factor, robust metal housing, and fanless design make it ideal for mission-critical environments, such as control rooms, corporate AV systems, and live production setups.
The Key Features of the Bolin EG40DH:
- Decodes Dante AV-H video streams to 12G-SDI and HDMI 2.0 outputs
- Supports up to 4Kp60 resolution with ultra-low latency
- Single RJ45 Gigabit Ethernet input for video, audio, control, and power (PoE++)
- Full integration with Dante Controller and Dante Domain Manager
- Audio de-embedding to analog stereo and HDMI/SDI outputs
- Low-power fanless design with rugged metal enclosure
- Configurable output formats and EDID management
- Flexible mounting options for rack or wall installation
The Detailed Specifications for the Bolin EG40DH:
- Video Decoding: Dante AV-H H.264 up to 4Kp60

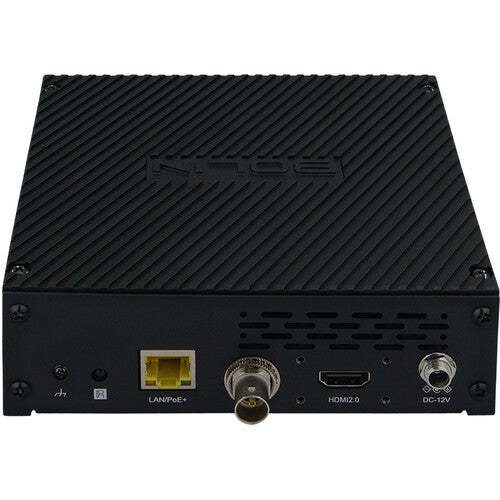

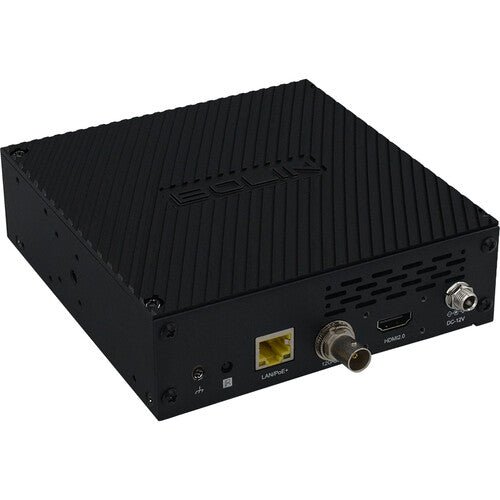

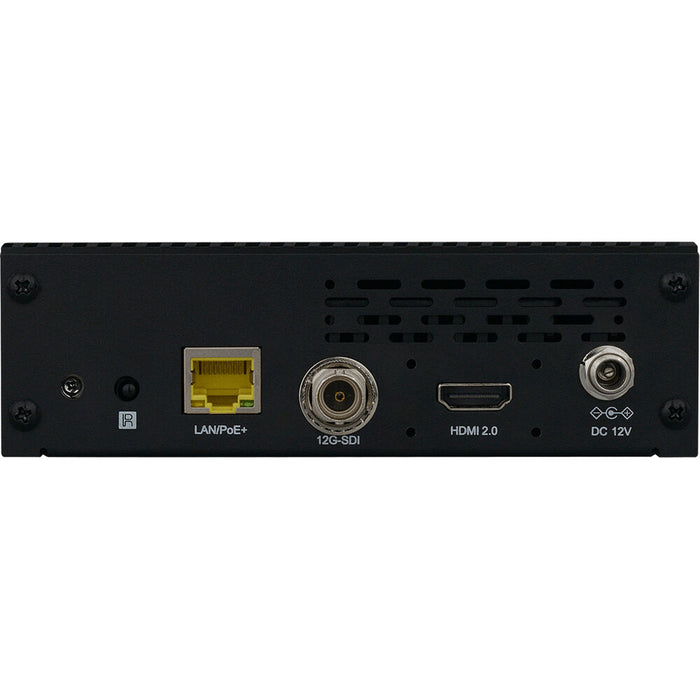

- Output Interfaces: 1x 12G-SDI (BNC), 1x HDMI 2.0 (Type A)
- Network Interface: 1x RJ45 Gigabit Ethernet (PoE++, 802.3bt)
- Audio Output: 2x RCA (unbalanced analog), embedded in SDI and HDMI
- Control Protocols: Dante Controller, Dante Domain Manager, Web UI
- Latency: As low as 90ms end-to-end
- Supported Resolutions: 3840x2160p, 1920x1080p, 1280x720p
- Power Consumption: ≤ 15W via PoE++ or 12V DC input
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Dimensions: 158mm x 120mm x 31mm (6.2" x 4.7" x 1.2")
- Weight: Approx. 0.7kg (1.54 lbs)
- Mounting: Wall mount bracket and rubber feet included
