Blackmagic Design URSA Studio Viewfinder G2 [Rental]
Availability:
In stock 3-5 days
Original price
$175.00
-
Original price
$175.00
Original price
$175.00
$175.00
-
$175.00
Current price
$175.00
| /
Rate/Day | 3-Day Weekly Rates Available

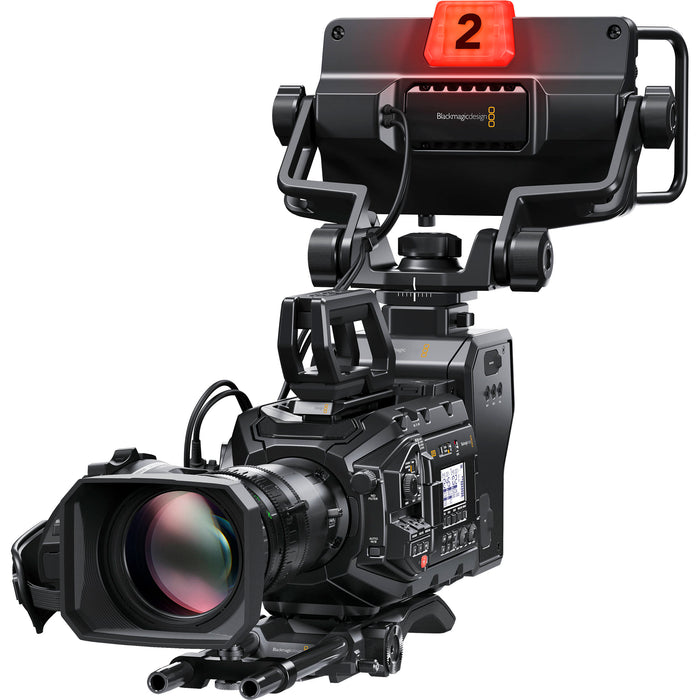

The Blackmagic Design URSA Studio Viewfinder G2 is a professional-grade viewfinder engineered for broadcast and live production environments, designed to perfectly complement URSA cameras.
SKU: CINEURSANSVF2-RENTAL
The Blackmagic Design URSA Studio Viewfinder G2 is a professional-grade viewfinder engineered for broadcast and live production environments, designed to perfectly complement URSA cameras. Featuring a bright 7-inch display with high resolution, it delivers sharp, clear images that make precise focusing and framing effortless, even in challenging lighting conditions. Its large tactile controls and customizable function buttons allow operators to make quick adjustments without distraction, while integrated tally lights and status overlays streamline multi-camera workflows. Built with rugged materials for durability and extended use, the URSA Studio Viewfinder G2 offers a reliable, ergonomic solution that elevates the efficiency and quality of live productions.
The Key Features of the Blackmagic Design URSA Studio Viewfinder G2:

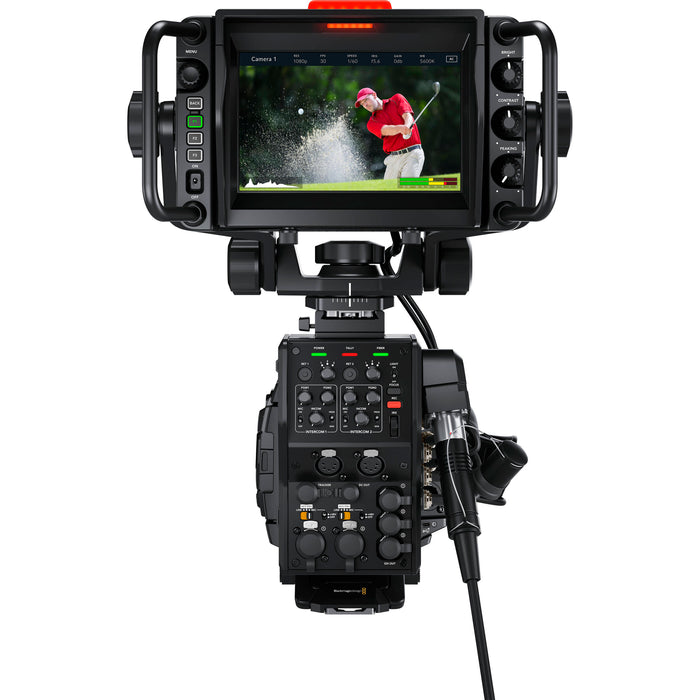

- 7-inch 1920 x 1200 TFT LCD with 2000 cd/m² brightness for high visibility
- Detachable sun hood to reduce glare
- Large side handles for easy angle adjustments
- 3G-SDI BNC input for camera connection
- 4-pin XLR power input for reliable power supply
- Rotary dials and customizable buttons for quick adjustments

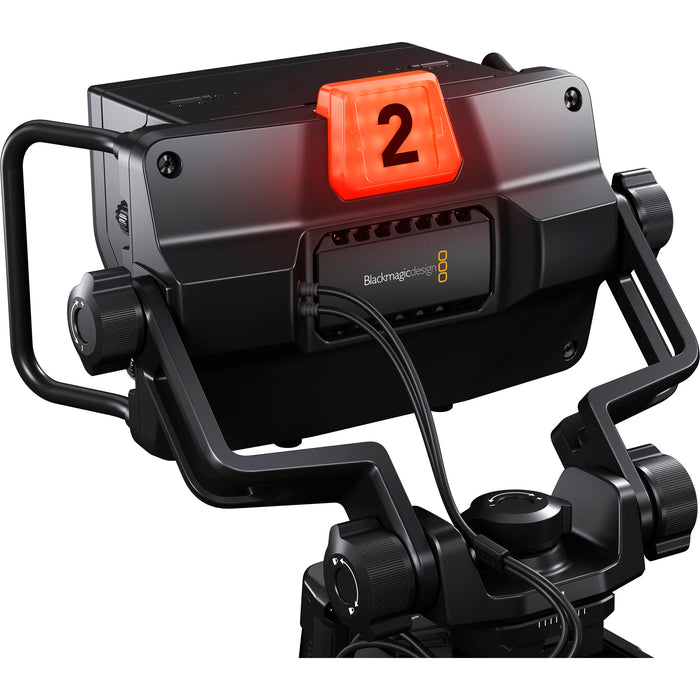

- Integrated LED tally light for on-air status
The Detailed Specifications for the Blackmagic Design URSA Studio Viewfinder G2:
- Type: 7-inch TFT LCD
- Resolution: 1920 x 1200
- Brightness: 2000 cd/m²
- Aspect Ratio: 16:10
- Touchscreen: No
- Pixels Per Inch (PPI): 323
- Refresh Rate: 60 Hz
- Image Controls: False Color, Focus Assist, Focus Peaking, Screen Markers
Inputs/Outputs:
- Video Input: 1 x BNC (3G-SDI)
- Power Input: 1 x 4-Pin XLR
- Data Input: 1 x USB-C 2.0
Mounting:
Power Requirements:
Physical Dimensions:
- Dimensions (W x H): 11.97 x 9.17 inches (30.4 x 23.29 cm) including bracket
- Weight: 5.3 lb (2.4 kg)
Environmental Conditions:
- Operating Temperature: 32 to 104°F (0 to 40°C)
- Storage Temperature: -4 to 140°F (-20 to 60°C)
- Relative Humidity: Up to 90% non-condensing
Additional Features:
- Detachable Sun Hood: Yes
- Adjustable Handles: Large side handles for easy angle adjustments
- Controls: Rotary dials, customizable buttons, and an LED tally light
- Metadata Support: Detects camera information embedded in the SDI signal, including status information, frame guides, focus peaking, tally, and more
- Screen Interface: On-screen meters and status information, including Camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more
