AIDA Imaging PTZ-NDI3-X20W Full HD NDI HX3 PTZ Camera with 20x Optical Zoom in White

AIDA Imaging Full HD NDI HX3 PTZ Camera with 20x Optical Zoom (White)

by Aida Imaging
Availability:
In stock 3-5 days
$2,374.00 - $2,374.00
$2,374.00
$2,374.00 - $2,374.00
$2,374.00

SKU: PTZ-NDI3-X20W

  • Overview
  • Features
  • Specifications

The AIDA Imaging PTZ-NDI3-X20W Full HD NDI HX3 PTZ Camera delivers professional 1080p performance with powerful 20x optical zoom and ultra-efficient NDI® HX3 workflow integration. Designed for broadcast, corporate AV, houses of worship, education, sports, and live streaming environments, this camera provides flexible IP and baseband connectivity in a compact, production-ready design.

With NDI® HX3 support, the PTZ-NDI3-X20W offers lower latency and improved image quality compared to previous NDI HX generations while maintaining efficient bandwidth usage. Simultaneous HDMI, 3G-SDI, and IP streaming outputs allow seamless integration into existing production workflows, whether you’re using TriCaster, vMix, OBS, or other IP-based systems.

The 20x optical zoom lens ensures crisp close-ups even at long distances, making it ideal for auditoriums, sanctuaries, conference rooms, sports venues, and live event spaces. Advanced PTZ control via IP, RS-232, or RS-485 ensures smooth camera movement and precise preset recall for professional multi-camera productions.

Built for reliability and clean installation, the PTZ-NDI3-X20W supports PoE+ for simplified single-cable deployment, reducing clutter while maintaining broadcast-quality output.

The Key Features of the AIDA Imaging PTZ-NDI3-X20W Full HD NDI HX3 PTZ Camera:

  • Full HD 1920x1080 resolution up to 60fps
  • NDI® HX3 support for high-quality, low-latency IP video
  • 20x optical zoom lens for long-distance image capture

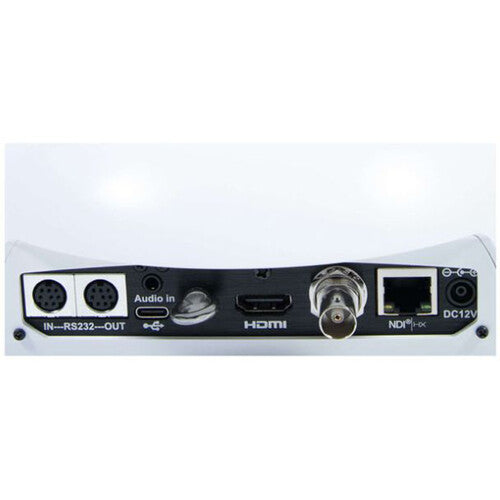

  • Simultaneous HDMI, 3G-SDI, and IP streaming outputs
  • PoE+ support for single-cable power and network connectivity
  • Smooth PTZ motor control with precise preset recall
  • Multiple control options: IP, RS-232, and RS-485
  • Ideal for broadcast, live streaming, corporate AV, houses of worship, and education
  • Compact form factor for wall, ceiling, or tripod mounting
  • Professional black finish for discreet installations

The Detailed Specifications for the AIDA Imaging PTZ-NDI3-X20W Full HD NDI HX3 PTZ Camera:

  • Model: PTZ-NDI3-X20W
  • Image Sensor: 1/2.8" CMOS
  • Effective Resolution: 1920 x 1080 (Full HD)
  • Frame Rates: Up to 1080p60
  • Optical Zoom: 20x
  • Digital Zoom: 16x
  • Lens: Auto-focus with wide-to-telephoto range
  • Field of View: Wide-angle to telephoto coverage
  • Video Outputs: NDI® HX3 (IP), HDMI, 3G-SDI
  • Network Interface: RJ45 Ethernet with PoE+
  • Control Interfaces: IP (VISCA over IP), RS-232, RS-485
  • PTZ Movement: Pan, tilt, and zoom with programmable presets
  • Power: PoE+ or DC power adapter
  • Mounting Options: Wall, ceiling, or tripod mountable
  • Color: White
  • Operating Environment: Indoor professional installations

No video available for this product.
