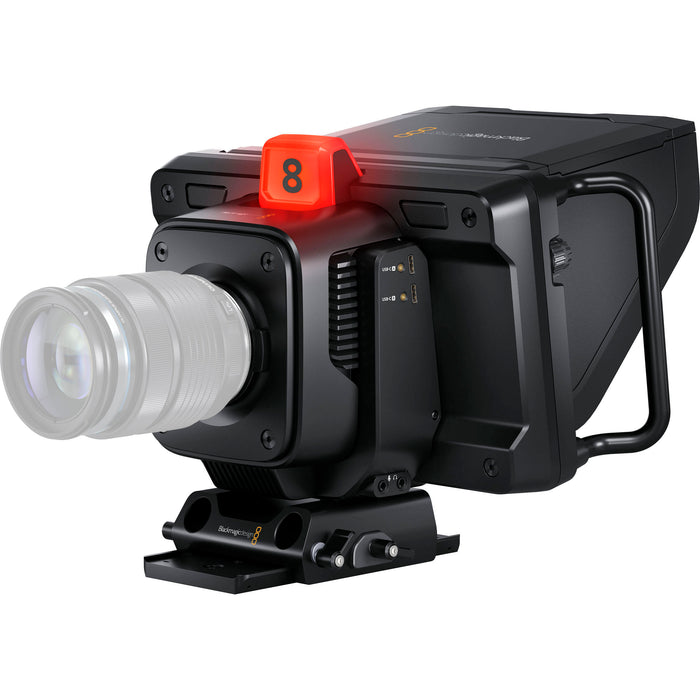

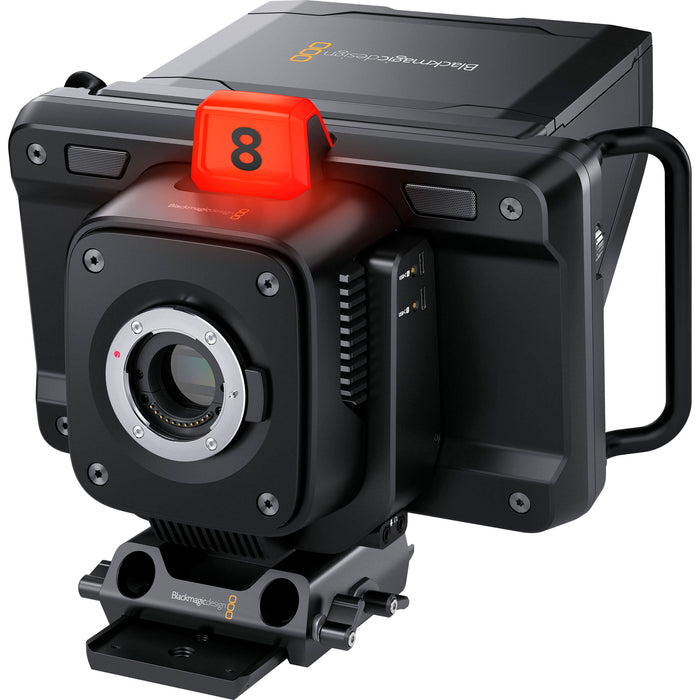

Compact All-in-One Design – Combines a high-resolution camera with a built-in 7-inch touchscreen monitor for live production.

4K Resolution & High Dynamic Range – Supports Ultra HD 3840 x 2160 resolution with 13 stops of dynamic range for cinematic image quality.

Micro Four Thirds (MFT) Lens Mount – Compatible with a wide range of MFT lenses and adaptable to other mounts with accessories.

12G-SDI & HDMI Connectivity – Offers 12G-SDI and HDMI 2.0 for high-quality video output and seamless integration with professional production equipment.

Built-in Touchscreen Controls – Features a 7-inch, 1920 x 1200 HDR touchscreen with on-screen settings, focus peaking, and frame guides.

Bright 2000-nit Display – Ensures excellent visibility even in outdoor or bright studio environments.

Dual Native ISO (0dB & 18dB Gain) – Provides superior low-light performance with a maximum sensitivity of f/11 at 2160p60 under 2000 lux.

USB-C Recording & Live Streaming Support – Allows recording directly to USB-C drives in Blackmagic RAW and supports live streaming with ATEM switchers.

Professional Audio Support – Features built-in stereo microphones and 3.5mm audio inputs/outputs for external microphones and monitoring.

Blackmagic Control Protocol Support – Enables remote camera control via SDI and HDMI when used with compatible ATEM switchers.

Lightweight & Portable – Designed for live broadcasting, online streaming, and remote productions with a compact yet robust build.

Compact All-in-One Design – Combines a high-resolution camera with a built-in 7-inch touchscreen monitor for live production.

4K Resolution & High Dynamic Range – Supports Ultra HD 3840 x 2160 resolution with 13 stops of dynamic range for cinematic image quality.

Micro Four Thirds (MFT) Lens Mount – Compatible with a wide range of MFT lenses and adaptable to other mounts with accessories.

12G-SDI & HDMI Connectivity – Offers 12G-SDI and HDMI 2.0 for high-quality video output and seamless integration with professional production equipment.

Built-in Touchscreen Controls – Features a 7-inch, 1920 x 1200 HDR touchscreen with on-screen settings, focus peaking, and frame guides.

Bright 2000-nit Display – Ensures excellent visibility even in outdoor or bright studio environments.

Dual Native ISO (0dB & 18dB Gain) – Provides superior low-light performance with a maximum sensitivity of f/11 at 2160p60 under 2000 lux.

USB-C Recording & Live Streaming Support – Allows recording directly to USB-C drives in Blackmagic RAW and supports live streaming with ATEM switchers.

Professional Audio Support – Features built-in stereo microphones and 3.5mm audio inputs/outputs for external microphones and monitoring.

Blackmagic Control Protocol Support – Enables remote camera control via SDI and HDMI when used with compatible ATEM switchers.

Lightweight & Portable – Designed for live broadcasting, online streaming, and remote productions with a compact yet robust build.

Camera Features:

• Effective Sensor Size: 17.78mm x 10mm (Four Thirds)

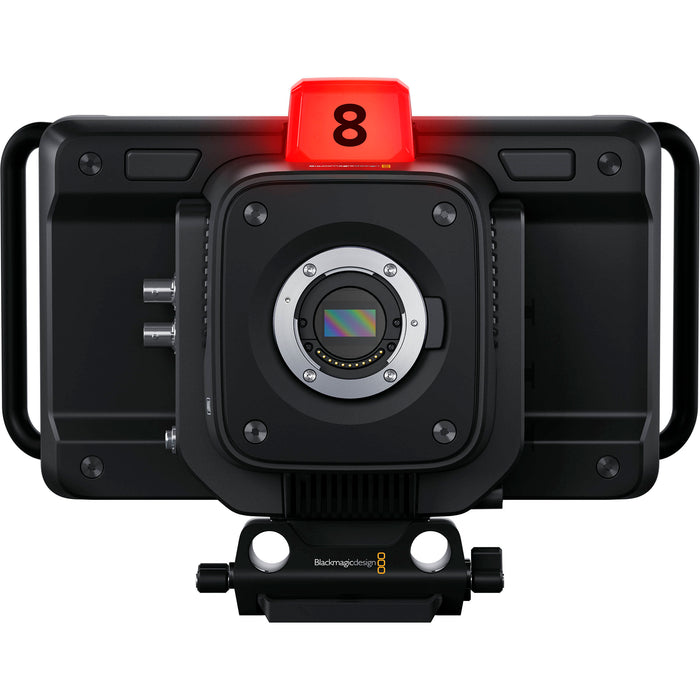

• Lens Mount: Active Micro Four Thirds (MFT) Mount
• Lens Control: Iris, focus, and zoom control on supported lenses
• Dynamic Range: 13 stops
• Dual Native ISO: 0dB and 18dB gain
• Sensitivity at 0dB Gain: f/11 at 2160p59.94; f/12 at 2160p50; measured at 2,000 lux with 89.9% reflectance
• Signal to Noise Ratio: 63dB for 2160p

Shooting Resolutions:

• 3840 x 2160 (Ultra HD) up to 60 fps

Frame Rates:

• 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps
• Off-speed frame rates up to 60 fps in Ultra HD

Focus:

• Auto-focus available with compatible lenses

Screen:

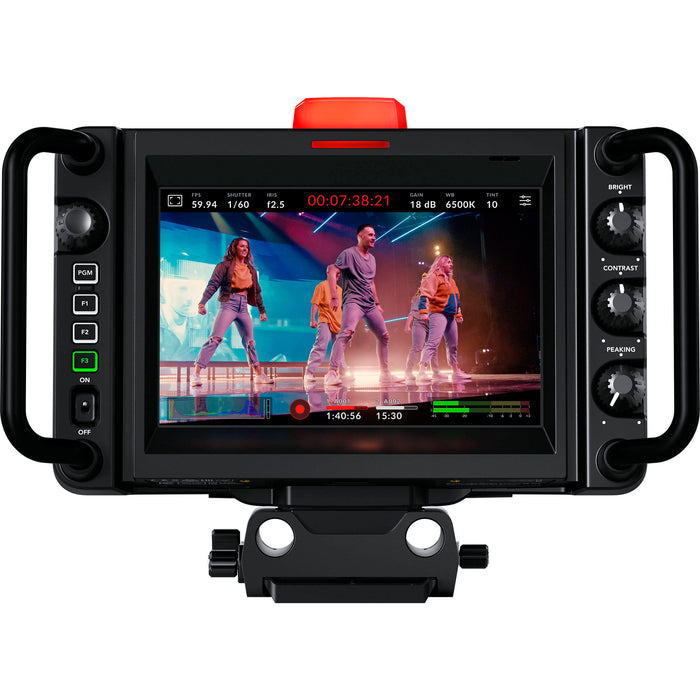

• Dimensions: 7-inch
• Resolution: 1920 x 1200
• Type: LCD capacitive touchscreen
• Brightness: 2000 nits

Controls:

• Touchscreen for camera settings and menus
• Rotary settings dial
• Program button
• Assignable function buttons (F1, F2, F3)
• Brightness, contrast, and peaking dials

Mounting Options:

• 2 x 1/4-inch tripod mounts
• 1 x 3/8-inch tripod mount

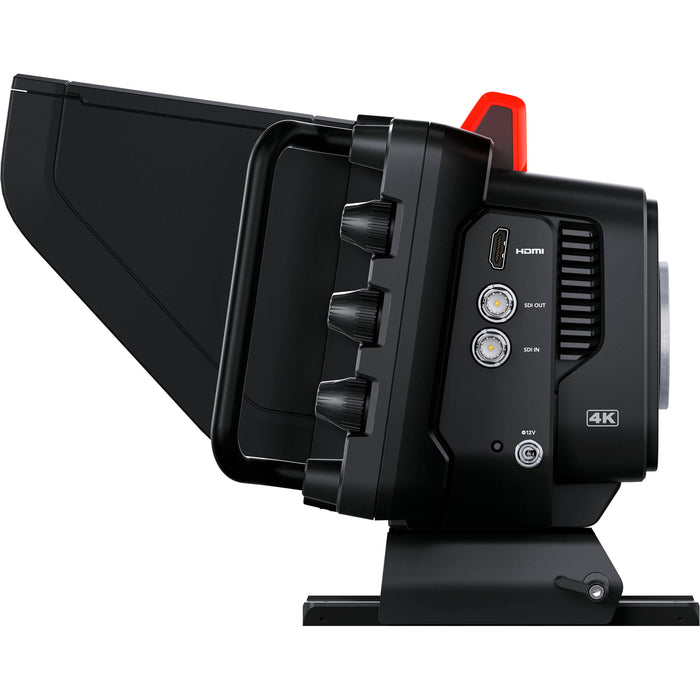

Connections:

• SDI Video Inputs: 1
• SDI Video Outputs: 1
• SDI Rates: 1.5G, 3G, 6G, 12G
• HDMI 2.0 Video Outputs: 1
• Analog Audio Input: 1 x 3.5mm stereo input (can also be used for timecode input)
• Analog Audio Output: 1 x 3.5mm TRRS mini jack for headphones with mic
• Reference Input: Program SDI input on camera

Audio:

• Microphone: Integrated stereo microphone
• Built-in Speaker: 1 x mono speaker

Standards:

• HD Video Standards: 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• SDI Compliance: SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
• SDI Audio Sampling: 48 kHz, 24-bit
• HDMI Audio Sampling: 48 kHz, 24-bit

Media:

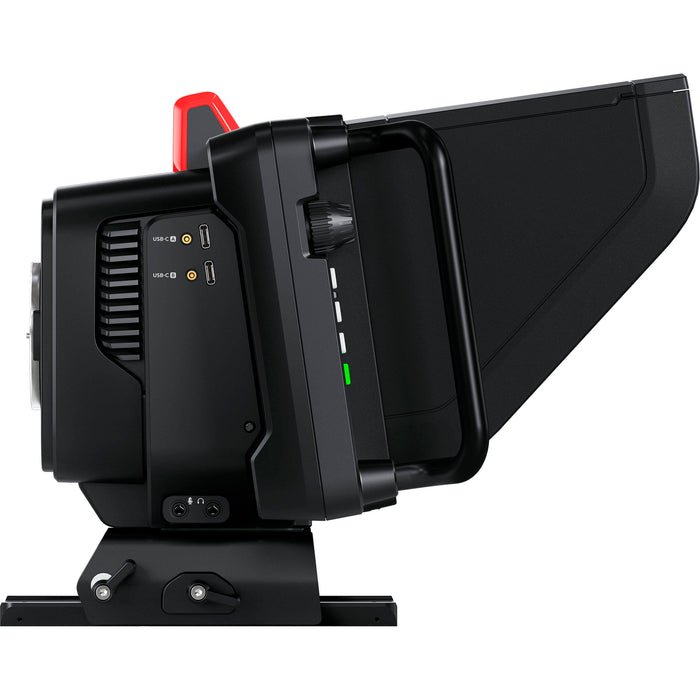

• Media: 2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW
• Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems
• Supported Codecs: Blackmagic RAW Constant Bitrate 3:1, 5:1, 8:1, 12:1; Blackmagic RAW Constant Quality Q0, Q1, Q3, Q5

Storage Features:

• Storage Type: 2 x USB-C 3.1 Gen 1 expansion ports for external media
• Recording Formats: Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3, Q5 in Ultra HD 3840 x 2160 at the selected frame rate
• Storage Rates: (Based on 30 fps)
