4K Ultra HD Resolution – Captures 3840 x 2160 resolution video with 13 stops of dynamic range for cinematic quality.

Micro Four Thirds (MFT) Lens Mount – Supports a wide range of interchangeable MFT lenses for flexible shooting options.

Built-in ND Filters – Includes motorized ND filters (Clear, 2-stop, 4-stop, 6-stop) for exposure control in varying lighting conditions.

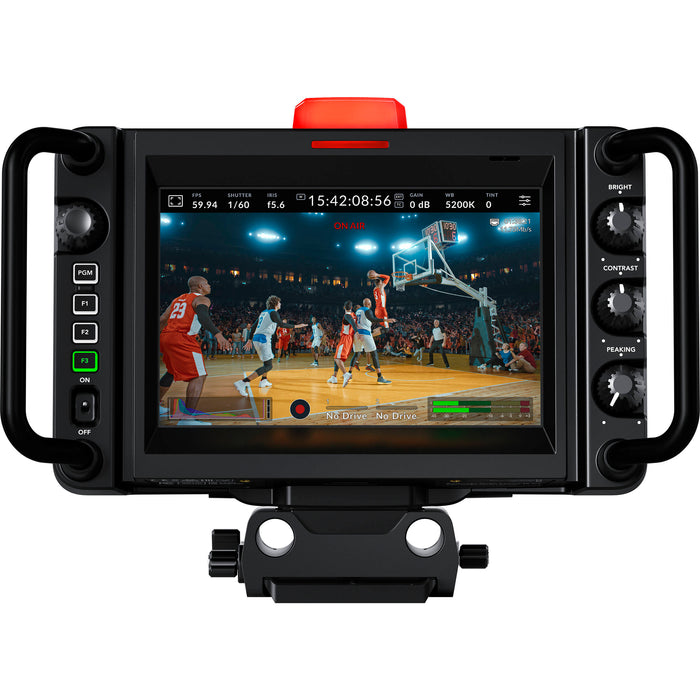

Bright 7-inch HDR Touchscreen – Features a 2000-nit 1920 x 1200 touchscreen with customizable focus peaking, exposure tools, and frame guides.

Dual Native ISO – Provides superior low-light performance with 0dB and 18dB gain settings for high-quality imaging in different lighting conditions.

12G-SDI & HDMI Connectivity – Supports 12G-SDI output and HDMI 2.0 output for seamless integration with professional broadcast and live production setups.

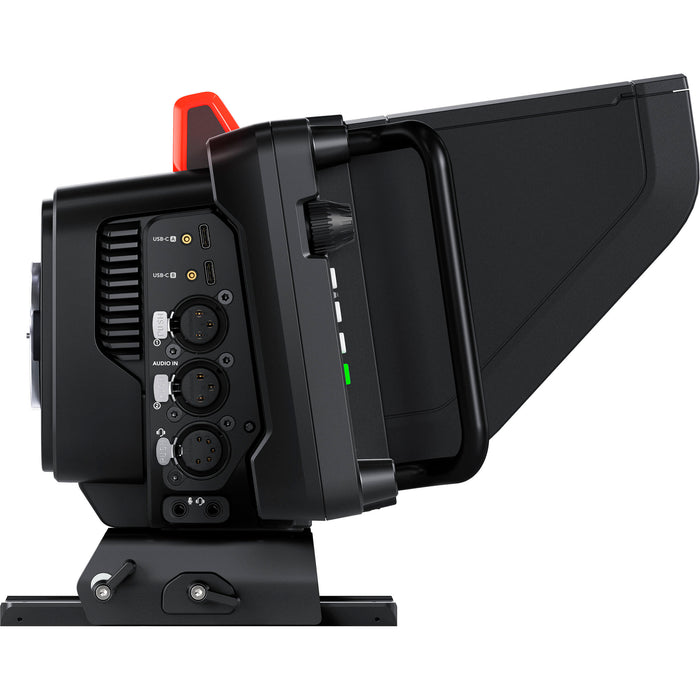

XLR Audio Inputs – Two balanced XLR audio inputs with phantom power support for professional microphones and line-level audio sources.

USB-C Recording & Live Streaming – Supports direct recording to USB-C drives in Blackmagic RAW and live streaming via Ethernet.

Tally & Talkback Support – Integrated SDI tally indicators and two-way talkback communication for seamless production workflows.

Lightweight & Portable Design – Built for live events, broadcast production, and streaming, with a compact and professional form factor.

4K Ultra HD Resolution – Captures 3840 x 2160 resolution video with 13 stops of dynamic range for cinematic quality.

Micro Four Thirds (MFT) Lens Mount – Supports a wide range of interchangeable MFT lenses for flexible shooting options.

Built-in ND Filters – Includes motorized ND filters (Clear, 2-stop, 4-stop, 6-stop) for exposure control in varying lighting conditions.

Bright 7-inch HDR Touchscreen – Features a 2000-nit 1920 x 1200 touchscreen with customizable focus peaking, exposure tools, and frame guides.

Dual Native ISO – Provides superior low-light performance with 0dB and 18dB gain settings for high-quality imaging in different lighting conditions.

12G-SDI & HDMI Connectivity – Supports 12G-SDI output and HDMI 2.0 output for seamless integration with professional broadcast and live production setups.

XLR Audio Inputs – Two balanced XLR audio inputs with phantom power support for professional microphones and line-level audio sources.

USB-C Recording & Live Streaming – Supports direct recording to USB-C drives in Blackmagic RAW and live streaming via Ethernet.

Tally & Talkback Support – Integrated SDI tally indicators and two-way talkback communication for seamless production workflows.

Lightweight & Portable Design – Built for live events, broadcast production, and streaming, with a compact and professional form factor.

Camera Features:

• Effective Sensor Size: 17.78mm x 10mm (Four Thirds)
• Lens Mount: Active Micro Four Thirds (MFT) Mount
• Lens Control: Iris, focus, and zoom control on supported lenses
• Dynamic Range: 13 stops
• Dual Native ISO: 0dB and 18dB gain
• Sensitivity at 0dB Gain: f/11 at 2160p59.94; f/12 at 2160p50; measured at 2,000 lux with 89.9% reflectance
• Signal to Noise Ratio: 63dB for 2160p

Shooting Resolutions:

• 3840 x 2160 (Ultra HD) up to 60 fps

Frame Rates:

• 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps
• Off-speed frame rates up to 60 fps in Ultra HD

Focus:

• Auto-focus available with compatible lenses

Screen:

• Dimensions: 7-inch
• Resolution: 1920 x 1200
• Type: LCD capacitive touchscreen
• Brightness: 2000 nits

Controls:

• Touchscreen for camera settings and menus
• Rotary settings dial
• Program button
• Assignable function buttons (F1, F2, F3)
• Brightness, contrast, and peaking dials

Mounting Options:

• 2 x 1/4-inch tripod mounts
• 1 x 3/8-inch tripod mount

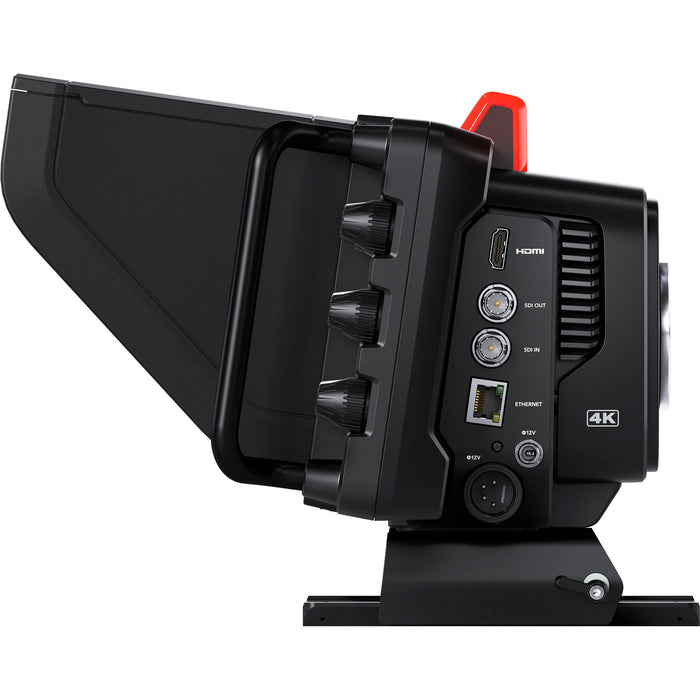

Connections:

• SDI Video Inputs: 1
• SDI Video Outputs: 1
• SDI Rates: 1.5G, 3G, 6G, 12G
• HDMI 2.0 Video Outputs: 1
• Analog Audio Input: 1 x 3.5mm stereo input (can also be used for timecode input)
• Analog Audio Output: 1 x 3.5mm TRRS mini jack for headphones with mic
• Reference Input: Program SDI input on camera

Audio:

• Microphone: Integrated stereo microphone
• Built-in Speaker: 1 x mono speaker

Standards:

• HD Video Standards: 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• SDI Compliance: SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
• SDI Audio Sampling: 48 kHz, 24-bit
• HDMI Audio Sampling: 48 kHz, 24-bit

Media:

• Media: 2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW
• Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems
• Supported Codecs: Blackmagic RAW Constant Bitrate 3:1, 5:1, 8:1, 12:1; Blackmagic RAW Constant Quality Q0, Q1, Q3, Q5

Storage Features:

• Storage Type: 2 x USB-C 3.1 Gen 1 expansion ports for external media
• Recording Formats: Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3, Q5 in Ultra HD 3840 x 2160 at the selected frame rate
• Storage Rates: (Based on 30 fps)

Control:

• External Control: Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and lens from tripod handles; Blackmagic Control Protocol over SDI and HDMI for external control when used with a compatible ATEM switcher; Camera Control REST API over
