Long-Distance SMPTE Fiber Extension – Connects cameras over standard SMPTE hybrid fiber optic cables for power, video, audio, and camera control.

12G-SDI Inputs & Outputs – Supports two 12G-SDI outputs for Ultra HD up to 60p and three 12G-SDI return feeds for monitoring and camera control.

Integrated Talkback System – SDI-embedded channels 15 & 16 for production talkback with an analog in/out option for engineering and production communication.

4 Balanced XLR Audio Outputs – Provides high-quality camera audio output for broadcast and live production workflows.

Support for HD & Ultra HD – Handles 720p, 1080p, 1080PsF, 1080i, and 2160p video resolutions for versatile production needs.

USB-C Interface – Allows for firmware updates and system configuration.

Multi-Rate SDI Support – Automatic switching between HD, 3G-SDI, 6G-SDI, and 12G-SDI formats for seamless integration.

Multiple Color Space Options – Supports REC 709 and REC 2020 color spaces for professional-grade color accuracy.

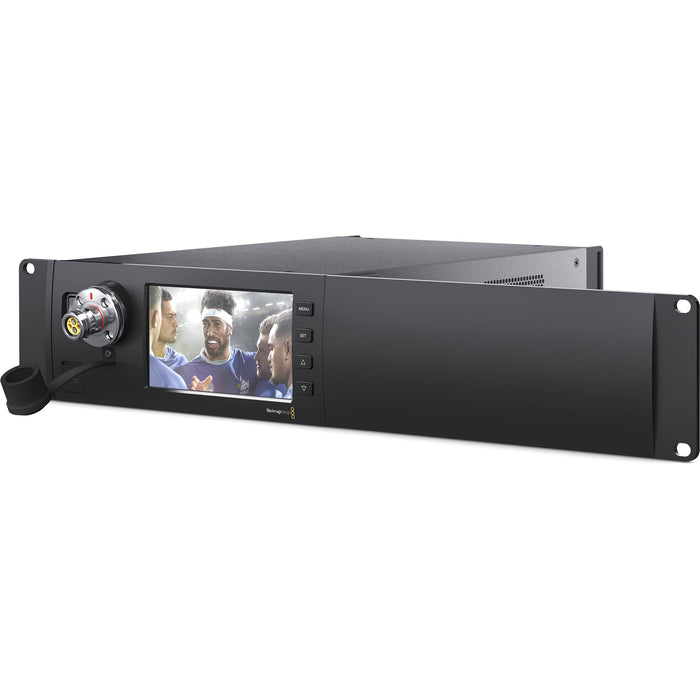

Rack-Mountable Design – Built for studio and live production environments, ensuring a durable and compact form factor.

Long-Distance SMPTE Fiber Extension – Connects cameras over standard SMPTE hybrid fiber optic cables for power, video, audio, and camera control.

12G-SDI Inputs & Outputs – Supports two 12G-SDI outputs for Ultra HD up to 60p and three 12G-SDI return feeds for monitoring and camera control.

Integrated Talkback System – SDI-embedded channels 15 & 16 for production talkback with an analog in/out option for engineering and production communication.

4 Balanced XLR Audio Outputs – Provides high-quality camera audio output for broadcast and live production workflows.

Support for HD & Ultra HD – Handles 720p, 1080p, 1080PsF, 1080i, and 2160p video resolutions for versatile production needs.

USB-C Interface – Allows for firmware updates and system configuration.

Multi-Rate SDI Support – Automatic switching between HD, 3G-SDI, 6G-SDI, and 12G-SDI formats for seamless integration.

Multiple Color Space Options – Supports REC 709 and REC 2020 color spaces for professional-grade color accuracy.

Rack-Mountable Design – Built for studio and live production environments, ensuring a durable and compact form factor.

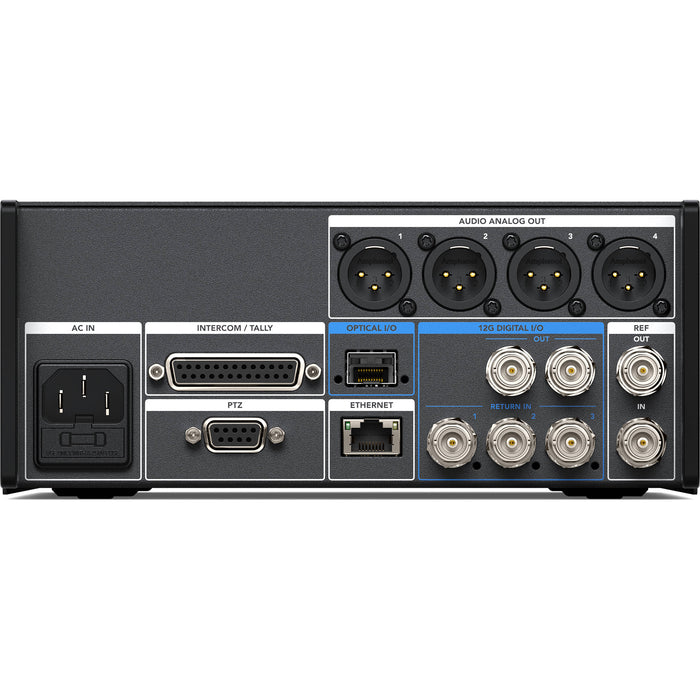

Connections:

• Optical Fiber Input: 1 x SMPTE Hybrid Fiber Optic with Female SMPTE 304 connector
• SDI Video Inputs: 3 x 12G-SDI for return feeds with program, camera control, tally, genlock, and intercom on Return 1
• SDI Video Outputs: 2 x 12G-SDI for Ultra HD up to 60p
• Talkback Audio: SDI channels 15 and 16 for production; analog in and out supported via 25-pin connector for production and engineering talkback
• Balanced XLR Audio Outputs: 4 x camera analog audio outputs
• Optical Fiber Output: 1 x Optical I/O via 10 Gb-E (not currently active)
• Computer Interface: 1 x USB-C

Supported Video Standards:

• HD Video Standards:
• Ultra HD Video Standards:

Compliance and Sampling:

• SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 424M Level B, 425M
• Audio Sampling: 48 kHz, 24-bit A/D conversion
• Video Sampling: 4:2:2
• Color Precision: 10-bit
• Color Space: REC 709, REC 2020
• Multiple Rate Support: SDI switches between HD, 3G-SDI, 6G-SDI, and 12G-SDI

Software:

• Included: Camera Utility for firmware updates
• Operating Systems: Mac OS X 10.11 El Capitan, macOS 10.12 Sierra or later; Windows 8.1 or Windows 10

Power Requirements:

• Power Supply: 110 - 240V AC input

Environmental Specifications:

• Operating Temperature: 32° to 104° F (0° to 40° C)
• Storage Temperature: -4° to 113° F (-20° to 45° C)
• Relative Humidity: 0% to 90% non-condensing

Physical Dimensions:

• Dimensions (W x H x D): 8.3 x 3.5 x 14.6 inches (21 x 8.8 x 37.2 cm)
• Weight: 6.2 lb (2.8 kg)
