• 8K Video Conversion: Converts high-quality SDI signals to HDMI outputs, supporting 8K resolution, making it ideal for ultra-high-definition video monitoring.
• HDR Support: Fully supports HDR (High Dynamic Range) formats such as PQ (Perceptual Quantizer) and HLG (Hybrid Log Gamma), allowing for enhanced color grading and dynamic range.
• Multiple Input and Output Options: Includes 4 x 12G-SDI inputs and HDMI 2.0 outputs, offering flexibility for different video workflows and compatibility with various devices.
• Dual and Quad Link Support: Offers dual and quad link 12G-SDI for high-bandwidth 8K video, enabling advanced video monitoring setups.
• Real-time Monitoring: Features on-screen scopes and real-time video output for precise signal monitoring and diagnostics.
• Flexible Audio Output: Supports embedded audio on both SDI and HDMI outputs, with analog RCA audio output for easy integration with audio systems.
• Compact and Portable Design: A small form factor (21.01 x 17.6 x 4.39 cm) allows for easy integration into studio or on-location setups.
• USB and Ethernet Control: Control and update the device via USB-C or Ethernet connection, simplifying setup and maintenance.
• Multiple Video Format Support: Supports a wide range of video formats from HD to 8K, including UHD, DCI 4K, and 2K, for maximum versatility.
• Power Efficient: Consumes just 25 watts of power, making it energy-efficient while providing high-quality performance.

• 8K Video Conversion: Converts high-quality SDI signals to HDMI outputs, supporting 8K resolution, making it ideal for ultra-high-definition video monitoring.
• HDR Support: Fully supports HDR (High Dynamic Range) formats such as PQ (Perceptual Quantizer) and HLG (Hybrid Log Gamma), allowing for enhanced color grading and dynamic range.
• Multiple Input and Output Options: Includes 4 x 12G-SDI inputs and HDMI 2.0 outputs, offering flexibility for different video workflows and compatibility with various devices.
• Dual and Quad Link Support: Offers dual and quad link 12G-SDI for high-bandwidth 8K video, enabling advanced video monitoring setups.
• Real-time Monitoring: Features on-screen scopes and real-time video output for precise signal monitoring and diagnostics.
• Flexible Audio Output: Supports embedded audio on both SDI and HDMI outputs, with analog RCA audio output for easy integration with audio systems.
• Compact and Portable Design: A small form factor (21.01 x 17.6 x 4.39 cm) allows for easy integration into studio or on-location setups.
• USB and Ethernet Control: Control and update the device via USB-C or Ethernet connection, simplifying setup and maintenance.
• Multiple Video Format Support: Supports a wide range of video formats from HD to 8K, including UHD, DCI 4K, and 2K, for maximum versatility.
• Power Efficient: Consumes just 25 watts of power, making it energy-efficient while providing high-quality performance.

Key Specifications:

Input Video Formats:

HD Video Standards: 720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60; 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30.
2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI; 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI.
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60.
8K Video Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60.

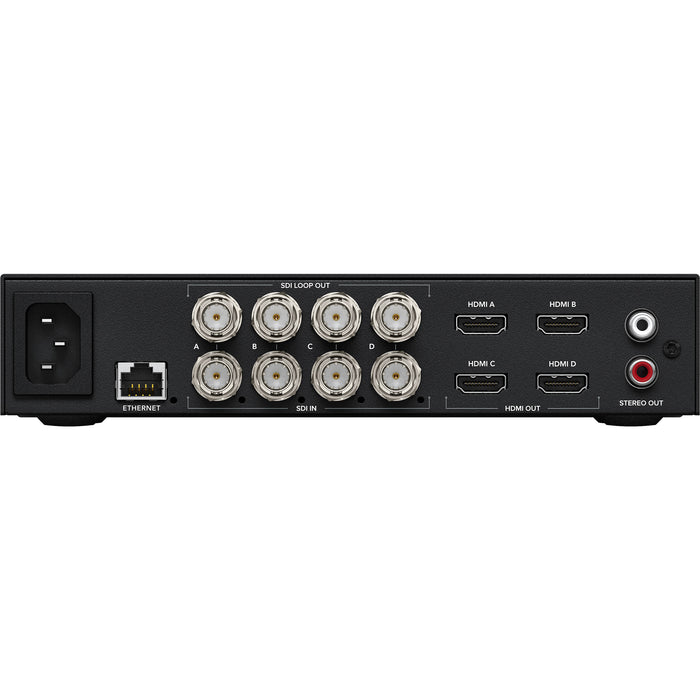

Inputs:

4 x 12G-SDI HD/2K/4K/8K auto-switching.
Dual and quad link 12G-SDI for 8K only.
Outputs:

4 x HDMI 2.0 type A connectors with support for HD, UHD, and 4K in single link or 4320p60 in Quad Link.
4 x 12G-SDI loop outputs.
Audio Outputs:

2 channels analog audio via RCA connectors.
16 channels of embedded audio on all SDI loop outputs and 8 channels on the HDMI outputs.
Multi Rate Support:

1.5G, 3G, 6G, 12G, 2SI Dual Link 12G-SDI, 2SI Quad Link 12G-SDI, Square Division Quad Link 12G-SDI.
Software Control:

Mac OS X™ and Windows™ software upgrade via USB-C or Ethernet.
Power Requirements:

1 x built-in international AC power supply with IEC C14 inlet. IEC power cable required. 100 - 240V AC Input.
Power Consumption: 25 Watts.
Operational Voltage Range: 100 - 240V AC.
Physical Specifications:

Dimensions: 21.01 x 17.6 x 4.39 cm.
Weight: 1.18 kg.
Environmental Specifications:

Operating Temperature: 0° to 40°C (32° to 104°F).
Storage Temperature: -20° to 60°C (-4° to 140°F).
Relative Humidity: 0% to 90% non-condensing.
