The Canon CR-N500W 4K UHD PTZ Camera is a high-performance remote-controlled camera designed for professional live streaming, broadcasting, and video production. Featuring 15x optical zoom, Dual Pixel Autofocus (DPAF), and 4K UHD resolution, this PTZ (Pan-Tilt-Zoom) camera ensures stunning image quality, smooth operation, and versatile connectivity options. Whether used for houses of worship, corporate events, education, or live sports, the CR-N500W delivers reliable and dynamic video capture with precise control and seamless integration into existing production setups.

The Key Features of the Canon CR-N500W 4K UHD PTZ Camera:

• 4K UHD & Full HD Video Quality – Capture high-resolution 4K UHD (3840x2160) at 30fps and Full HD (1920x1080) at up to 60fps, ensuring crisp, detailed footage.
• ✔ 15x Optical Zoom Lens – The 4K UHD 1” CMOS sensor pairs with a 15x optical zoom (25.5mm–382.5mm equivalent in 35mm) to produce high-quality images from close-up shots to wide-angle views.
• ✔ Dual Pixel Autofocus (DPAF) – Canon’s advanced DPAF technology delivers fast and accurate focusing, ideal for capturing moving subjects in live events and broadcasts.
• ✔ Smooth PTZ Movement – Precision pan, tilt, and zoom mechanisms allow for smooth, quiet, and accurate motion control, making it ideal for professional productions.
• ✔ IP Streaming & Remote Control – The CR-N500 supports IP streaming protocols, including RTMP, RTP/RTSP, NDI|HX, and Canon XC Protocol, allowing seamless remote operation via Ethernet.
• ✔ Low-Light Performance & Image Stabilization – Features a wide f/2.8–4.5 aperture, DIGIC DV6 processor, and noise reduction, ensuring excellent performance in low-light environments.

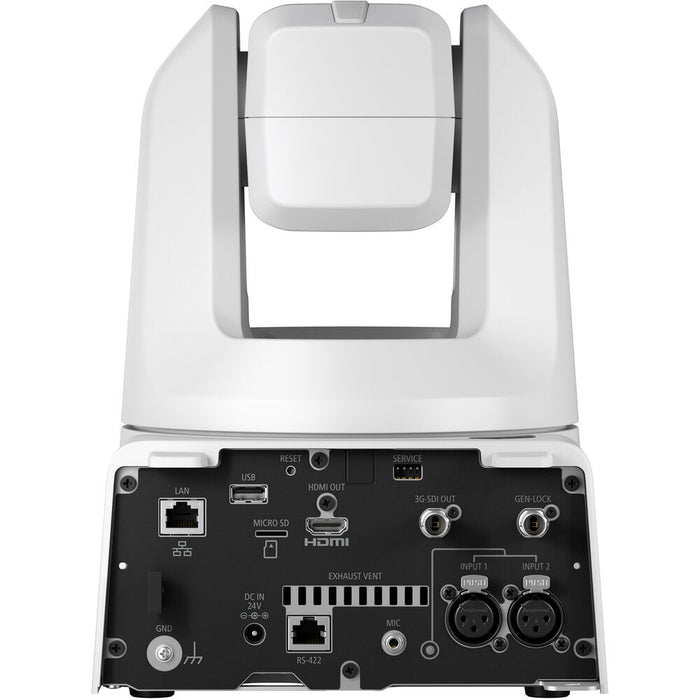

• ✔ Multiple Output Options – Connect easily with HDMI, 3G-SDI, and USB outputs, providing flexibility for integration into various workflows.
• ✔ Professional Audio Support – Includes a 3.5mm mic input and dual XLR audio inputs, ensuring high-quality audio capture for live events and productions.
• ✔ Customizable Presets & Control Options – Store multiple camera position presets and control via Canon’s Remote Camera Control App, joystick controllers, or web UI.
• ✔ PoE+ Support – Simplify installation with Power over Ethernet (PoE+), reducing cable clutter and enabling easy power and control over a single Ethernet connection.

The Detailed Specifications for the Canon CR-N500W 4K UHD PTZ Camera:

Image Sensor: 1.0-inch 4K UHD CMOS Sensor

Effective Pixels: 8.29 Megapixels

Lens: 15x Optical Zoom (f/2.8–4.5, 25.5mm–382.5mm 35mm equivalent)

Zoom Range: 15x Optical + 20x Digital Zoom

Autofocus System: Dual Pixel CMOS Autofocus with Face & Eye Detection

Video Resolution:

• 4K UHD (3840x2160) at 30fps
• Full HD (1920x1080) at 60fps

Pan/Tilt Range:

• Pan: ±170°
• Tilt: -30° to +90°

Connectivity:

• HDMI
• 3G-SDI
• USB
• IP Streaming (RTMP, RTP/RTSP, NDI|HX, XC Protocol)

Control Methods:

• Web UI
• Canon Remote Camera Control App
• Joystick Controller (RC-IP100 or third-party)

Audio Input:

• 3.5mm Stereo Mini Jack
• Dual XLR Inputs

Power Supply:

• DC 24V
• PoE+ (Power over Ethernet)

Dimensions: 6.5 x 7.1 x 7.2 inches (165 x 179 x 182 mm)

Weight: 6.6 lbs (3.0 kg)
