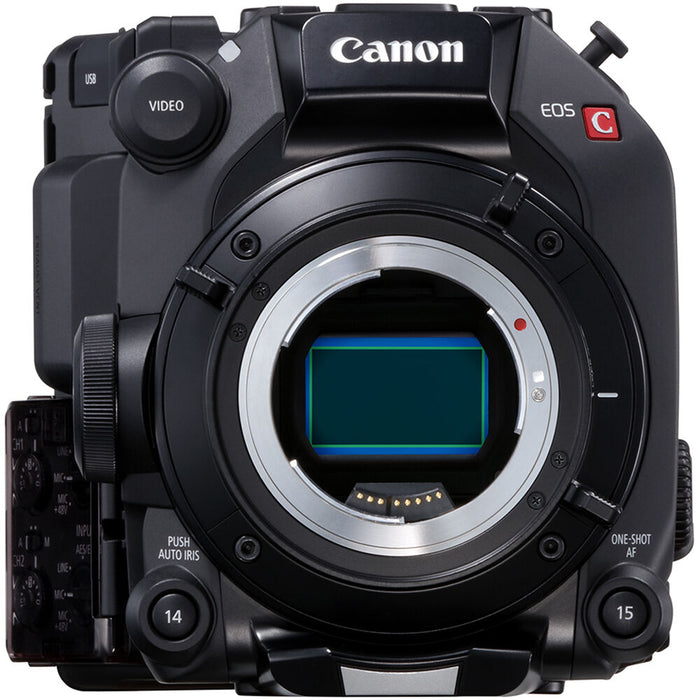

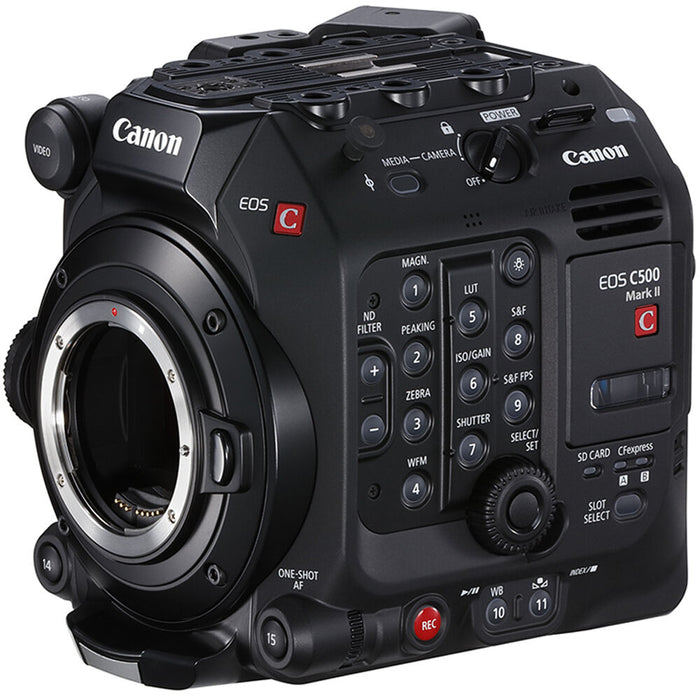

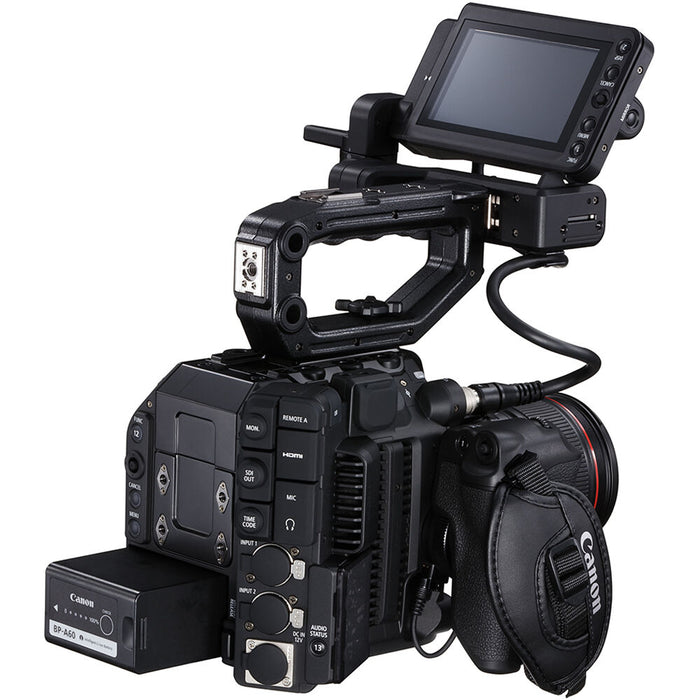

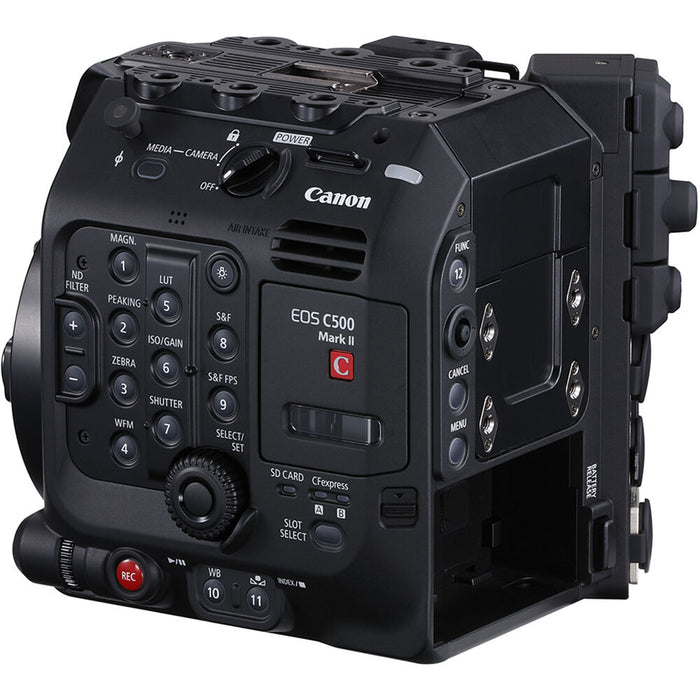

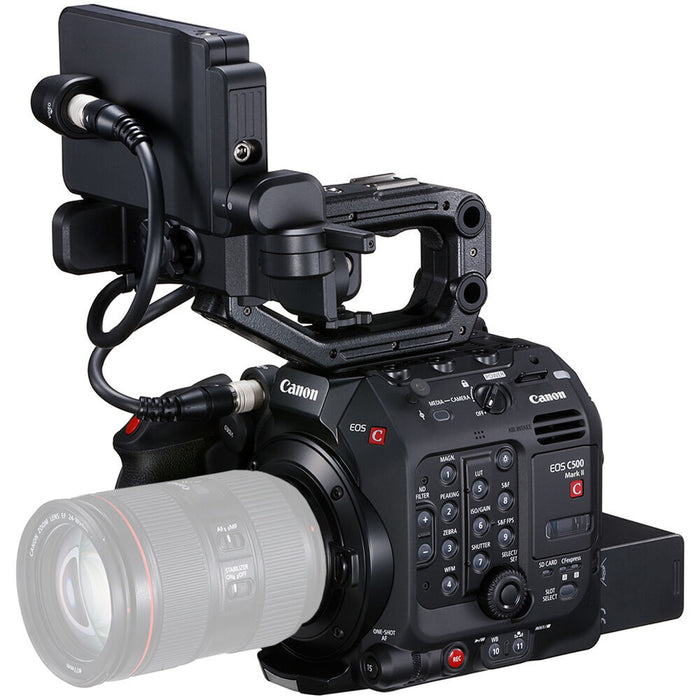

The Canon EOS C500 Mark II is a high-end, full-frame cinema camera designed for professional filmmakers. It features a modular design that allows for flexible rigging, a 5.9K full-frame CMOS sensor for stunning image quality, and Canon’s Dual Pixel CMOS Autofocus for precise subject tracking. With internal Cinema RAW Light recording, up to 4K 4:2:2 10-bit XF-AVC, and support for various lens mounts, the C500 Mark II delivers industry-leading versatility and performance.

The Key Features of the Canon EOS C500 Mark II:

• 5.9K Full-Frame CMOS Sensor – Delivers outstanding image quality with a wide dynamic range.
• Internal Cinema RAW Light Recording – Records 5.9K Cinema RAW Light internally to dual CFexpress cards.
• Dual Pixel CMOS AF – Ensures smooth and accurate autofocus, even in challenging conditions.
• Modular Design – Customizable with a variety of accessories and expansion modules.
• Interchangeable Lens Mount System – Supports EF, PL, and other lens options.
• 4K 4:2:2 10-bit XF-AVC Recording – High-quality compressed format for efficient post-production workflows.
• Dual CFexpress Card Slots – Enables simultaneous or relay recording for redundancy and extended shooting.
• Electronic Image Stabilization – Reduces camera shake for smooth, professional footage.
• 12G-SDI and HDMI Outputs – Allows for high-quality external monitoring and recording.
• High Frame Rate Recording – Captures up to 60 fps in 5.9K and up to 120 fps in 2K crop mode.

The Detailed Specifications for the Canon EOS C500 Mark II:

Sensor & Imaging

• Sensor Type: 5.9K Full-Frame CMOS Sensor
• Effective Pixels: Approx. 18.69 Megapixels
• Dynamic Range: Over 15 stops
• Dual Pixel CMOS Autofocus: Yes

Recording & Formats

• Internal Recording Formats:
• Media: Dual CFexpress slots + SD card for proxy files
• Frame Rates:
• Color Sampling: 4:2:2 10-bit (XF-AVC)

Lens & Mount

• Interchangeable Mount System: EF (standard), optional PL mount
• ND Filters: Built-in motorized ND filters (2/4/6/8/10 stops)

Audio & Connectivity

• Audio Inputs: 2x XLR + 3.5mm mic input

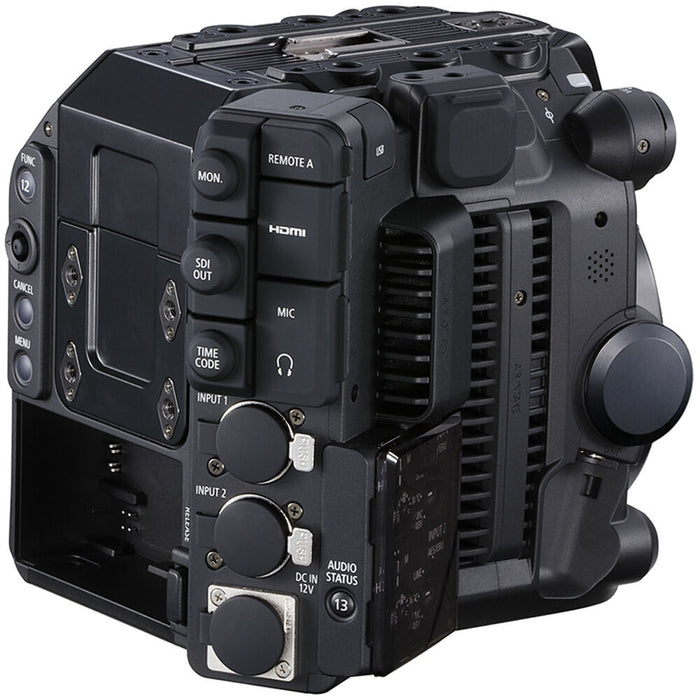

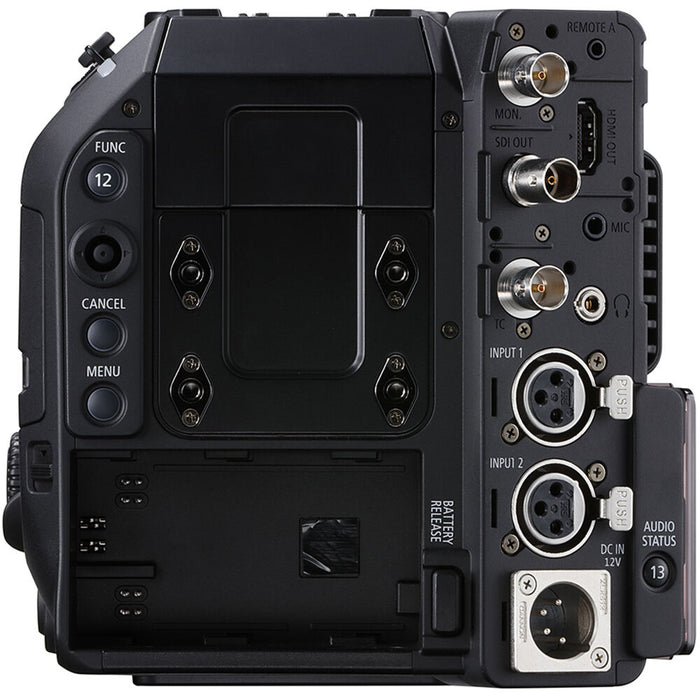

• Outputs: 12G-SDI, HDMI, Timecode In/Out, Genlock
• Wireless: Built-in Wi-Fi & Ethernet for remote control and FTP

Body & Power

• Weight: Approx. 3.9 lbs (body only)
• Battery Compatibility: Canon BP-A series
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
