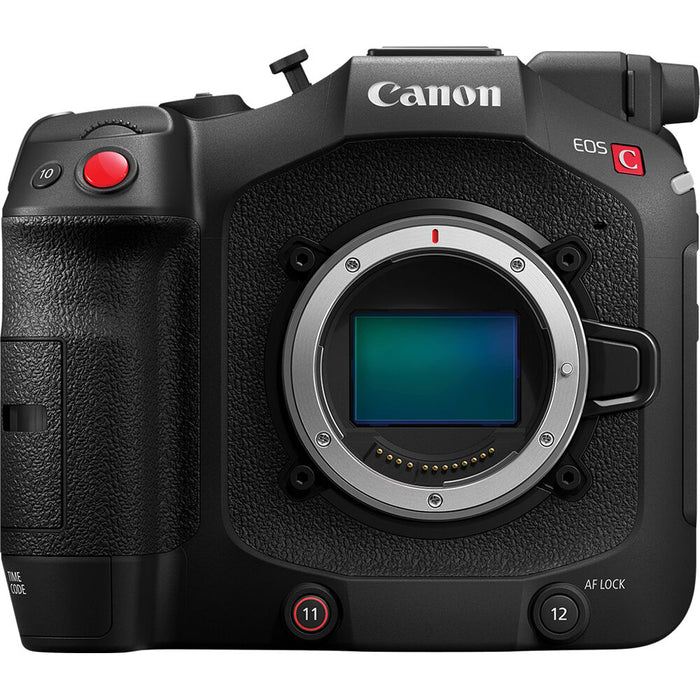

The Canon EOS C80 is a compact and lightweight 6K full-frame cinema camera designed for professional filmmakers seeking exceptional image quality and versatility. Equipped with a back-illuminated stacked CMOS sensor and the RF mount system, the EOS C80 offers enhanced light sensitivity, wide dynamic range, and compatibility with a broad range of lenses. Its advanced Dual Pixel CMOS AF II ensures precise autofocus, while multiple recording formats and professional connectivity options make it a versatile tool for various production environments.

The Key Features of the Canon EOS C80:

• 6K Full-Frame Back-Illuminated Stacked CMOS Sensor: Delivers high-resolution imagery with 16 stops of dynamic range, capturing stunning detail and color.

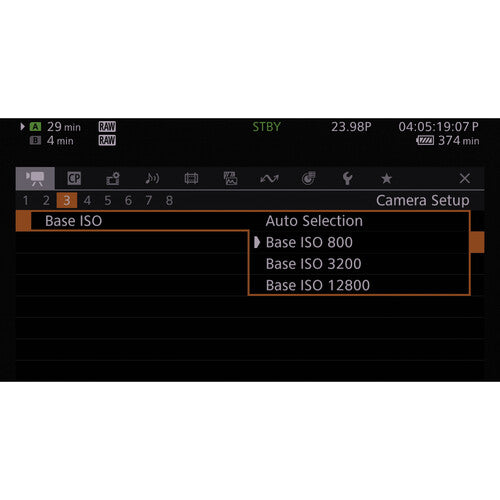

• Triple Base ISO: Offers optimal signal-to-noise ratios at ISO settings of 800, 3200, and 12800, allowing for flexibility in diverse lighting conditions.
• RF Mount System: Provides compatibility with Canon's RF lenses and adaptability to PL and EF mounts, expanding creative possibilities.

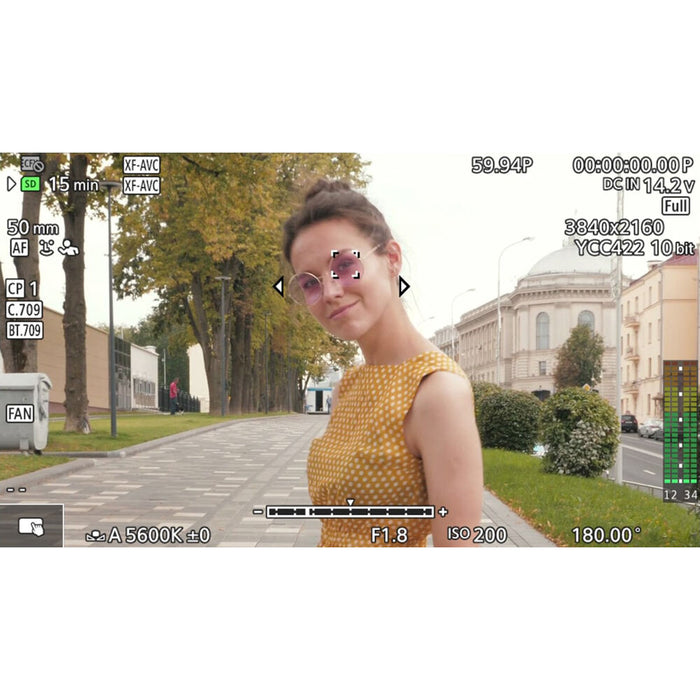

• Dual Pixel CMOS AF II: Features EOS iTR AF X technology for accurate and responsive autofocus across the entire sensor, including face and eye detection.
• Cinema RAW Light Recording: Enables internal 12-bit recording for maximum flexibility in post-production workflows.
• Multiple Recording Formats: Supports XF-HEVC S, XF-AVC S, and XF-AVC formats, offering oversampled 4K 4:2:2 10-bit recording with detailed metadata.
• 5-Axis Image Stabilization: Combines electronic and optical stabilization to ensure smooth and steady footage, even during handheld shooting.
• Professional Connectivity: Includes dual SD card slots compatible with UHS-II cards, 12G-SDI, HDMI outputs, and built-in Wi-Fi and Ethernet for seamless integration into various production setups.

The Detailed Specifications for the Canon EOS C80:

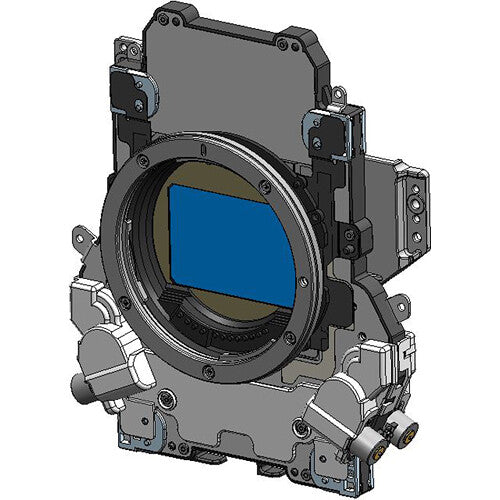

Sensor: 6K full-frame back-illuminated stacked CMOS sensor

Effective Pixels: Approximately 19.05 megapixels (6008 x 3170)

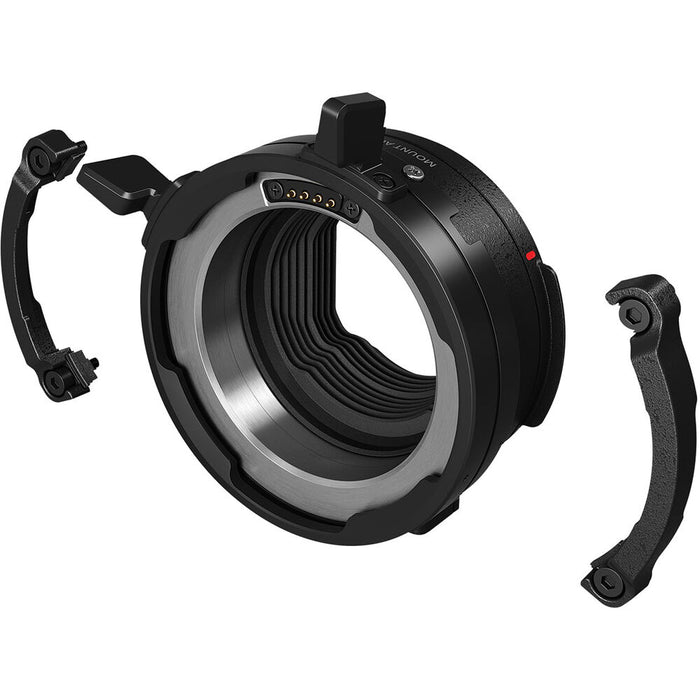

Lens Mount: Canon RF mount; adaptable to PL and EF mounts

ISO Range: 160–25600 (expandable to 100–102400); triple base ISO at 800, 3200, and 12800

Recording Resolutions:

• 6K RAW: 6000 x 3164 up to 30p
• 4K DCI/UHD: up to 120p in Super 35mm mode
• 2K/Full HD: up to 180p

Recording Formats: Cinema RAW Light, XF-AVC, XF-AVC S, XF-HEVC S

Dynamic Range: 16 stops

Autofocus System: Dual Pixel CMOS AF II with EOS iTR AF X; face, eye, head, body, and animal detection

Image Stabilization: 5-axis electronic IS; compatible with optical IS

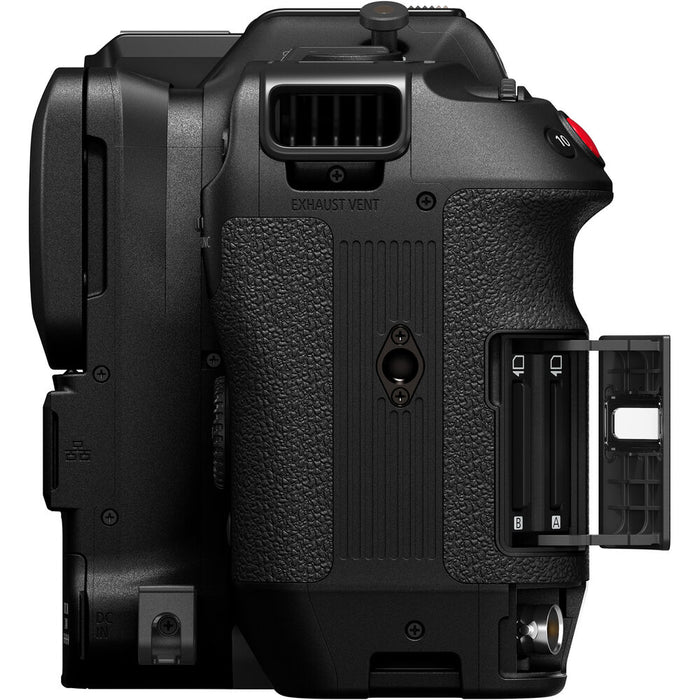

Media Slots: Dual SD card slots; supports SD UHS-II, V90-class cards

Connectivity:

• 12G-SDI output
• Full-size HDMI output
• Ethernet port
• Built-in Wi-Fi
• Two 3-pin mini XLR audio inputs with 48V phantom power
• 3.5mm microphone input

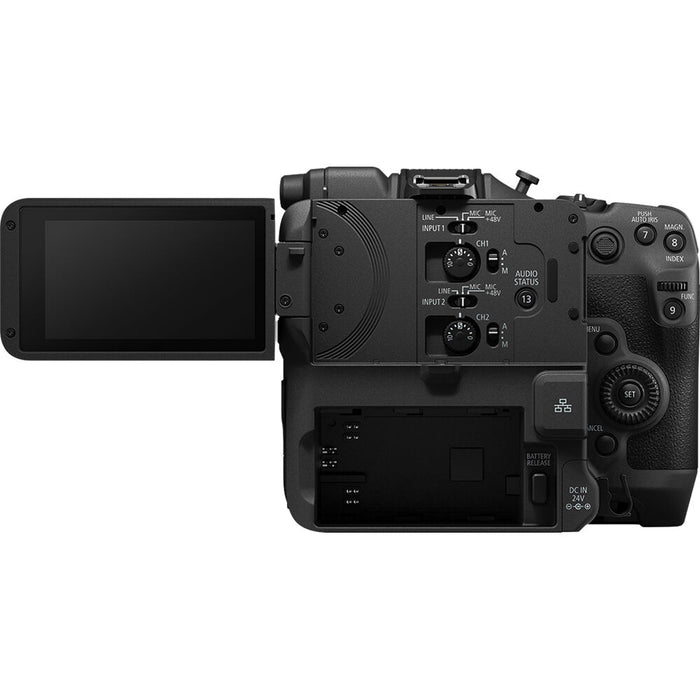

LCD Screen: 3.5-inch vari-angle touchscreen LCD with 2.76 million dots

Dimensions (W x H x D): Approximately 160 x 137.4 x 116 mm

Weight: Approximately 1,300 g (body only)

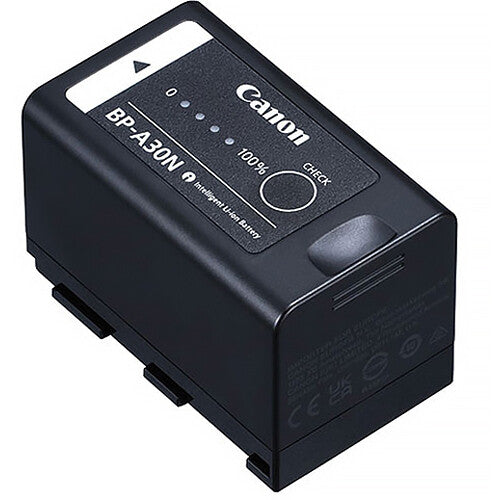

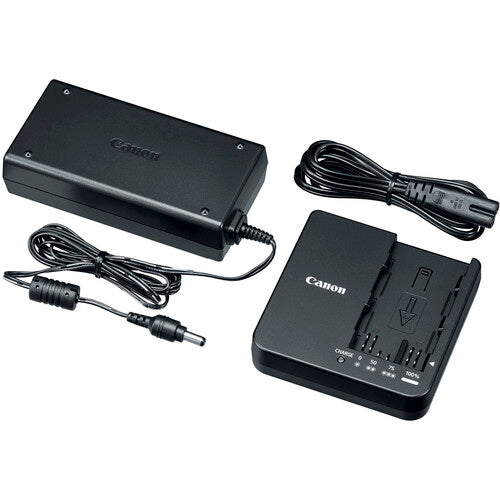

Power Supply: Compatible with BP-A30N and BP-A60N batteries
