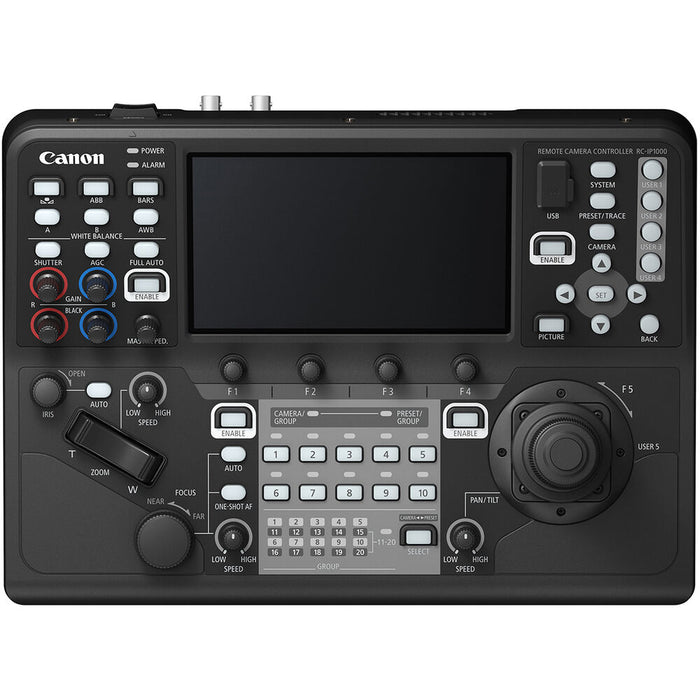

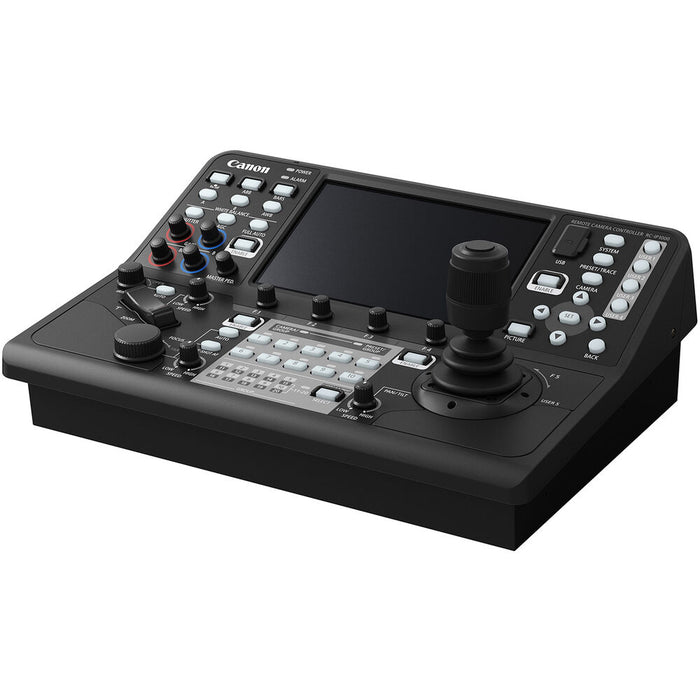

Canon RC-IP1000 Advanced PTZ Camera Controller
SKU: 6529C001
MPN: RC-IP1000
The Canon RC-IP1000 is a state-of-the-art PTZ (Pan-Tilt-Zoom) camera controller designed to streamline multi-camera operations in professional broadcasting and live event productions. With the capability to manage up to 200 cameras over IP, this controller offers unparalleled control and flexibility. Its intuitive 7-inch touch panel provides clear visibility and touch-screen functionality, allowing operators to monitor live feeds and adjust settings with ease. Equipped with 42 buttons and 14 dials, including assignable options, the RC-IP1000 ensures quick access to essential functions, enhancing operational efficiency.
The Key Features of the Canon RC-IP1000:
- Comprehensive Camera Control: Manage up to 200 PTZ cameras over IP and an additional 5 cameras via serial connection, all from a single controller.
- High-Resolution Touch Panel: The 7-inch touch screen displays operation menus and live camera feeds, supporting touch autofocus for precise control.
- Customizable Interface: Featuring 42 buttons and 14 dials, including user-assignable options, operators can tailor the controller to their workflow for enhanced efficiency.
- Versatile Video Interfaces: Supports up to 4K 60P video input/output via 12G-SDI, with additional HDMI output for flexible monitoring setups.
- Multi-Camera Monitoring: View up to nine camera feeds simultaneously on the touch panel in 2x2 or 3x3 layouts, facilitating seamless switching and control.
- Advanced Assist Functions: Includes waveform monitor, vectorscope, and various markers (area, center, grid) to ensure optimal video quality and framing.
- Flexible Power Options: Operates via PoE+ for simplified cabling or a 12V DC 4-pin XLR connector, accommodating diverse installation requirements.
The Detailed Specifications for the Canon RC-IP1000:
Camera Control Capacity: Up to 200 cameras over IP; up to 5 cameras via serial connection
Touch Panel: 7-inch display with touch autofocus capability
Control Interface: 42 buttons and 14 dials, including assignable options

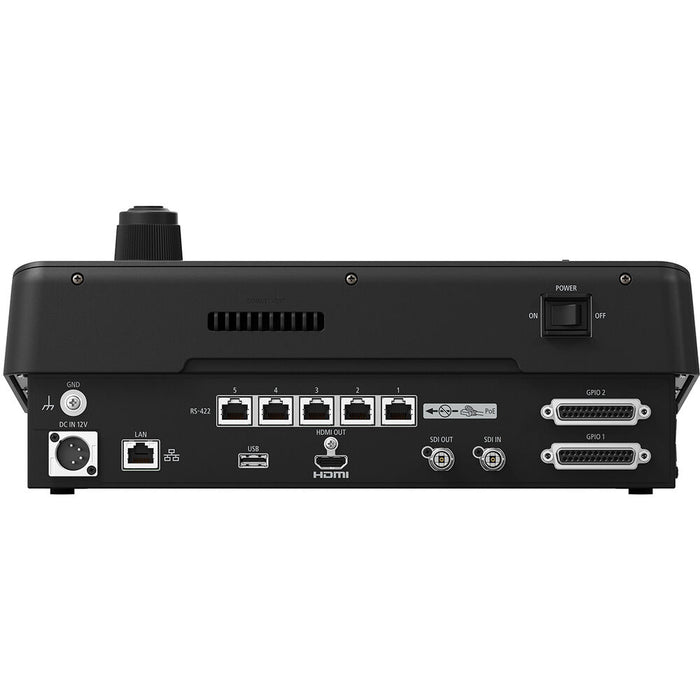

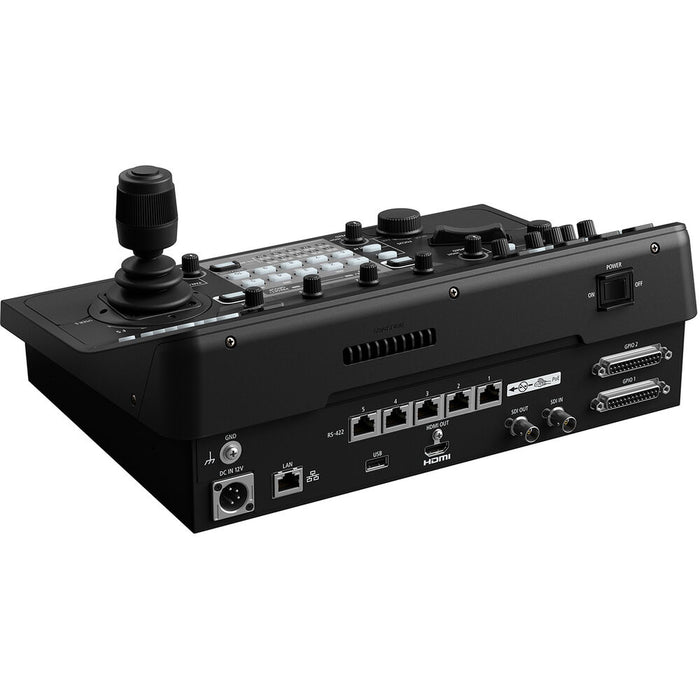

Video Input/Output:
- 12G-SDI IN/OUT: BNC jack supporting 4K 60P
- HDMI OUT: Type A connector
Network Terminals: RJ45 x 5 (1000 BASE-T)
Serial Interface: RJ45 x 5
Tally/GPIO: D-sub 25-pin x 2
USB Ports: Type A x 2 (for saving settings data, firmware updates)
Assist Functions: Waveform monitor, vectorscope, area marker, center marker, grid marker
Power Supply Options:
- PoE+ (Power over Ethernet)
- 12V DC via 4-pin XLR connector
Weight: Approximately 3.4 kg (7.50 lb.)
