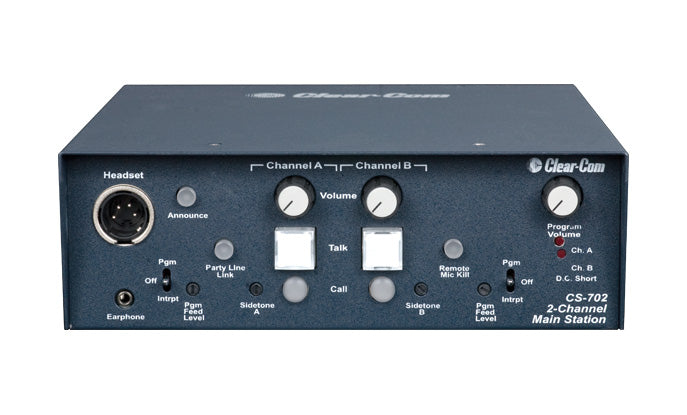

Clear-Com CS-702 2-Channel Portable Headset Main Station
Do you have questions about pricing?
Trusted by broadcasters, venues, and production teams across Canada.
The Clear-Com CS-702 2-Channel Portable Headset Main Station designed for Encore 2-wire analog partyline intercom systems. It supplies regulated DC power to connected beltpacks and speaker stations while providing clear, intelligible communications in demanding production environments. Operators can monitor either channel independently (or both at once) via headset, earphone, or speaker, with individual listen controls for each channel. Built-in call signaling, adjustable sidetone per channel, and dual-action talk controls (momentary or latching) keep communication fast and intuitive. The CS-702 also adds practical production features like a balanced program input with selectable program interrupt, Remote Mic Kill to clear open mics, and a stage announce output with relay for paging and external control.
The Key Features of the Clear-Com CS-702 2-Channel Portable Headset Main Station:
- Two-channel portable main station for Encore 2-wire analog partyline systems
- Supports up to 55 beltpacks or 7 speaker stations
- Regulated 30V DC power with automatic short-circuit protection, auto-reset, and LED indication
- Dual-action Talk buttons per channel (momentary or latching)
- Independent Listen Level controls for Channel A and Channel B monitoring
- Call signaling per channel with front-panel LED indicators
- Adjustable sidetone controls for each channel
- Balanced program input (mic or line level), assignable to either/both channels with Program Interrupt
- Remote Mic Kill (RMK) to clear open microphones on the partyline
- Stage announce balanced output plus relay for paging and external switching
- Channel Link switch to combine A and B into a single partyline when needed
- Front-panel headset connector plus monitoring via earphone/speaker
The Detailed Specifications for the Clear-Com CS-702 2-Channel Portable Headset Main Station:
- System Type: 2-wire analog partyline main station (portable)
- Channels: 2 (Channel A and Channel B), with Channel Link function
- Capacity: Up to 55 beltpacks or 7 speaker stations (system-dependent)
- Headset Microphone Input: Dynamic; input impedance ≥ 1 kΩ
- Mic Limiter: Threshold 0 dBu ± 3 dB; limiter range ≥ 15 dB
- Program Input (Line): Max level before clipping ≥ 20 dBu; input impedance ≥ 5 kΩ
- Program Input (Mic): Max level before clipping ≥ -35 dB; input impedance ≥ 1 kΩ
- Program Features: Monitor in headset; send to Channel A, Channel B, or both; Program Interrupt selectable per channel
- Headset Output: Load impedance ≥ 8 Ω; output impedance ≤ 25 Ω
- Headset Output Limiter: Threshold +5 dBu ± 3 dB
- Max Headset Output Level before distortion: ≥ 17 dBu
- Partyline Output: Off noise < -74 dBu; output impedance > 10 kΩ
- Partyline Input: Crosstalk < -60 dB; max level before clipping ≥ 12 dBu
- Sidetone Null Capability: > 25 dB
- Stage Announce / Balanced Line Out: Balanced; output impedance ≥ 200 Ω; load impedance ≥ 600 Ω
- Frequency Response (±3 dB):
Headset Mic → Partyline: 200 Hz – 18 kHz
Headset Mic → Line Out: 200 Hz – 18 kHz
Program Input → Partyline: 200 Hz – 20 kHz
Program Input → Headset Out: 200 Hz – 18 kHz
Partyline → Headset Out: 200 Hz – 18 kHz
- Max Distortion:
Headset Mic → Partyline: ≤ 0.5%
Headset Mic → Line Out: ≤ 0.5%
Program Input → Partyline: ≤ 0.2%
Program Input → Headset Out: ≤ 0.2%
Partyline → Headset Out: ≤ 0.2%
- Mains Power: 100–240 V AC, 50–60 Hz
- DC Output: 30 V DC ± 0.5 V
- Output Current per Channel: 1.2 A continuous; 2 A peak (short-duration)
- Protection: Automatic short-circuit shutdown and auto-reset; recovery time ≤ 0.5 s (first short)

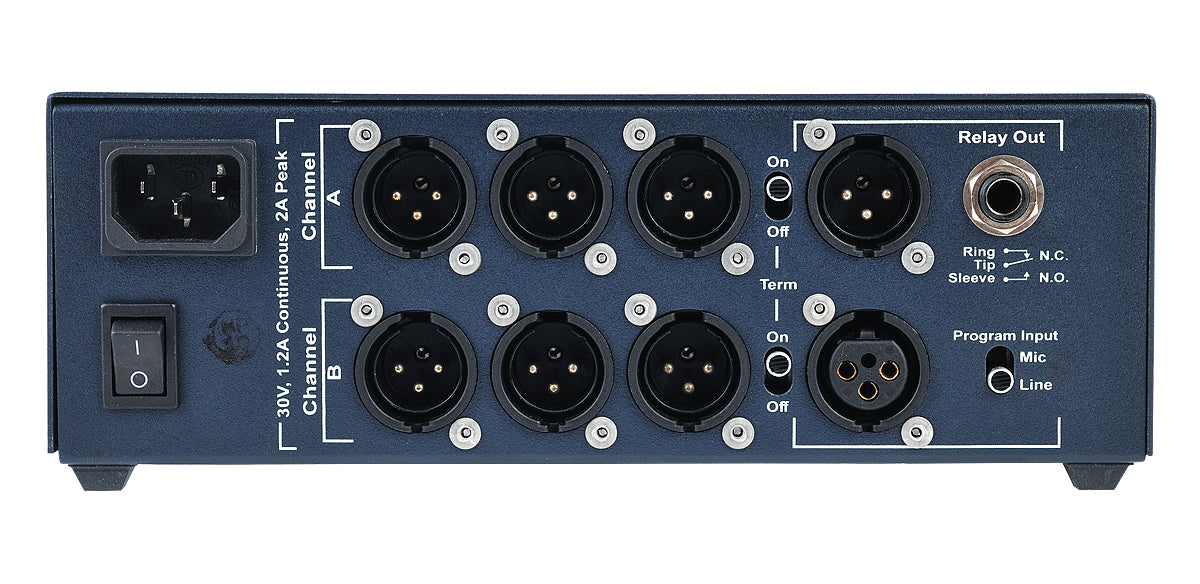

- Rear Panel Connectors:
Intercom: (6) XLR-3M (3 per channel)
Program In: (1) XLR-3F
Announce Out (Audio): (1) XLR-3M
Announce Relay: (1) 1/4 in phone jack (relay)
AC Power: IEC 320 connector
- Front Panel Connectors: Headset (1) XLR-4M; Earphone (1) 3.5 mm jack
- Operating Temperature: 32°F – 122°F (0°C – 50°C)
- Dimensions (H × W × D): 3.0 × 8.5 × 10.0 in (76 × 216 × 254 mm)
- Weight: 5.0 lb (2.3 kg)
