Clear-Com MS-702 2-Channel Headset/Speaker Main Station

Availability:
Low stock
Do you have questions about pricing?
Trusted by broadcasters, venues, and production teams across Canada.

SKU: MS-702

The Clear-Com MS-702 2-Channel Headset/Speaker Main Station is a professional 2-channel analog intercom main station designed for reliable, hands-on communication in broadcast, live events, theaters, and production environments. Built by Clear-Com, the MS-702 combines headset and loudspeaker operation in a compact, rack-mountable chassis, making it ideal for control rooms, flypacks, and mobile production units.

Supporting two independent intercom channels, the MS-702 allows operators to monitor and communicate with multiple teams simultaneously. Each channel features individual talk and listen controls, enabling precise communication management during demanding productions. The built-in speaker provides clear audio monitoring when a headset is not required, while automatic speaker muting prevents feedback when the talk function is engaged.

With balanced XLR connectivity, selectable power options, and robust construction, the MS-702 delivers dependable performance in both fixed and portable installations. Its intuitive front-panel layout ensures quick operation, even in fast-paced production settings.

The Key Features of the Clear-Com MS-702 2-Channel Headset/Speaker Main Station:

  • Two independent analog intercom channels (A and B)
  • Supports headset and built-in loudspeaker operation
  • Individual talk and listen controls for each channel
  • Automatic speaker muting when talk is activated

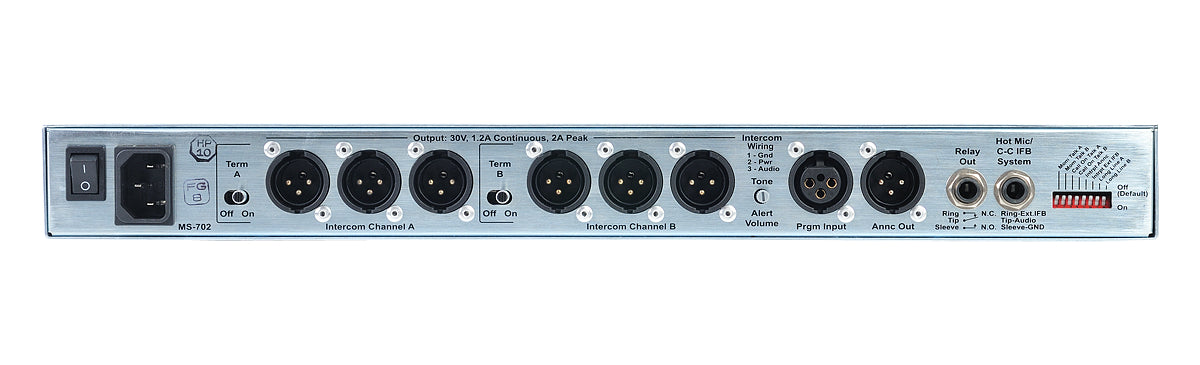

  • Balanced XLR intercom connections
  • Selectable power options for flexible deployment

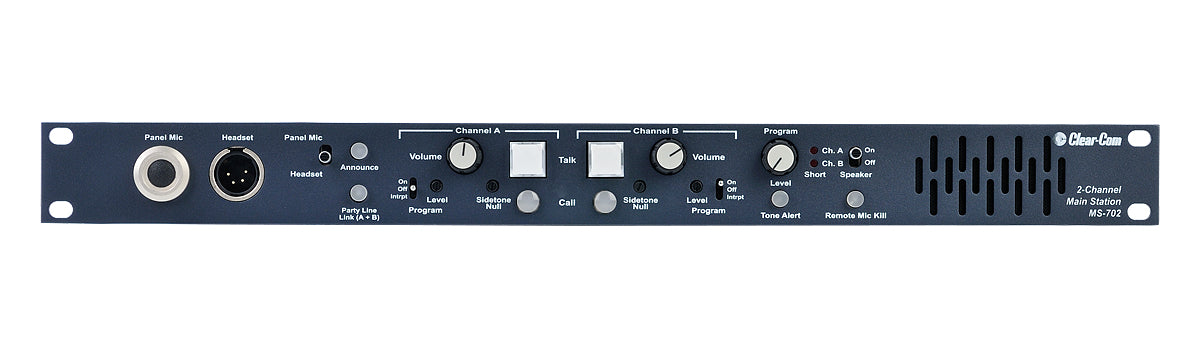

  • Front-panel monitoring with clear status indicators
  • Rack-mountable design for fixed or mobile installations

The Detailed Specifications for the Clear-Com MS-702 2-Channel Headset/Speaker Main Station:

  • Intercom Type: Analog partyline
  • Channels: 2 (Channel A and Channel B)
  • Headset Connector: 4-pin XLR (male)
  • Intercom Line Connectors: 3-pin XLR (female)
  • Built-in Speaker: Front-panel loudspeaker with auto-mute
  • Microphone Type Support: Dynamic and electret headsets
  • Power Requirements: AC mains or DC (model dependent)
  • Form Factor: 1RU rack-mountable chassis
  • Construction: Metal enclosure for professional use
  • Application: Broadcast, live events, theater, and production systems
