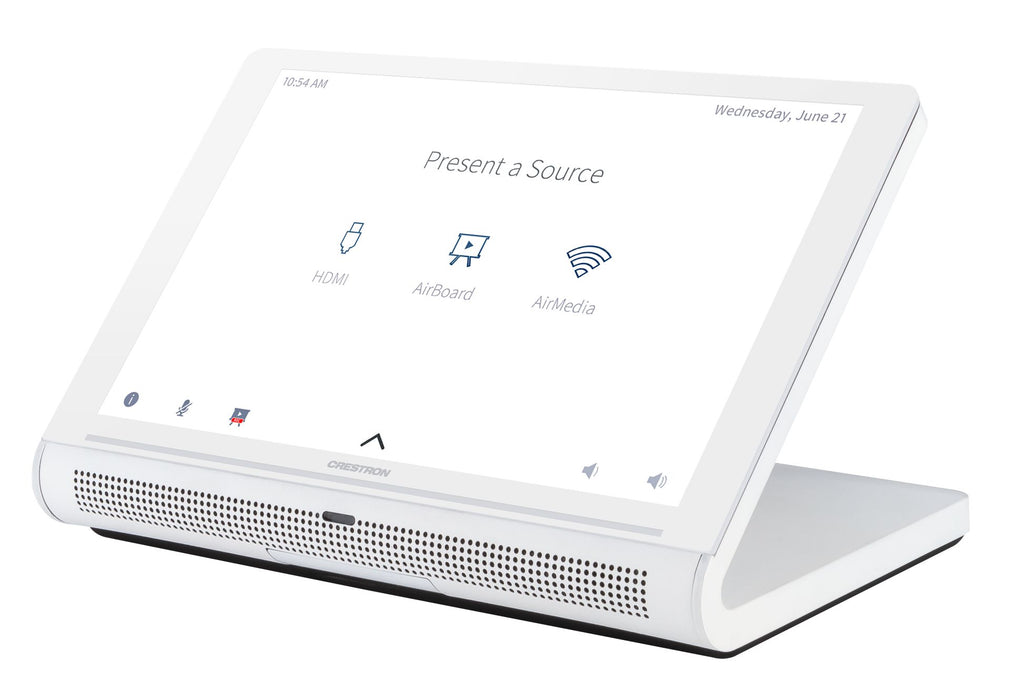

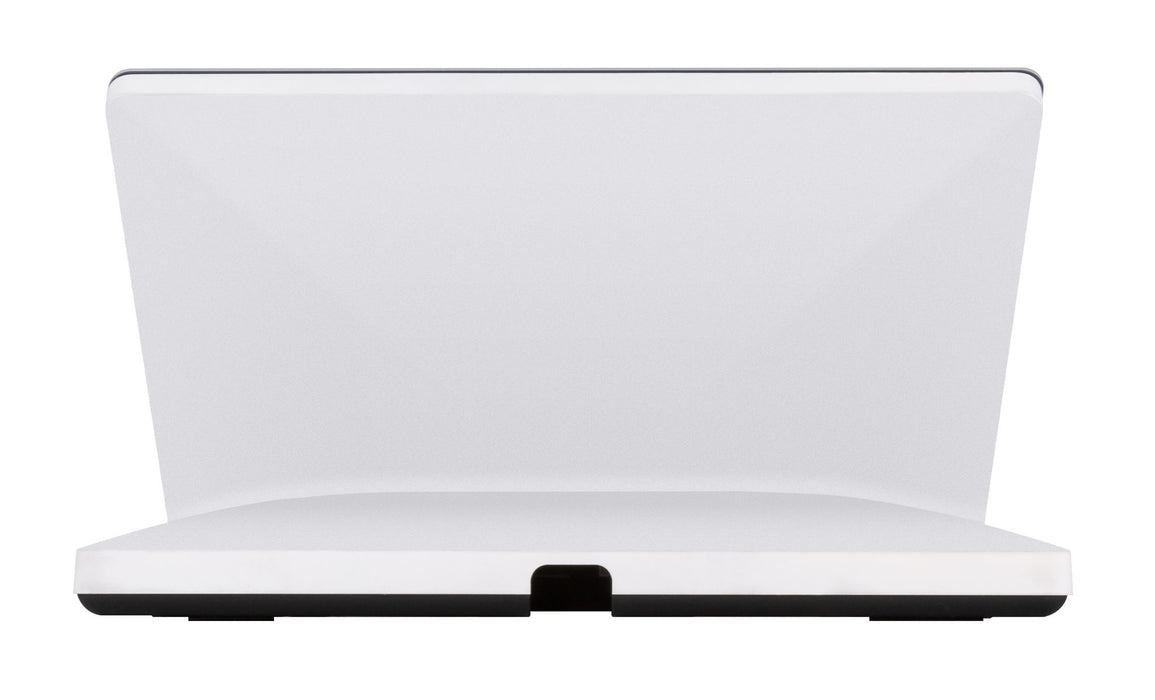

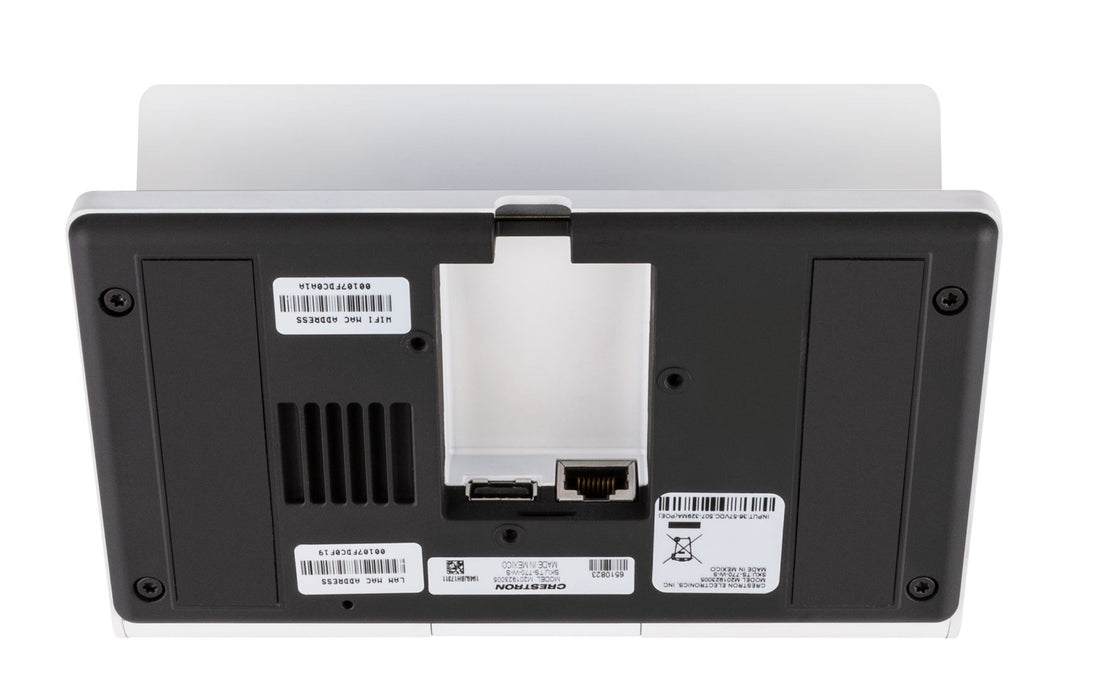

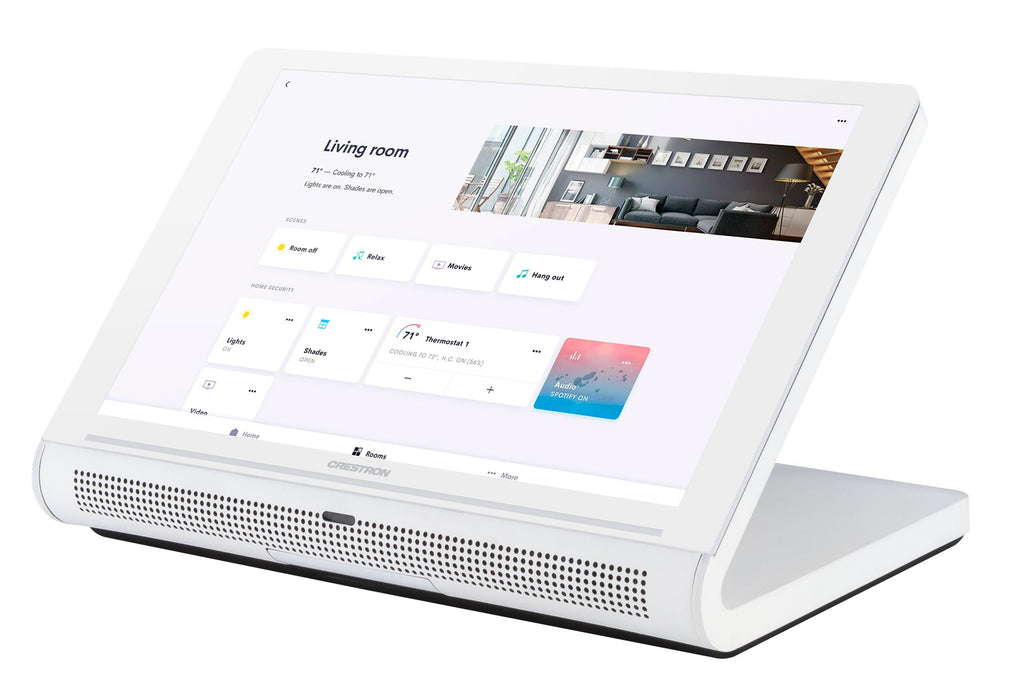

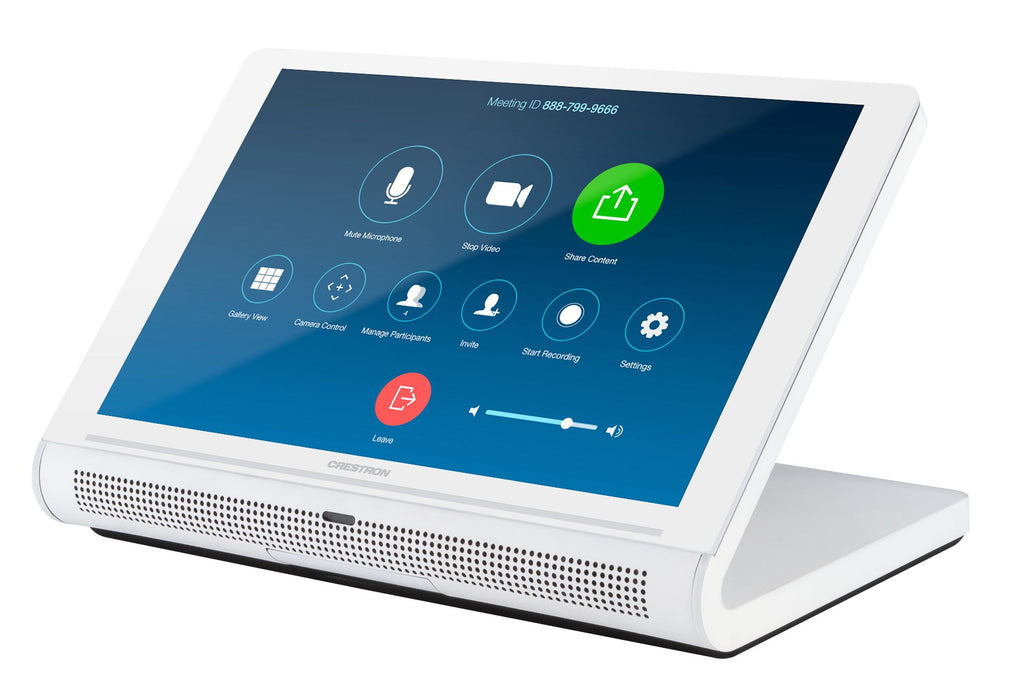

The Crestron TS-770-GV-W-S is a sleek and versatile 7-inch tabletop touch screen designed specifically for environments requiring heightened privacy and security, such as government applications. This model omits the microphone, Bluetooth® communications beacon, and Wi-Fi® network connectivity to comply with stringent security standards. Featuring a capacitive touch screen display with custom-programmable control buttons, the TS-770-GV-W-S supports both Smart Graphics® software and HTML5-based custom UI projects, offering a highly customizable user interface for controlling various technologies in residential and enterprise settings.

Here are the key features of the Crestron TS-770-GV-W-S:

• 7-inch Capacitive Touch Screen Display: Provides a responsive and intuitive interface with a 1280 x 800 WXGA resolution.
• Custom-Programmable Virtual Buttons: Allows for tailored control interfaces to suit specific application needs.
• Support for Smart Graphics® and HTML5: Enables the creation of dynamic and engaging user interfaces.
• H.265/H.264 Streaming Video Display: Supports high-quality video streaming for monitoring and conferencing applications.
• Power over Ethernet (PoE) Connectivity: Simplifies installation by delivering power and data through a single Ethernet cable.
• Enhanced Security Features: Designed without a microphone, Bluetooth® beacon, or Wi-Fi® to meet strict security requirements.

Here are the detailed specifications for the Crestron TS-770-GV-W-S:

Display: 7-inch (178 mm) widescreen active-matrix color display with 1280 x 800 WXGA resolution

Touch Screen: Projected capacitive, 10-point multi-touch capable

Video: H.265, H.264, or MJPEG streaming video display

Audio: Built-in speakers; no microphone included

Ethernet: 10/100 Mbps; enterprise-grade security and authentication; supports PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at)

USB: High-speed USB 2.0 port for connecting supported Crestron accessories

Environmental Conditions:

• Operating Temperature: 32° to 104°F (0° to 40°C)
• Humidity: 10% to 95% RH (non-condensing)

Dimensions:

• Height: 4.02 in. (102 mm)
• Width: 6.87 in. (175 mm)
• Depth: 4.37 in. (111 mm)

Weight: 1.33 lb (605 g)

Compliance: Regulatory Model: M201923005; IC, CE, FCC Part 15 Class B digital device
