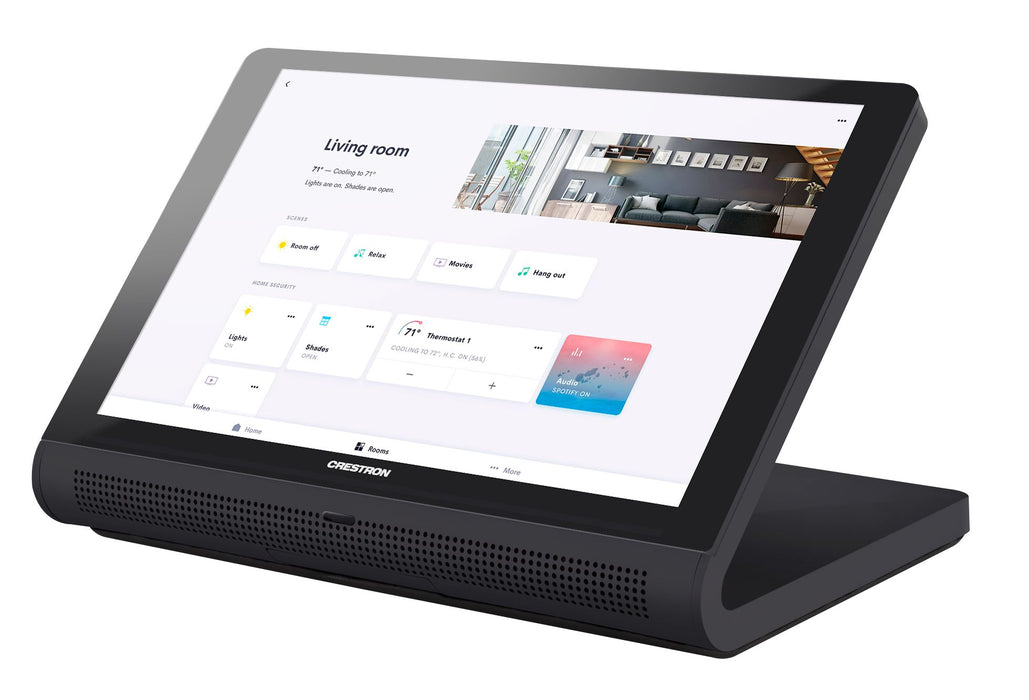

The Crestron TS-770R-B is a stylish and versatile 7-inch tabletop touch screen designed specifically to run the Crestron Home® OS application. With its capacitive touch display, PoE and Wi-Fi® network connectivity, and modern design, it offers intuitive control of home automation systems, allowing deployment virtually anywhere.

Here are the key features of the Crestron TS-770R-B:

• 7-inch Capacitive Touch Screen Display: Provides a responsive and intuitive user interface for controlling home technology.
• PoE and Wi-Fi Connectivity: Offers flexible installation options with Power over Ethernet and wireless network capabilities.
• Built-in Proximity Sensor: Wakes the screen without user interaction, enhancing convenience.
• Automatic Brightness Control: Ensures optimal visibility under varying lighting conditions.
• Enterprise-Grade Security: Supports 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory® service integration for robust security.

Here are the detailed specifications for the Crestron TS-770R-B:

Touch Screen Display:

• Display Type: TFT active matrix color LCD
• Size: 7 inches (178 mm) diagonal
• Aspect Ratio: 16:10 WXGA
• Resolution: 1280 x 800 pixels
• Brightness: 350 nits (cd/m²)
• Contrast Ratio: 850:1
• Color Depth: 24-bit, 16.7 million colors
• Illumination: Edgelit LED with auto brightness control
• Viewing Angle: ±80° horizontal, ±80° vertical
• Touch Screen Technology: Projected capacitive, 5-point multitouch capable

Virtual Buttons:

• Quantity: 6 virtual buttons in a collapsible universal toolbar
• Preconfigured Icons: Power, Home, Lights, Up, Down, and Microphone

Graphics Engine:

• Supported Applications: Native Sonos® app, native Crestron Home™ OS app, touch screen setup and diagnostics via web browser or on-screen UI, Crestron Home setup and diagnostics via Crestron Home Setup app

Audio:

• Microphones: Built-in microphones
• Speakers: Built-in speakers

Video:

• Streaming Formats: Native support for H.265, H.264, and MJPEG
• Streaming Sources: Compatible with IP cameras, streaming encoders (e.g., Crestron DM‑TXRX‑100‑STR), or DigitalMedia™ switchers

Connectivity:

• Ethernet: 10/100 Mbps; PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at) powered
• Wi-Fi: Dual-band 802.11a/b/g/n/ac
• USB: High-speed USB 2.0 port for connecting supported Crestron accessories

Security:

• Authentication: 802.1X
• Encryption: TLS
• Connectivity: HTTPS
• Directory Services: Active Directory® service integration

Power:

• Power over Ethernet: PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at)

Environmental:

• Operating Temperature: 32° to 104°F (0° to 40°C)
• Storage Temperature: -4° to 140°F (-20° to 60°C)
• Humidity: 10% to 90% RH (non-condensing)

Dimensions:

• Width: 7.57 in. (192 mm)
• Height: 5.16 in. (131 mm)
• Depth: 3.64 in. (93 mm)

Weight:

• Net Weight: Approximately 1.2 lb (0.54 kg)
