Data Video DAC-70 Up/Down/Cross Converter
Availability:
In stock 3-5 days
Original price
$549.00
-
Original price
$549.00
Original price
$549.00
$549.00
-
$549.00
Current price
$549.00
| /

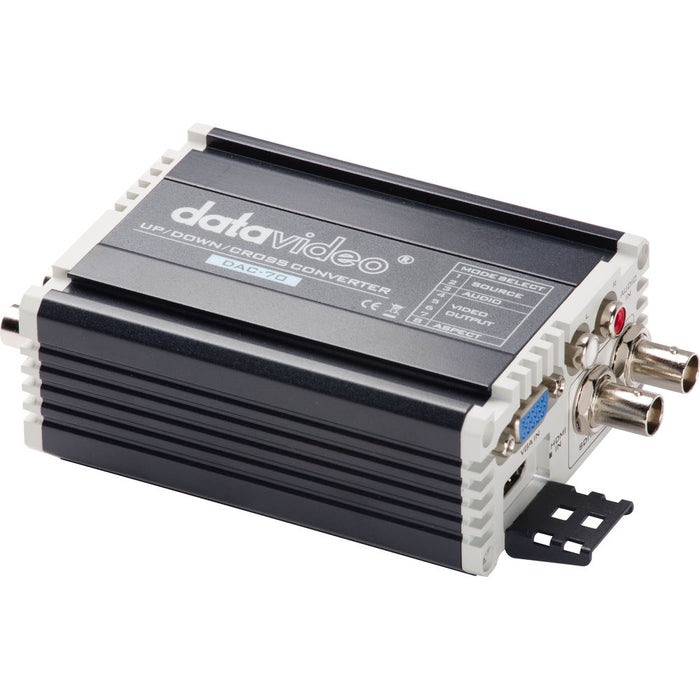

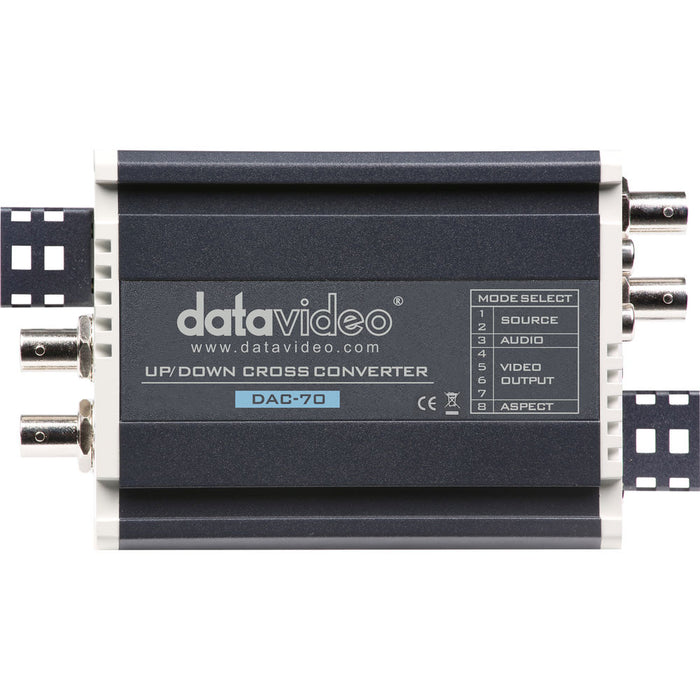

The Data Video DAC-70 is a compact and reliable up/down/cross converter designed to bridge the gap between legacy and modern video formats. It supports HDMI, SDI, and VGA inputs, with simultaneous SDI and HDMI output. This powerful tool is ideal for professional video environments that require conversion between differing resolutions and signal types. Whether you're working in a studio, field production, or AV integration setting, the DAC-70 ensures smooth, high-quality signal processing and output compatibility.
The Key Features of the Data Video DAC-70:
- Supports HDMI, SDI, and VGA inputs
- Outputs via SDI and HDMI simultaneously
- Up/down/cross conversion between formats
- Built-in scaler and frame rate converter
- Auto-detect input format and resolution
- Supports resolutions up to 1080p 60Hz
- Durable metal housing for professional use
- Ideal for live production, broadcast, and AV installations
The Detailed Specifications for the Data Video DAC-70:

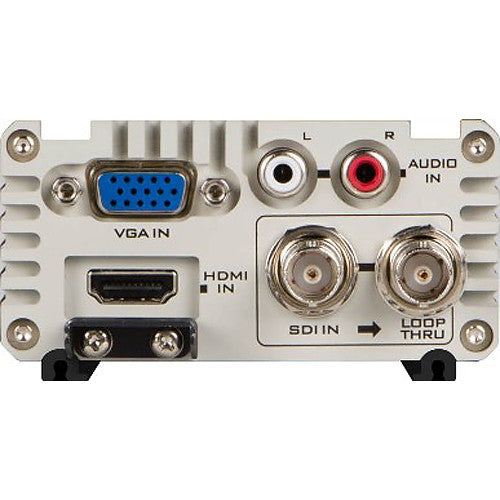

- Input Interfaces: 1x HDMI, 1x SDI (BNC), 1x VGA (D-sub 15-pin)

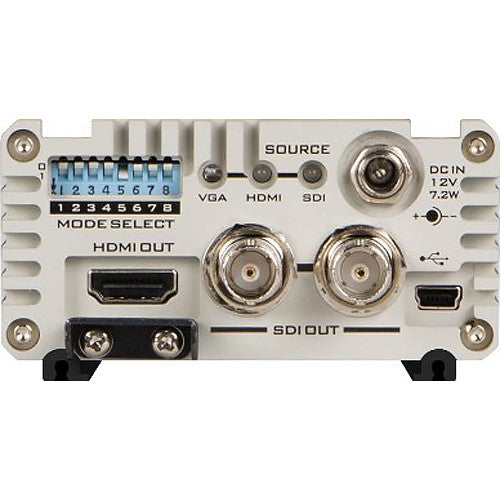

- Output Interfaces: 2x SDI (BNC), 1x HDMI
- Supported Input Resolutions: VGA up to 1920x1080, HDMI/SDI up to 1080p 60Hz
- Supported Output Resolutions: HDMI/SDI up to 1080p 60Hz
- Video Conversion: Up/Down/Cross Conversion with scaling and frame rate adjustment
- Audio Support: Embedded audio supported on HDMI and SDI
- Power Supply: 12V DC input (power adapter included)
- Dimensions: 123mm x 98mm x 29mm (4.84” x 3.86” x 1.14”)
- Weight: Approximately 0.4kg (0.88 lbs)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
