Data Video DAC9P-4K HDMI to 12G-SDI 4K Converter
Availability:
In stock 3-5 days
Original price
$549.00
-
Original price
$549.00
Original price
$549.00
$549.00
-
$549.00
Current price
$549.00
| /

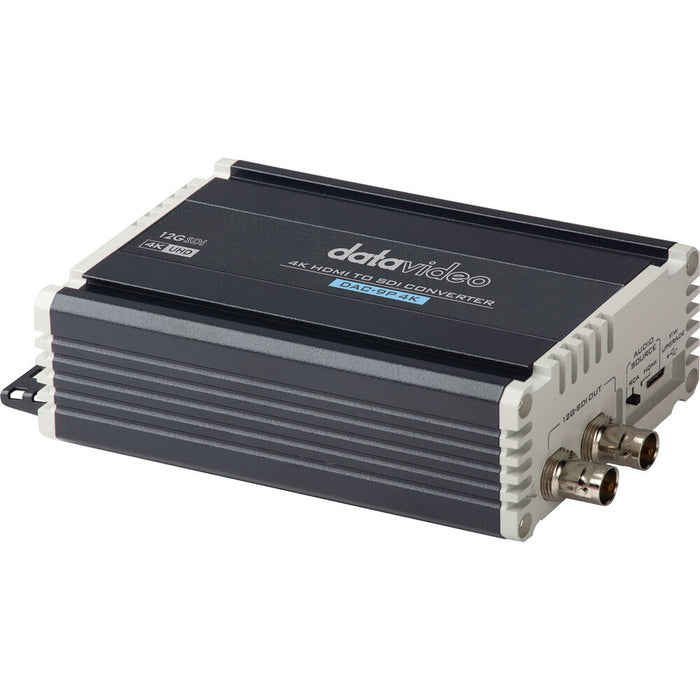

The Data Video DAC9P-4K is a high-performance HDMI to 12G-SDI converter designed for professional AV and broadcast applications. Supporting resolutions up to Ultra HD 4K60, this compact device ensures pristine signal conversion with zero latency, making it ideal for live production, video walls, and high-resolution displays. Built with rugged metal housing and equipped with a locking power connector, the DAC9P-4K is ready to handle the rigors of field and studio environments. Whether you need seamless integration into a 12G-SDI workflow or robust HDMI-to-SDI signal bridging, this converter delivers dependable results with superior image fidelity.
The Key Features of the Data Video DAC9P-4K:
- Converts HDMI to 12G-SDI, supporting up to 4K60 video signals
- Compact, durable metal housing for professional environments
- Dual 12G-SDI outputs for simultaneous signal distribution
- Supports embedded audio and timecode passthrough
- Locking power connector for secure field use
- Plug-and-play design with no software configuration required
- Compatible with HDMI 2.0 and SDI standards up to 12G
The Detailed Specifications for the Data Video DAC9P-4K:

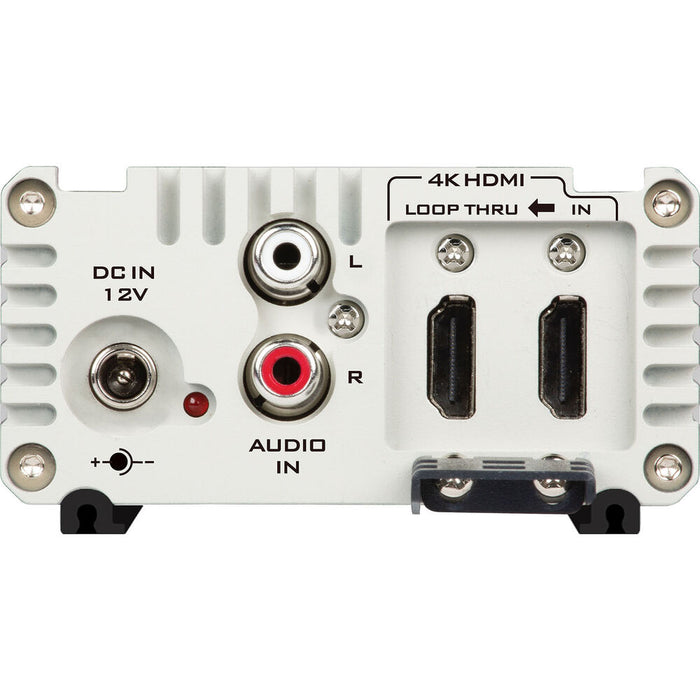

- Input: 1 x HDMI Type A (HDMI 2.0)
- Outputs: 2 x 12G-SDI (BNC)
- Supported Resolutions: Up to 4K60p (4096x2160/3840x2160)
- Video Standards: SD, HD, 3G, 6G, and 12G-SDI
- Audio: Embedded HDMI audio passthrough
- Timecode Support: HDMI timecode passthrough to SDI
- Power Input: 12V DC with locking connector
- Power Consumption: < 6W
- Dimensions: 100mm x 70mm x 29.5mm
- Weight: Approx. 0.3 kg
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
