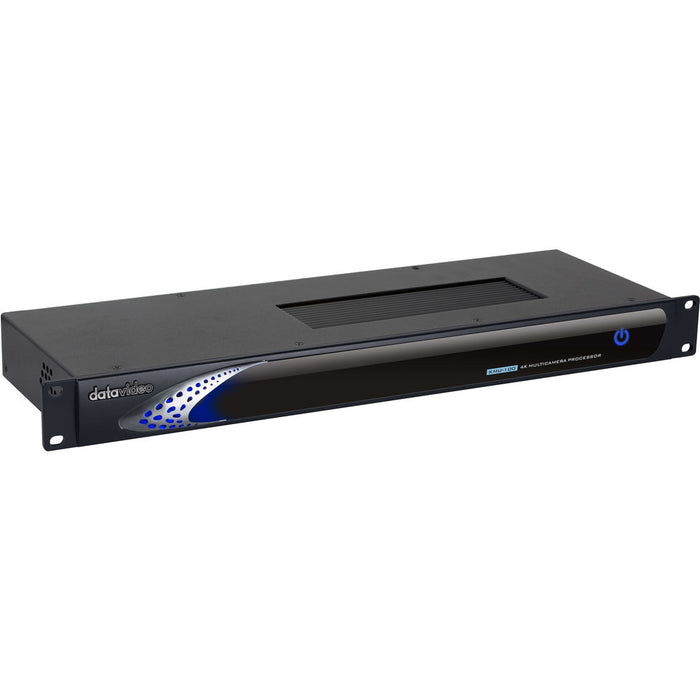

Data Video KMU-100 4K Multi-Camera Production System
Availability:
In stock 3-5 days
Original price
$3,299.00
-
Original price
$3,299.00
Original price
$3,299.00
$3,299.00
-
$3,299.00
Current price
$3,299.00
| /
The Data Video KMU-100 is an innovative 4K multi-camera production system that transforms a single 4K UHD camera input into up to four virtual HD camera shots, ideal for live production environments with limited space and crew. Designed for streamlined multi-angle broadcasting, the KMU-100 allows you to define and switch between cropped windows in real time, giving the effect of a multi-camera setup with only one camera. Whether used for corporate events, live concerts, education, or houses of worship, the KMU-100 offers professional-grade results in a simplified workflow.
The Key Features of the Data Video KMU-100:
- Converts a single 4K camera input into four individual 1080p outputs
- Supports up to 3840 x 2160 4K UHD input resolution
- Easy-to-use interface for selecting and cropping HD shots from a 4K image
- Integrated control via joystick or compatible RMC-185 controller
- SDI and HDMI video output support
- Seamless integration with video switchers and streaming setups
- Ideal for solo operators or small production teams
The Detailed Specifications for the Data Video KMU-100:

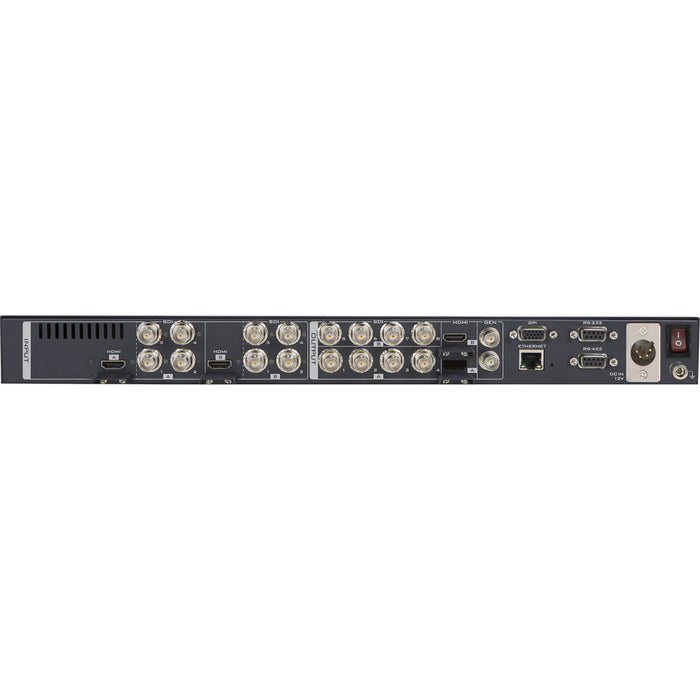

- Input: 1 x 4K HDMI or 1 x 4K SDI
- Output: 4 x HD-SDI (1080p) virtual camera angles
- Input Resolution: Up to 3840 x 2160 @ 30fps
- Output Resolution: 1080p @ 29.97fps
- Control Interface: Joystick control or RMC-185 hardware controller
- Audio: Embedded HDMI/SDI audio pass-through
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Power: 12V DC, 30W
- Dimensions: 438mm x 171mm x 44mm (1U rackmountable)
- Weight: Approx. 2.1 kg (4.6 lbs)
