Data Video KMU-100C 4K Multi-Camera Production Kit
Availability:
In stock 3-5 days
Original price
$4,298.00
-
Original price
$4,298.00
Original price
$4,298.00
$4,298.00
-
$4,298.00
Current price
$4,298.00
| /
The Data Video KMU-100C is an innovative 4K multi-camera production system that converts a single 4K camera source into up to four individual HD video shots. Designed for streamlined live production, the KMU-100C enables producers to simulate a multi-camera workflow using just one 4K source, greatly reducing equipment and personnel costs. Ideal for live event coverage, studio recording, education, and corporate broadcasting, this compact solution brings versatility and creativity to your video production without the complexity of traditional multi-camera setups.
The Key Features of the Data Video KMU-100C Kit:

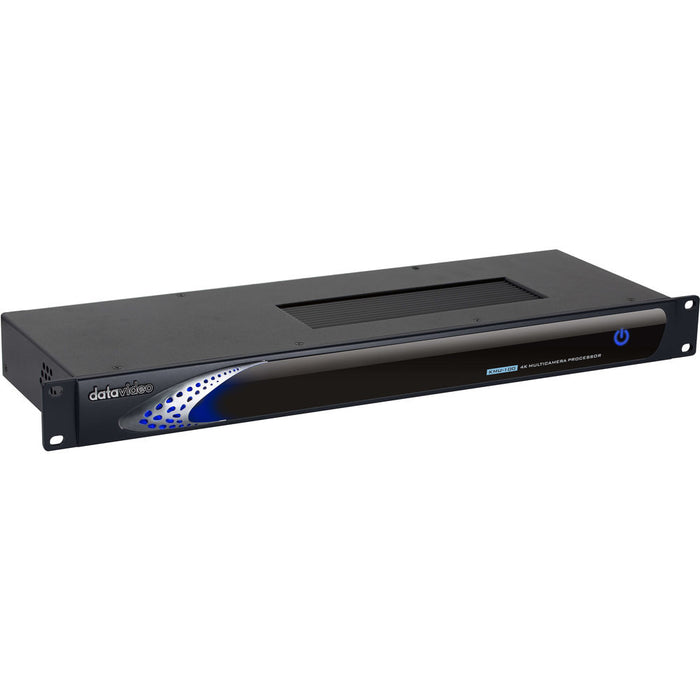

KMU-100:
- Converts a single 4K camera input into four individual 1080p outputs
- Supports up to 3840 x 2160 4K UHD input resolution
- Easy-to-use interface for selecting and cropping HD shots from a 4K image
- Integrated control via joystick or compatible RMC-185 controller

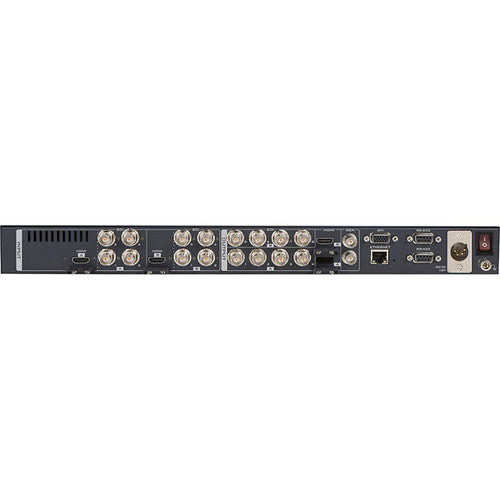

- SDI and HDMI video output support
- Seamless integration with video switchers and streaming setups
- Ideal for solo operators or small production teams

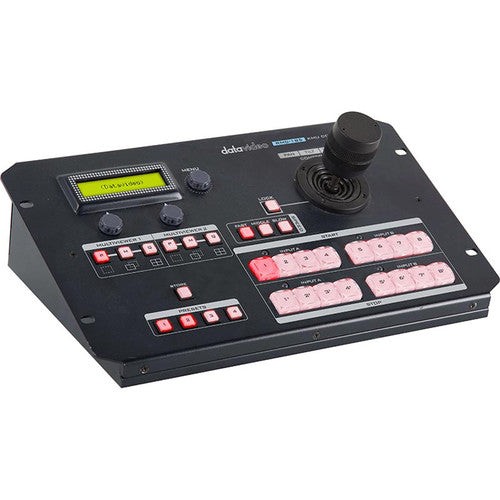

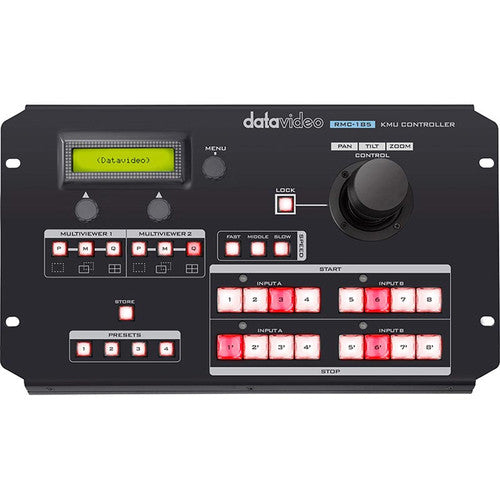

RMC-185:
- Compatible with Data Video PTZ cameras via HDBaseT protocol
- Simple camera control through a single Cat6 Ethernet cable
- Integrated joystick for real-time pan, tilt, and zoom adjustments
- Supports up to 4 PTZ camera channels
- 7 customizable presets per channel for fast switching
- Compact and lightweight desktop design
- Powered via external adapter or PoE (Power over Ethernet)
The Detailed Specifications for the Data Video KMU-100C Kit:
KMU-100:
- Input: 1 x 4K HDMI or 1 x 4K SDI
- Output: 4 x HD-SDI (1080p) virtual camera angles
- Input Resolution: Up to 3840 x 2160 @ 30fps
- Output Resolution: 1080p @ 29.97fps
- Control Interface: Joystick control or RMC-185 hardware controller
- Audio: Embedded HDMI/SDI audio pass-through
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Power: 12V DC, 30W
- Dimensions: 438mm x 171mm x 44mm (1U rackmountable)
- Weight: Approx. 2.1 kg (4.6 lbs)
RMC-185:
- Camera Control Interface: HDBaseT (RJ-45)
- Compatible Camera Models: Data Video PTC series with HDBaseT
- Control Channels: 4
- Preset Memory: 7 positions per channel
- Joystick Type: 3-axis joystick for pan, tilt, and zoom
- Power: DC 12V or PoE (IEEE 802.3af)
- Dimensions: 220mm x 122mm x 52mm
- Weight: 0.8 kg (1.76 lbs)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
