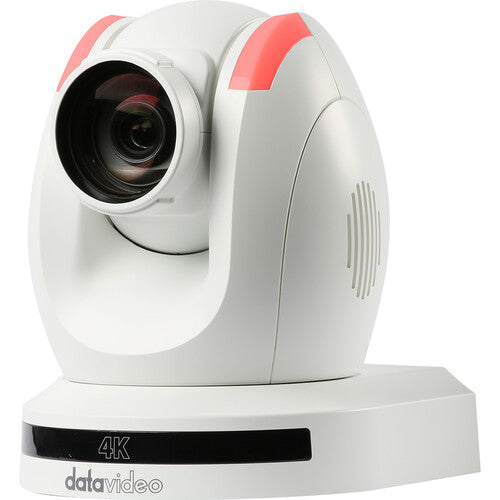

Data Video PTC-285W 4K 12x NDI® | HX, 3G-SDI, HDMI PTZ Camera with Tracking - White
Availability:
In stock 3-5 days
Original price
$1,999.00
-
Original price
$1,999.00
Original price
$1,999.00
$1,999.00
-
$1,999.00
Current price
$1,999.00
| /
The Data Video PTC-285W is a high-performance 4K PTZ camera designed for professional live production, broadcasting, and event recording. Featuring AI-powered auto-tracking, this camera intelligently follows subjects without requiring an external tracking device, making it ideal for lecture capture, corporate presentations, and worship services. Equipped with 12X optical zoom and 4K UHD resolution, the PTC-285 delivers crystal-clear video with outstanding detail. With multiple output options, including HDMI, SDI, and IP streaming, it ensures seamless integration into any workflow. Whether used for live streaming, video conferencing, or hybrid events, the PTC-285W offers superior flexibility, performance, and ease of use.
The Key Features of the Data Video PTC-285W:
- 4K UHD Resolution: Captures stunningly sharp and detailed images in 3840x2160 resolution.
- AI Auto Tracking: Intelligent tracking system automatically follows subjects for hands-free operation.
- 12X Optical Zoom: Delivers high-quality close-ups without loss of clarity.
- Smooth PTZ Control: Precise pan, tilt, and zoom adjustments for professional-quality framing.
- Multiple Video Outputs: HDMI, SDI, and IP streaming compatibility for flexible integration.
- Low Latency Streaming: Ensures real-time performance for live events and broadcasts.
- Wide Dynamic Range (WDR): Enhances image clarity in various lighting conditions.
- PoE+ Support: Simplifies installation with power and data transmission over a single cable.
The Detailed Specifications for the Data Video PTC-285W:
- Image Sensor: 1/2.8" 8.42MP CMOS Sensor
- Resolution: 4K UHD (3840x2160) at 30fps, Full HD (1920x1080) at 60fps
- Zoom: 12X Optical Zoom, 16X Digital Zoom
- Field of View: 80° (Wide) – 7.5° (Tele)
- Pan Range: -170° to +170°
- Tilt Range: -30° to +90°
- Video Outputs: HDMI 2.0, 3G-SDI, IP Streaming
- Compression Formats: H.264, H.265, MJPEG
- Audio Input: 3.5mm Line-In
- Network Protocols: RTSP, RTMP, SRT, ONVIF, NDI|HX
- Control Options: RS-232, RS-422, IP (VISCA, PELCO-D/P)
- Power Supply: PoE+ (IEEE 802.3at), DC 12V
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Weight: Approx. 1.8 kg (3.97 lbs)
- Dimensions: 160mm × 190mm × 200mm (6.3" × 7.48" × 7.87")
