Fujinon 4K-compatible broadcast Zoom lens

by Fujinon
Availability:
In stock 3-5 days
Do you have questions about pricing?
Trusted by broadcasters, venues, and production teams across Canada.

SKU: UA70X8-7BESM

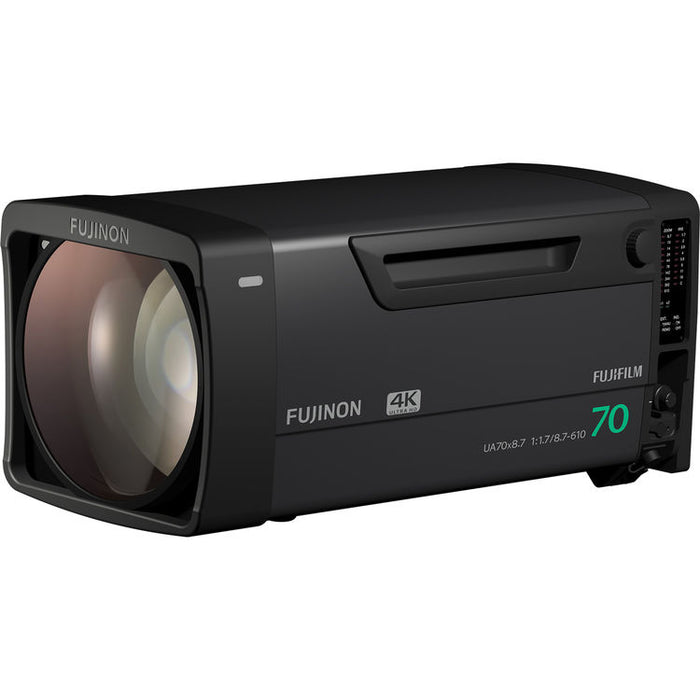

The Fujinon UA70x8.7BESM is a high-performance 4K-compatible broadcast box zoom lens designed for 2/3-inch professional camera systems. Featuring a powerful 70x zoom range from 8.7mm to 610mm, this lens delivers exceptional versatility for capturing both wide-angle shots and long-distance telephoto images, making it ideal for live sports, stadium events, concerts, and large-scale broadcast productions.

Built for UHD and HDR workflows, the lens provides outstanding optical performance with high resolution, strong contrast, and consistent edge-to-edge clarity across the entire zoom range. Its advanced optical design minimizes chromatic aberration and distortion, ensuring accurate and reliable image reproduction even at extreme focal lengths.

The integrated 2x extender expands the focal range to 17.4mm to 1220mm, allowing operators to capture distant subjects with remarkable detail without changing lenses. Combined with a high-performance digital servo system, the lens offers smooth and precise control over zoom, focus, and iris functions, supporting demanding live production environments.

Designed as a box-style lens for tripod and pedestal-mounted operation, the UA70x8.7BESM provides the stability, control, and durability required for professional broadcast workflows, making it a dependable solution for long-range capture in high-end production settings.

The Key Features of the Fujinon UA70x8.7BESM:

  • 70x box-style zoom lens for 2/3-inch 4K UHD broadcast camera systems
  • 8.7mm to 610mm focal length range for wide to extreme telephoto coverage
  • Built-in 2x extender expands range to 17.4mm to 1220mm
  • 4K-compatible optical performance with high resolution and contrast
  • High-performance digital servo system for precise zoom, focus, and iris control
  • Designed for sports, stadiums, concerts, and large venue production
  • Advanced optical design minimizes chromatic aberration and distortion
  • Stable box lens construction for tripod and pedestal-mounted operation
  • Supports UHD and HDR broadcast workflows
  • Ideal for long-range capture in professional broadcast environments

The Detailed Specifications for the Fujinon UA70x8.7BESM:

  • Model: UA70x8.7BESM
  • Series: UA Series 4K
  • Lens Type: Box-style broadcast zoom lens
  • Camera Format: 2/3-inch
  • Focal Length (1x): 8.7mm – 610mm
  • Focal Length (2x Extender): 17.4mm – 1220mm
  • Zoom Ratio: 70x
  • Extender: Built-in 2x
  • Maximum Relative Aperture: F1.7 (8.7–300mm), F3.8 (610mm)
  • Minimum Object Distance: 3.0m
  • Angular Field of View (16:9): 58.5° x 34.5° (wide) to 0.8° x 0.5° (tele)
  • Iris: 9-blade diaphragm
  • Drive Unit: Digital servo
  • Filter System: Drop-in filter
  • Dimensions: Approx. 260mm x 600mm (width x length)
  • Weight: Approx. 22kg
