Fujinon UA80x9BESM-S35 UA Series 80x 4K UHD Broadcast Zoom Lens

by Fujinon
Availability:
In stock 3-5 days
Do you have questions about pricing?
Trusted by broadcasters, venues, and production teams across Canada.

SKU: UA80x9BESM-S35

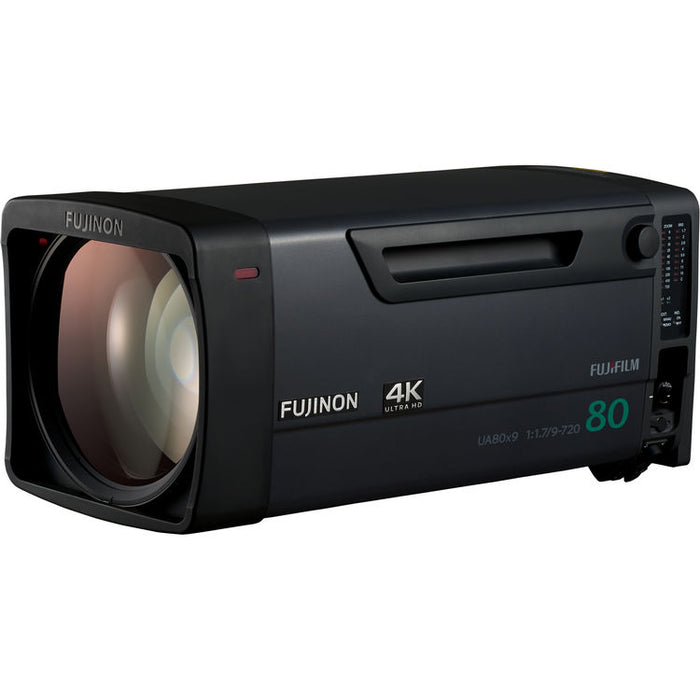

The Fujinon UA80x9BESM-S35 is a high-performance 4K UHD broadcast box lens designed for 2/3-inch professional camera systems, delivering exceptional zoom capability and image quality for large-scale production environments. With an impressive 80x zoom range from 9mm to 720mm, this lens is engineered for long-distance capture in demanding applications such as live sports, stadium events, concerts, and broadcast production where extreme reach and precision are essential.

Built for advanced UHD and HDR workflows, the UA80x9BESM-S35 provides outstanding optical performance with high resolution, excellent contrast, and consistent edge-to-edge clarity across the entire zoom range. Its sophisticated optical design minimizes chromatic aberration and distortion, ensuring clean, accurate image reproduction even at extreme telephoto distances.

The integrated 2x extender expands the focal range to an extraordinary 18mm to 1440mm, allowing operators to capture distant subjects with incredible detail without changing lenses. Combined with a high-performance digital servo system, the lens delivers smooth and precise control over zoom, focus, and iris functions, making it ideal for fast-paced live production environments.

Designed as a box-style lens for pedestal and tripod-mounted operation, the UA80x9BESM-S35 offers the durability, stability, and control required for professional broadcast workflows, making it a top-tier solution for broadcasters and production teams working in large venues and long-range shooting scenarios.

The Key Features of the Fujinon UA80x9BESM-S35:

  • 80x box-style zoom lens for 2/3-inch 4K UHD broadcast camera systems
  • 9mm to 720mm focal length range for wide to extreme telephoto coverage
  • Built-in 2x extender expands range to 18mm to 1440mm
  • Advanced 4K optical performance with high resolution and contrast
  • Optimized for sports, stadiums, concerts, and large venue production
  • High-performance digital servo system for precise zoom, focus, and iris control
  • Exceptional long-range capture capability for broadcast applications
  • Advanced optical design minimizes chromatic aberration and distortion
  • Stable and durable box lens construction for tripod and pedestal mounting
  • Supports UHD and HDR production workflows

The Detailed Specifications for the Fujinon UA80x9BESM-S35

  • Series: UA Series 4K UHD
  • Lens Type: Box-style broadcast zoom lens
  • Camera Format: 2/3-inch
  • Focal Length (1x): 9mm – 720mm
  • Focal Length (2x Extender): 18mm – 1440mm
  • Zoom Ratio: 80x
  • Extender: Built-in 2x
  • Maximum Relative Aperture: F1.7 (9–400mm), F3.9 (720mm)
  • Minimum Object Distance: 3.0m
  • Angular Field of View (16:9): 59.5° x 35.3° (wide) to 0.7° x 0.4° (tele)
  • Iris: 9-blade diaphragm
  • Drive Unit: Digital servo (S35)
  • Filter Thread: Drop-in filter system
  • Dimensions: Approx. 264mm x 620mm (width x length)
  • Weight: Approx. 23kg
