Fujinon XA77x9.5BESM-E-DIGI 2/3" 77x Studio/Field Box Zoom Lens with OIS & 2x Extender

by Fujinon
Availability:
In stock 3-5 days
Do you have questions about pricing?
Trusted by broadcasters, venues, and production teams across Canada.

SKU: XA77X9-5BESM-E-DIGI

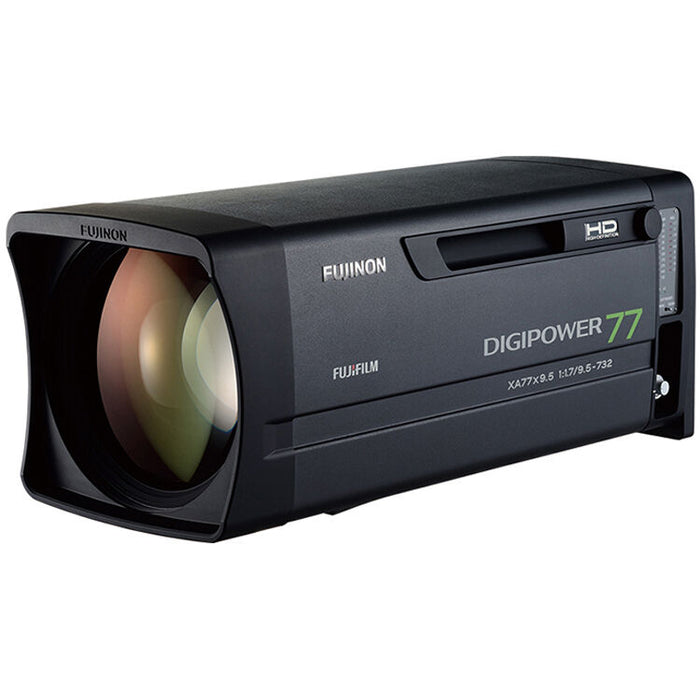

The Fujinon XA77x9.5BESM-E-DIGI is a high-performance studio and field broadcast box lens designed for 2/3-inch professional camera systems. Featuring a powerful 77x zoom range from 9.5mm to 732mm, this lens delivers exceptional flexibility for capturing everything from wide-angle shots to extreme telephoto images, making it ideal for sports, live events, concerts, and large-scale broadcast productions.

Built for professional HD broadcast workflows, the lens provides sharp, high-contrast imagery with consistent clarity across the entire zoom range. Its advanced optical design minimizes chromatic aberration and distortion, ensuring accurate and reliable image reproduction even at long focal lengths.

The integrated 2x extender expands the focal range to 19mm to 1464mm, allowing operators to capture distant subjects with remarkable detail without changing lenses. Equipped with optical image stabilization (OIS), the lens effectively reduces camera shake and vibration, which is especially important when shooting at extended focal lengths.

Featuring a high-performance digital servo system, the XA77x9.5BESM-E-DIGI offers smooth and precise control over zoom, focus, and iris functions. Designed for both studio and field use, it delivers the stability, reliability, and operational control required for demanding broadcast environments.

The Key Features of the Fujinon XA77x9.5BESM-E-DIGI :

  • 77x box-style zoom lens for 2/3-inch broadcast camera systems
  • 9.5mm to 732mm focal length range for wide to extreme telephoto coverage
  • Built-in 2x extender expands range to 19mm to 1464mm
  • Optical image stabilization (OIS) reduces vibration and camera shake
  • High-quality optical performance with strong contrast and clarity
  • Digital servo system for smooth and precise zoom, focus, and iris control
  • Designed for studio, sports, and large venue production
  • Advanced optical design minimizes chromatic aberration and distortion
  • Stable box lens construction for tripod and pedestal-mounted operation
  • Reliable performance for professional broadcast workflows

The Detailed Specifications for the Fujinon XA77x9.5BESM-E-DIGI :

  • Model: XA77x9.5BESM-E-DIGI
  • Series: XA Series
  • Lens Type: Studio/field box-style broadcast zoom lens
  • Camera Format: 2/3-inch
  • Focal Length (1x): 9.5mm – 732mm
  • Focal Length (2x Extender): 19mm – 1464mm
  • Zoom Ratio: 77x
  • Extender: Built-in 2x
  • Maximum Relative Aperture: F1.7 (9.5–350mm), F3.4 (732mm)
  • Minimum Object Distance: 3.0m
  • Angular Field of View (16:9): 52.0° x 30.5° (wide) to 0.9° x 0.5° (tele)
  • Iris: 9-blade diaphragm
  • Drive Unit: Digital servo (DIGI)
  • Image Stabilization: Optical image stabilization (OIS)
  • Filter System: Drop-in filter
  • Dimensions: Approx. 260mm x 620mm (width x length)
  • Weight: Approx. 23kg
