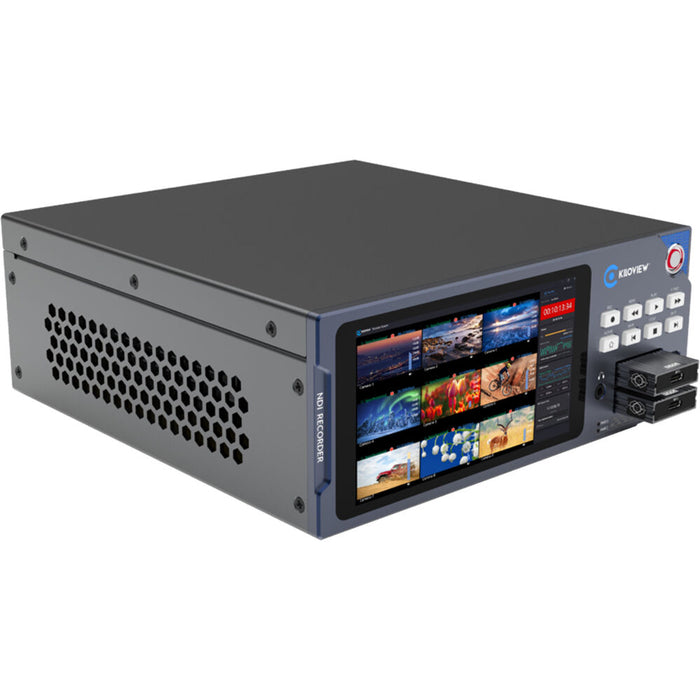

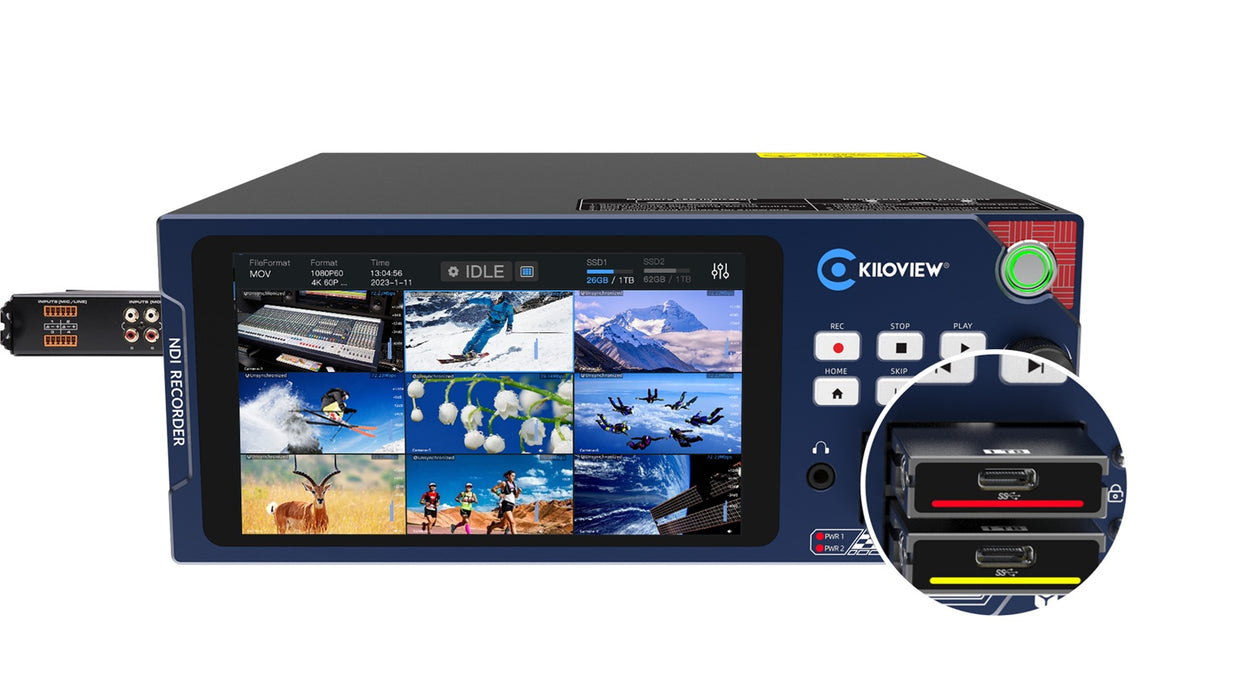

The Kiloview Cube R1 is a professional 9-channel NDI recorder system designed for high-performance video recording. It supports simultaneous recording of up to nine NDI sources in 4K UHD resolution at 60fps, making it ideal for applications like broadcasting, large-screen displays, and video conferencing. The system features dual hot-swappable SSD slots for continuous recording, 10GbE network connectivity for stable data transfer, and a 5.5-inch touchscreen LCD for intuitive monitoring and control. The Cube R1 offers a reliable and flexible solution for handling demanding video workflows in professional environments.

Here are the key features of the Kiloview Cube R1:

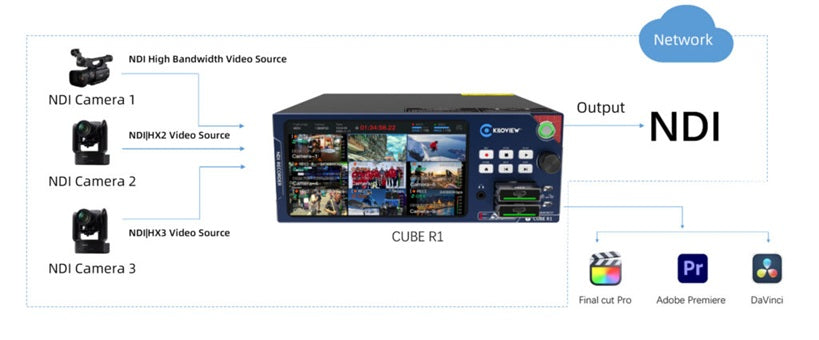

• 9-Channel NDI Recording: Simultaneously records up to nine NDI sources.
• 4K UHD Support: Records at resolutions up to 4K60 for high-quality video capture.
• Dual Hot-Swappable SSD Slots: Allows continuous recording with NVMe SSD compatibility.
• 10GbE Network Connectivity: Ensures stable and high-bandwidth data transfer for smooth operation.
• 5.5-inch Touchscreen LCD: Provides easy monitoring and control with customizable multiview layouts.
• USB-C Interface: Used for data transfer, supporting flexible connectivity.

Here are the detailed specifications of the Kiloview Cube R1:

Recording Channels:

• 9 simultaneous NDI channels

Resolution Support:

• Up to 4K UHD (3840x2160) at 60fps

Video Format:

• NDI (Network Device Interface)

Audio Format:

• Embedded NDI audio

Storage:

• Dual hot-swappable SSD slots (supports NVMe SSDs)
• Storage Capacity: Dependent on SSD used

Network Connectivity:

• Dual 10GbE network ports for high-speed data transfer
• Dual redundant network interfaces for reliability

USB Interface:

• USB-C (for data transfer, no storage expansion support)

Display:

• 5.5-inch touchscreen LCD for control and monitoring
• Customizable multiview layouts for simultaneous preview of multiple sources

Control:

• Web-based user interface for remote control
• Local touchscreen control

Power Supply:

• AC 100-240V, 50/60Hz

Physical Dimensions:

• 19.7 x 7.9 x 1.7 inches (500 x 200 x 43 mm)

Weight:

• Approx. 5.7 lbs (2.6 kg)

Operating Temperature:

• 0°C to 40°C (32°F to 104°F)

Cooling System:

• Active cooling with fan for efficient heat dissipation

These specs highlight the system's advanced capabilities, making it a powerful tool for professional video recording and streaming environments.
