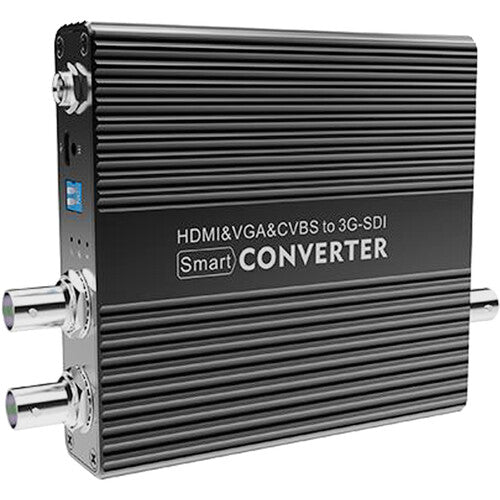

The Kiloview CV190 is a broadcast-grade, multifunctional video converter designed to seamlessly transform HDMI, VGA, and AV (CVBS) signals into SDI outputs. Engineered for professional applications, it offers frame and resolution conversion, image scaling, color adjustment, and enhancement features to ensure superior video quality. This versatile converter is ideal for broadcasting, video conferencing, multimedia advertising, and more.

The Key Features of the Kiloview CV190:

• High Compatibility: Automatically detects and converts HDMI, VGA, and AV (CVBS) inputs, embedding HDMI or analog audio into the SDI signal.
• Dual SDI Outputs: Provides two simultaneous SDI outputs, supporting SD/HD/3G-SDI formats.
• Extended Transmission Distance: Integrated with an enhanced SDI line driver, it ensures transmission distances up to 400m for SD-SDI, 200m for HD-SDI, and 120m for 3G-SDI when using high-quality cables like Belden 1694A.
• Professional Image Processing: Features 10-bit YUV 4:2:2 conversion, professional color adjustment, 3D noise reduction, deinterlacing, and smart resolution/frame rate conversion to maintain broadcast-level image quality.
• Reliable 24/7 Operation: Built with high-quality components to ensure stability and support continuous 24/7 operation. Includes EMC and HDMI testing for high compatibility and reliability.

The Detailed Specifications Kiloview CV190:

Inputs:

• 1× HDMI, 1× VGA, 1× BNC AV (CVBS)
• 1× 3.5mm analog audio

Outputs:

• 2× BNC-SDI (SD/HD/3G)

Supported Resolutions:

• HDMI/VGA: Up to 1080p @ 60Hz
• YPbPr (via VGA): Up to 1080p @ 60Hz
• AV (CVBS): PAL (576i), NTSC (480i)

SDI Transmission Distance (Belden 1694A Cable):

• SD-SDI: 400m, HD-SDI: 200m, 3G-SDI: 120m

Features:

• Frame rate & resolution conversion
• Audio embedding
• 10-bit YUV 4:2:2 processing, 3D noise reduction, deinterlacing

Power & Build:

• Power: 12V/1A, 4W consumption
• Operating Temp: -20°C to 60°C
• Dimensions: 120×100×26mm
• Weight: 315g
