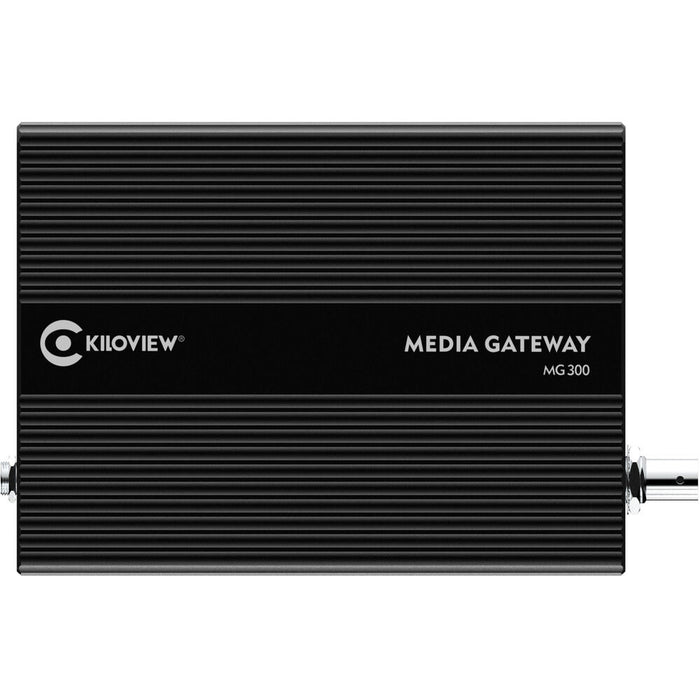

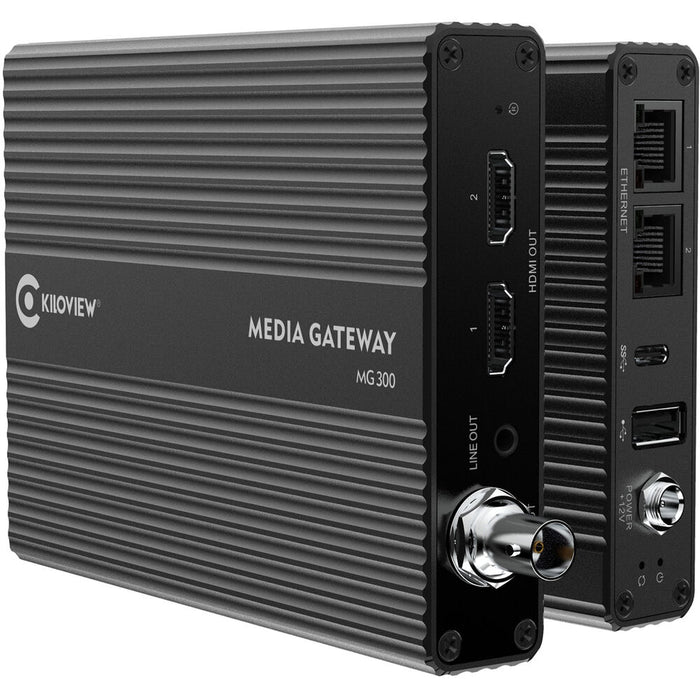

The Kiloview MG300 V2 is a high-performance, embedded, multi-functional IP video media gateway designed to seamlessly bridge various IP protocols. It integrates multi-channel video decoding between NDI|HX, SRT, RTMP, RTSP, TS-UDP, and HLS, outputting to both SDI and HDMI interfaces. This versatile device supports protocol cross-conversion, multi-view output, video image segmentation, and streaming media distribution services, making it an ideal solution for professional video transmission and live streaming applications.

The Key Features of the Kiloview MG300 V2:

• Protocol Compatibility: Supports decoding and cross-conversion among NDI|HX (2.0), SRT, RTMP, RTMPS, RTSP, TS-UDP, and HLS protocols.
• High-Quality Video Output: Delivers up to UHD 4K60 video via HDMI and up to 1080p60 via 3G-SDI outputs.
• Multi-Channel Decoding: Decodes up to 9 channels of 1080p30, 8 channels of 1080p60, or 4 channels of 4Kp30 video simultaneously.
• Powerful IP Stream Function: Allows multi-channel video streams to be republished as a multiview video source with customizable layouts; supports up to 9 channels of IP streaming distribution, with each stream capable of being pushed to up to 4 different targets simultaneously.
• Audio Support: Supports SDI/HDMI embedded audio or 3.5mm analog audio output, as well as audio mixing capabilities.
• Dual Network Ports: Equipped with dual 100M/1000M RJ45 adaptive Ethernet ports for versatile network management.

The Detailed Specifications for the Kiloview MG300 V2:

• Network: 2× 100M/1000M RJ45 Ethernet ports
• Decoding Output: 1× SDI (up to 1080p60), 1× HDMI (up to 4K60)
• Audio: 3.5mm Line in/out, SDI/HDMI embedded audio
• USB: 1× USB 3.0 Type-A
• Supported Protocols: NDI|HX (2.0), SRT, RTSP, RTMP, TS-UDP, HLS
• Protocol Conversion: Up to 9 channels of 1080p video
• Streaming Distribution: 50 RTSP or 36 RTMP/SRT streams (600Mbps max)
• Decoding Capacity: 4× 4K30, 8× 1080p60, or 9× 1080p30
• Video Decoding: H.264, H.265
• Output Formats: SDI: 1080p60/50, 1080i60/50, 720p60/50, 576i, 480i, HDMI: 4K60/30, 1080p60/50/30, 720p60/50
• Bitrate: Video (128Kbps – 40Mbps), Audio (AAC: 8Kbps – 320Kbps)
• Decoding Delay: ≤200ms
• Multi-View Display: 1-9 split layout with re-encoding support
• Management: Web-based & remote control
• Power: 12V DC / PoE support
• Operating Temperature: -20°C to 45°C
