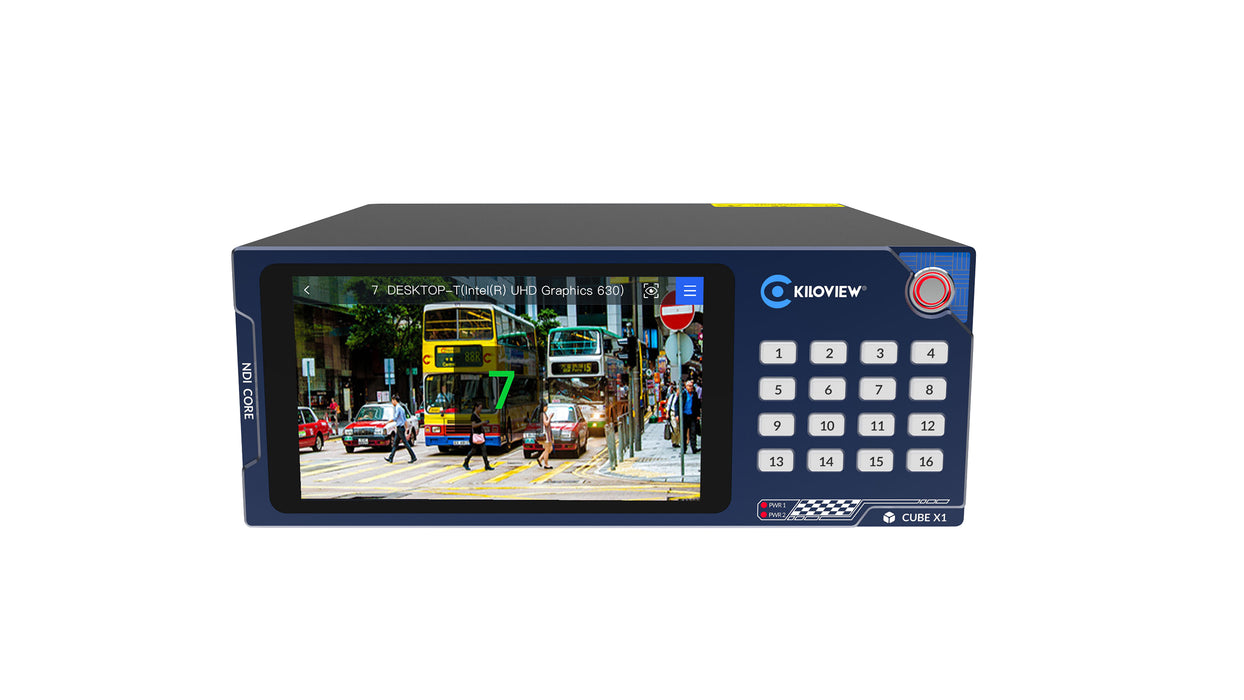

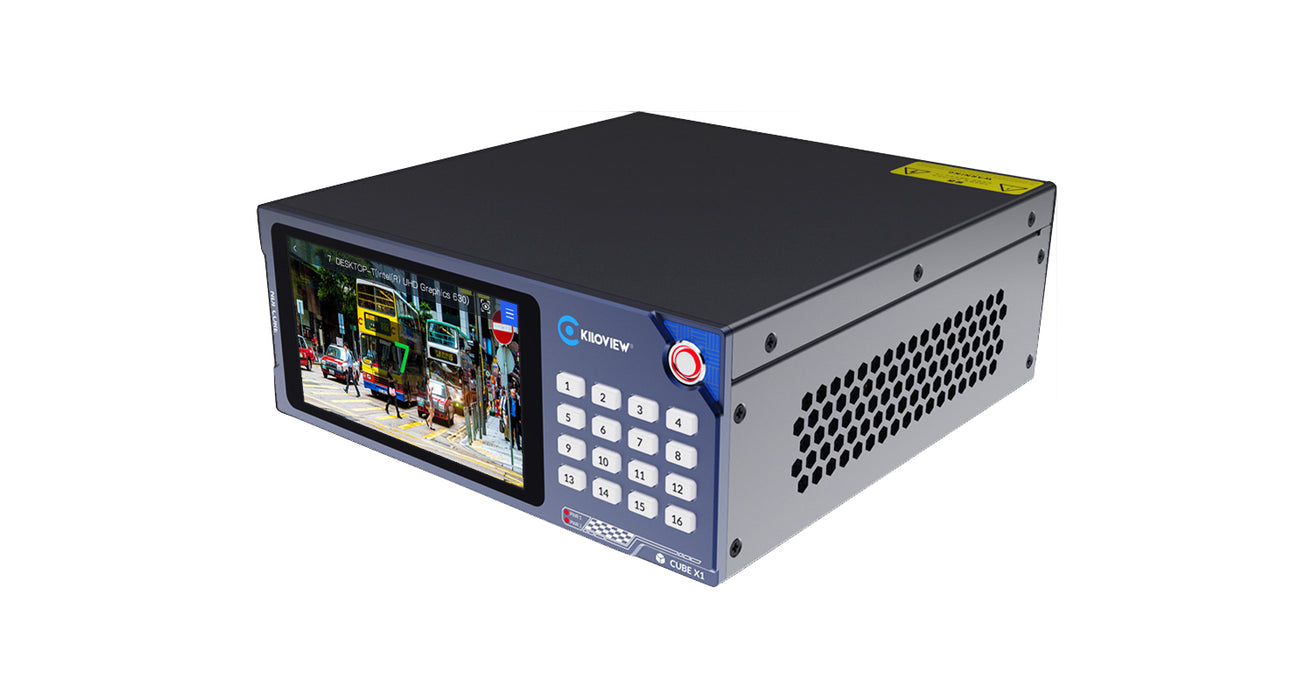

The Kiloview CUBE X1 is a compact NDI distribution system designed for unified scheduling, switching, distribution, and management of NDI signals. It supports up to 16 channels of NDI inputs and 32 channels of NDI outputs, including both high-bandwidth NDI and NDI|HX formats. Equipped with dual 10GbE SFP+ ports and a 5.5-inch touchscreen, the CUBE X1 offers seamless switching without lag or black screens, making it suitable for professional broadcasting, live events, and various IP-based video workflows.

The Kiloview CUBE X1 is a compact, high-performance NDI distribution system designed for professional broadcasting and live production environments. Below is a detailed breakdown of its specifications:

Processing Capabilities:

• Processor: 8-core ARM64 high-performance processor.
• NDI Support:

Video Resolution Support:

• Input Resolutions:
• Output Resolutions:

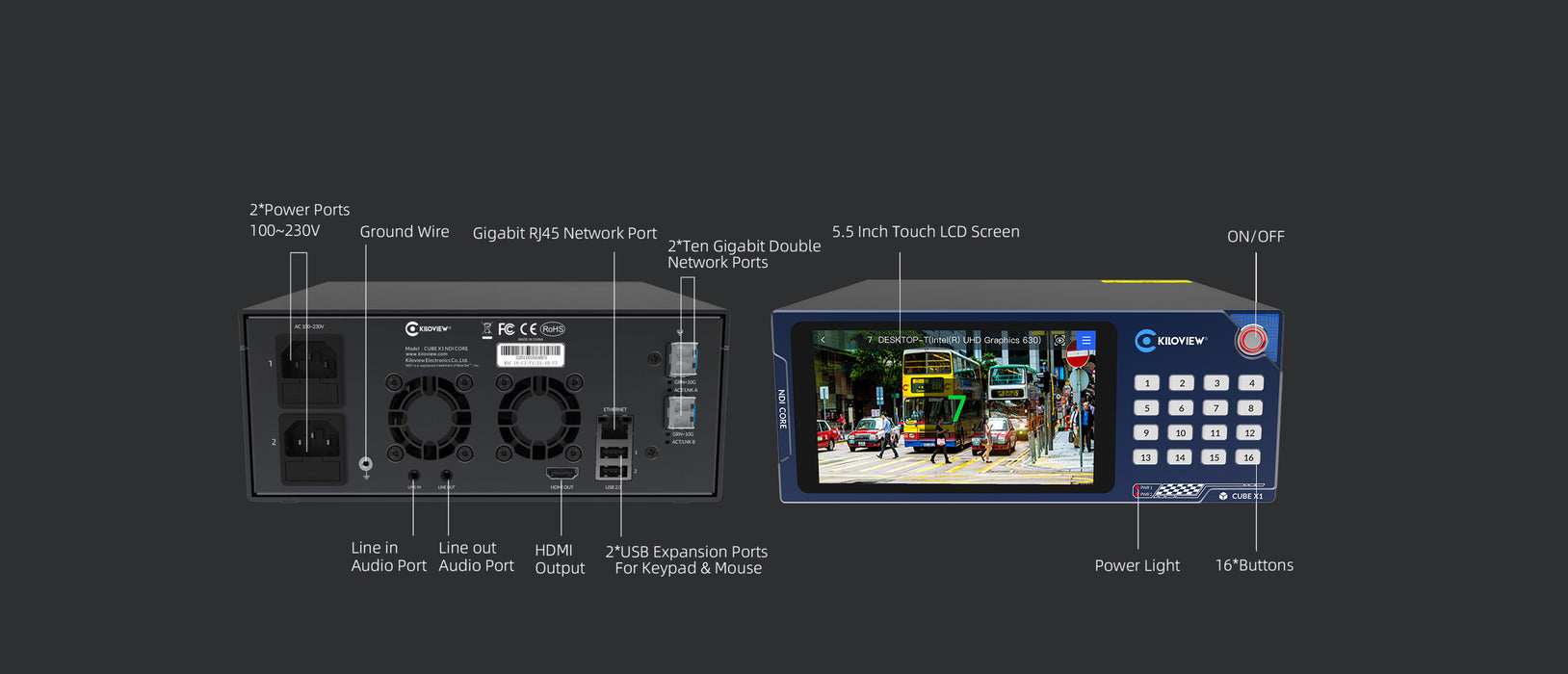

Network Interfaces:

• 2× 10GbE SFP+ fiber optic Ethernet interfaces.
• 1× 1GbE RJ45 Ethernet interface.

Audio Interfaces:

• 1× 3.5mm Line-In.
• 1× 3.5mm Line-Out.

USB Interfaces:

• 2× USB 2.0 (Type-A) ports.

Display and Controls:

• 5.5-inch LCD capacitive touchscreen with a resolution of 1920×1080 at 50Hz.
• 16 dual-color numeric buttons for quick source selection and switching.

HDMI Interface:

• 1× HDMI 2.0 output.

Power Supply:

• Dual AC 100–230V redundant hot-swappable power supplies.

Physical Dimensions and Weight:

• Dimensions: 220.00 mm (W) × 231.45 mm (D) × 88.00 mm (H).
• Weight: 1.88 kg.

Environmental Specifications:

• Operating Temperature: -10°C to 55°C (14°F to 131°F).
• Storage Temperature: -20°C to 65°C (-4°F to 149°F).

Additional Features:

• Redundant dual power supplies enhance system reliability.
• Compact half-width 2RU design allows for flexible installation, with the option to mount two units side by side in a standard 2RU rack space.
• Low power consumption, with overall power usage not exceeding 20W under full load.
• Intelligent active cooling system ensures efficient heat dissipation.
• Reinforced structural design provides excellent shock and drop resistance.

These comprehensive specifications make the Kiloview CUBE X1 a versatile and reliable solution for managing NDI workflows in various professional settings.

Video Input/Output

• Input: HDMI 2.0 (up to 4Kp60)
• Output: HDMI 2.0 (up to 4Kp60)
• HDMI Loop-Out: Supported for local monitoring

NDI Support

• NDI Protocols: Full NDI and NDI|HX (NDI 5 supported)
• Encoding/Decoding:
• Encode HDMI to NDI and NDI|HX
• Decode NDI and NDI|HX to HDMI

Audio

• Embedded Audio: Supported via HDMI
• External Audio:
• 3.5mm line in
• 3.5mm line out

Network Connectivity

• Ethernet: 1x Gigabit Ethernet port
• PoE (Power over Ethernet): Supported for simplified power and connectivity

Video Resolution

• Input/Output Resolutions:
• Up to 4Kp60
• Backward compatibility with HD and lower resolutions

Latency

• Ultra-Low Latency: Less than 80ms in typical workflows

Compression Formats

• NDI: Full-bandwidth NDI
• NDI|HX: Low-bandwidth for efficient streaming

Streaming Protocols

• NDI, NDI|HX, RTMP, RTMPS, SRT, HLS, TS over UDP, RTP

Power

• Power Supply: DC 12V or PoE (IEEE 802.3af)
• Power Consumption: <15W

Control & Monitoring

• Configuration: Web-based interface accessible via a browser
• Firmware Upgrade: Supported via the web interface

Physical Specifications

• Dimensions: 120mm x 84mm x 25mm (4.72 x 3.3 x 0.98 inches)
• Weight: Approx. 280g (9.88 oz)

Environmental

• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Humidity: 20% to 70% (non-condensing)

Included Accessories

• Power adapter (12V DC)
• Quick Start Guide

The Kiloview N60 is a robust, feature-packed NDI converter designed for professional-grade video production and broadcasting workflows.
