The Kiloview NDI Recorder is a professional solution designed for capturing multiple NDI video streams simultaneously. It supports recording up to 20 NDI sources in high-quality 4K resolution at 60 frames per second. This versatile recorder works with both NDI High Bandwidth and NDI HX formats, offering flexibility for various production needs. It provides real-time multi-view monitoring, automatic file splitting to prevent frame loss, and customizable storage options. Ideal for live events, broadcasting, and studio environments, the Kiloview NDI Recorder ensures reliable, synchronized video capture for demanding production workflows.

Here are the key features of the Kiloview NDI Recorder:

• Multi-Source Recording: Capture up to 20 NDI sources simultaneously.
• 4K Recording: Supports 4K resolution at 60fps for high-quality video capture.
• NDI High Bandwidth & NDI HX Support: Compatible with both NDI High Bandwidth and NDI HX formats.
• Flexible Storage Options: Save recordings in MOV format to SSDs, Thunderbolt drives, or NAS systems.
• Real-Time Multi-View Monitoring: Customizable multi-view layouts for up to 20 video sources.
• Automatic File Splitting: Prevents frame loss by starting a new file when the current file reaches its maximum size.
• Synchronization: Supports NTP for synchronized recording across multiple sources.
• Reliable & Continuous Operation: Designed for uninterrupted, professional-level video production.

Here are the detailed specifications of the Kiloview NDI Recorder:

Video Inputs:

• Up to 20 NDI sources can be recorded simultaneously.
• Supports NDI High Bandwidth and NDI HX formats.

Resolution:

• Supports up to 4K resolution at 60fps for high-quality recording.

Storage Options:

• Records in MOV file format.
• Compatible with local SSDs, Thunderbolt drives, or NAS systems.
• Fixed-size or fixed-length recording files are supported.

Network Interface:

• Dual 10G X520-DA 2 fiber optic network cards (SFP+) for high-speed NDI stream capture.

Synchronization:

• Self-defined NTP server for synchronization.
• Kiloview devices can sync with one-click.

Recording Features:

• Automatic file splitting to prevent frame loss.
• Continuous operation with file locking to avoid interruptions.

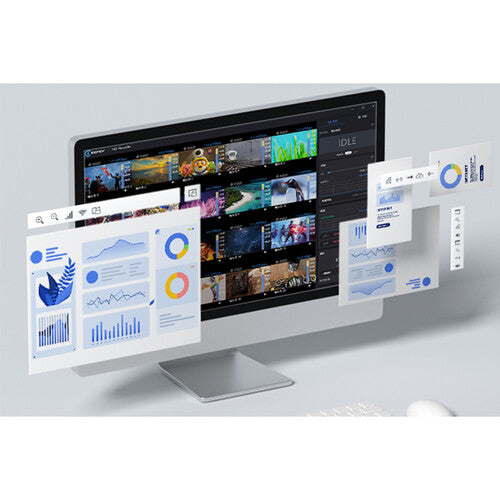

• Real-time monitoring with customizable multi-view layouts (1, 4, 9, 16, or 20 views).

System Requirements (Recommended):

• CPU: Intel Core i7-11700/K, 8-core, 16-thread processor.
• Memory: 32GB (16GB x 2) DDR4 3200 Desktop Memory Module.
• Storage: 256GB SSD or higher for optimal performance.

File Format:

• MOV for compatibility with most video editing and production tools.

Operating System:

• Compatible with Windows and macOS.

These specifications provide an overview of the Kiloview NDI Recorder's powerful capabilities and requirements for professional video production environments.
